Silicon Graphics

Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000

(No reviews yet) Write a Review
SKU:
36474
MPN:
030-0742-001
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout
  • Silicon Graphics 030-0742-001 512X2 Power Module Board — top-angled view showing four large aluminum heatsinks and green PCB on antistatic foam

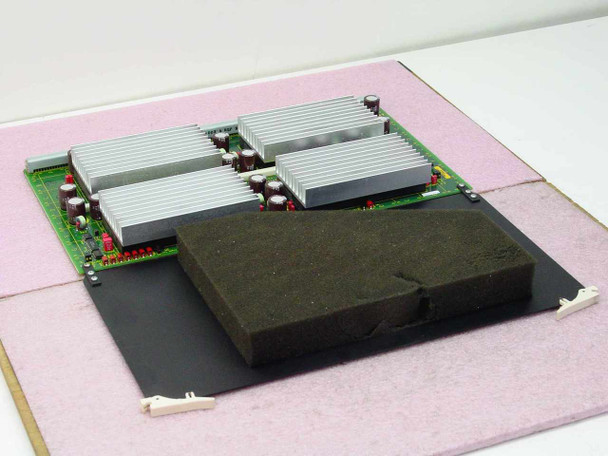

  • Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — opposite top-angle view with foam pad shifted, showing full board extent and edge connectors

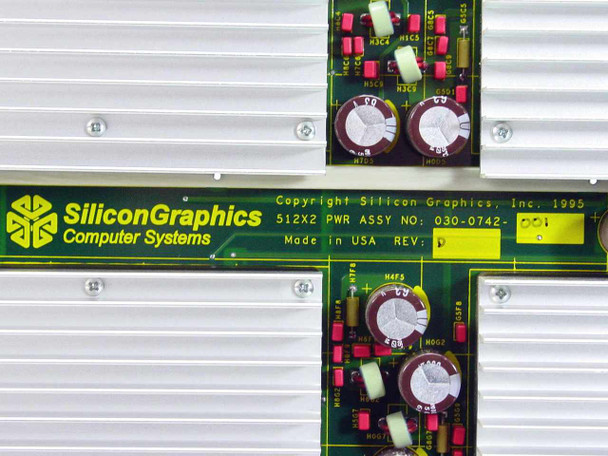

  • Silicon Graphics 030-0742-001 close-up of board label — reads 512X2 PWR ASSY NO: 030-0742-001, Copyright Silicon Graphics Inc. 1995, Made in USA, REV: D

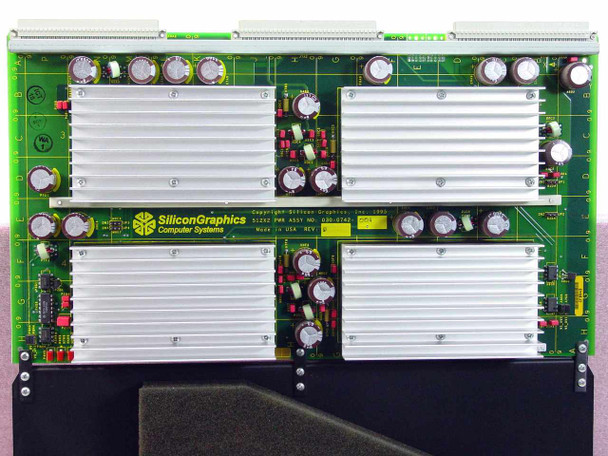

  • Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — front-face view showing all four heatsink modules, electrolytic capacitors, and dual edge connector rows

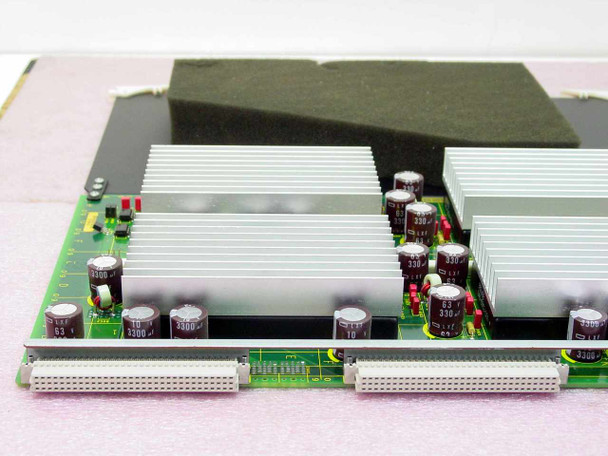

  • Silicon Graphics 030-0742-001 512X2 Power Module Board — detail view of two heatsinks with large electrolytic capacitors (3300 µF, 330 µF) and PCB components

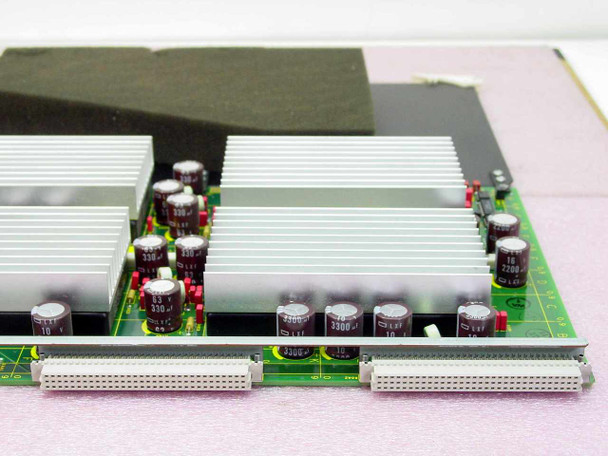

  • Silicon Graphics 030-0742-001 512X2 Power Module Board — additional detail view of heatsink section and dual edge connector fingers at board bottom
$500.00
Was: $1,000.00
Current Stock: 1

Sold Out

Description

Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000

The Silicon Graphics 030-0742-001 is a 512X2 Power Module Assembly board designed for the SGI Onyx 10000 high-performance server platform. The board carries four large aluminum heatsink-mounted power conversion modules supported by an array of high-value electrolytic capacitors, and interfaces to the system via dual multi-pin edge connectors. The label visible on the board reads: 512X2 PWR ASSY NO: 030-0742-001, Copyright Silicon Graphics Inc. 1995, Made in USA, Rev D.

Specifications & What's Included

  • Manufacturer: Silicon Graphics (SGI)
  • Part Number: 030-0742-001
  • Assembly: 512X2 PWR Module Board
  • Revision: Rev D
  • Copyright / Year: Silicon Graphics Inc., 1995
  • Country of Origin: Made in USA
  • Dimensions: 16.5" x 15" x 1.5"
  • Compatible System: SGI Onyx 10000 Server
  • Includes: Board only

Applications

The SGI Onyx 10000 was a high-end visualization and compute server produced by Silicon Graphics in the mid-to-late 1990s, used in technical computing, visual simulation, and scientific workloads requiring substantial parallel processing. Power module boards of this type distribute regulated power within the system chassis to downstream compute and memory subsystems. This board is relevant to organizations maintaining legacy SGI Onyx infrastructure, or to repair depots and parts suppliers seeking original SGI power assembly components for system restoration.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Silicon Graphics SGI 030-0742-001 512X2 Power Module Board has been inspected and is in good used condition. It was pulled from a working SGI Onyx 10000 server environment where it was actively in use and functional. The board presents cleanly — the PCB is free of visible damage, the four aluminum heatsink assemblies are intact and securely mounted, and the edge connectors appear in good shape with no bent or damaged pins observed in the photos. Some light handling marks and minor surface dust consistent with service use are present, but there is no evidence of burns, corrosion, or physical damage. Please view our complete photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Silicon Graphics (SGI)
Model:
030-0742-001
MPN:
030-0742-001
SKU:
36474
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Form Factor:
PCB Module / Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Assembly Description:
512X2 PWR ASSY — Power Module Board
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Application:
Server Power Distribution Module
Product Line:
SGI Onyx Series
Condition Notes:
This SGI 030-0742-001 512X2 Power Module Board is in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Heatsinks intact, edge connectors appear undamaged. Please contact us with any questions.
View AllClose

Related Products

Related Products

Silicon Graphics 303X2 030-0741-001 Power Module Board top view with heat sinks and foam packing on anti-static mat Silicon Graphics 303X2 Power Module Board angled view showing dual heat sinks and shielded transformer cans on green PCB
Add to Cart
Quick view

Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D

Silicon Graphics

$750.00
Was: $1,500.00
Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D Power module board designed for the SGI Onyx 10000 server. This card manages power distribution and regulation within the...
36473
SKU:
36473
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
303X2
MPN:
030-0741-001
Secondary Model:
303X2 PWR ASSY
Hardware Revision:
Rev D
SKU:
36473
Condition:
Used – Pulled from Working Environment
Seller Notes:
Power module board only; no chassis or server included.
Form Factor:
Card / Module Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Board Type:
Power Module Board
Copyright Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Condition Notes:
This Silicon Graphics 303X2 Power Module Board (030-0741-001) Rev D has been inspected and is in good used condition. Pulled from a working SGI Onyx 10000 server. PCB, heat sinks, and connectors appear intact. Please contact us with any questions.
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – top view showing dual black and silver heatsink arrays on green PCB with foam anti-static pads Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – alternate top angle showing full board layout with heatsinks and edge connectors, foam pad at front
Add to Cart
Quick view

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000

Silicon Graphics

$900.00
Was: $1,800.00
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000 Power distribution and management module board for SGI Onyx 10000 high-performance computing servers. This Rev B assembly...
36472
SKU:
36472
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics
Model:
305X2
MPN:
030-0743-002
SKU:
36472
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no cables or accessories included.
Form Factor:
Card / Module
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Hardware Revision:
Rev B
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 14.5" x 1.5"
Assembly Number:
030-0743-002
Application:
SGI Onyx 10000 high-performance server power distribution
Board Type:
Power Module / Power Assembly Board
Condition Notes:
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B. Inspected, in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use and functional. PCB and heatsinks intact. Please contact us with questions.

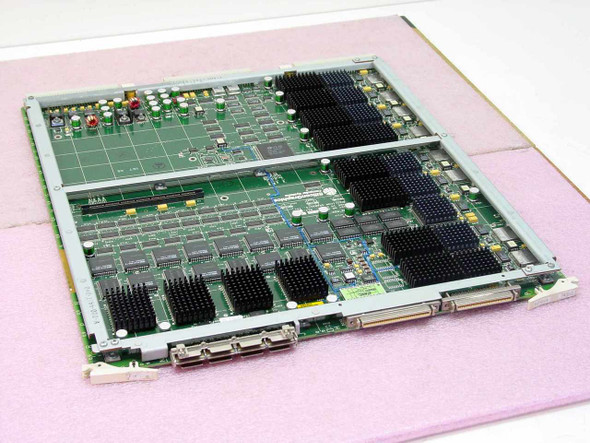

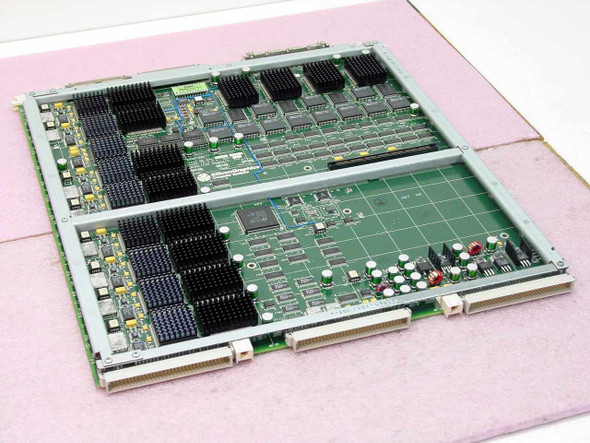

Silicon Graphics KONA-DG4 030-0687-004 module board top view showing full PCB layout with heatsinks and edge connectors on pink anti-static foam Silicon Graphics KONA-DG4 module boards — two units shown side by side on pink anti-static foam, top view
