Silicon Graphics

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000

(No reviews yet) Write a Review
SKU:
36472
MPN:
030-0743-002
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout
  • Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – top view showing dual black and silver heatsink arrays on green PCB with foam anti-static pads
  • Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – alternate top angle showing full board layout with heatsinks and edge connectors, foam pad at front

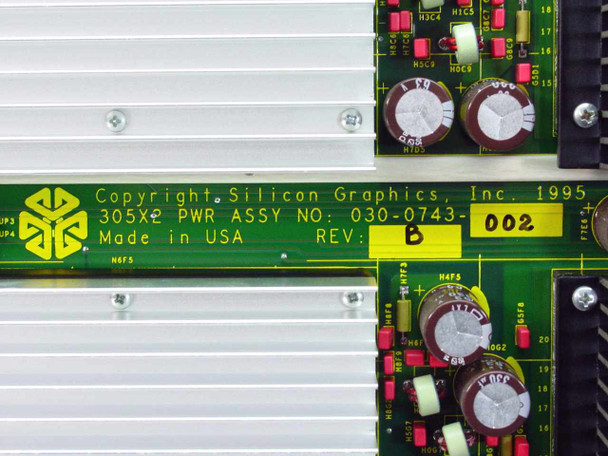

  • Silicon Graphics 305X2 PWR board PCB label close-up showing part number 030-0743-002, Rev B, Made in USA, Copyright Silicon Graphics Inc. 1995

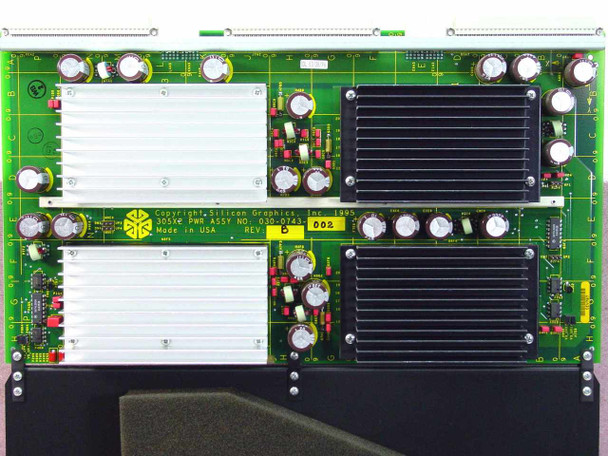

  • Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – full board face-on view showing four heatsink assemblies, capacitor arrays, and PCB label

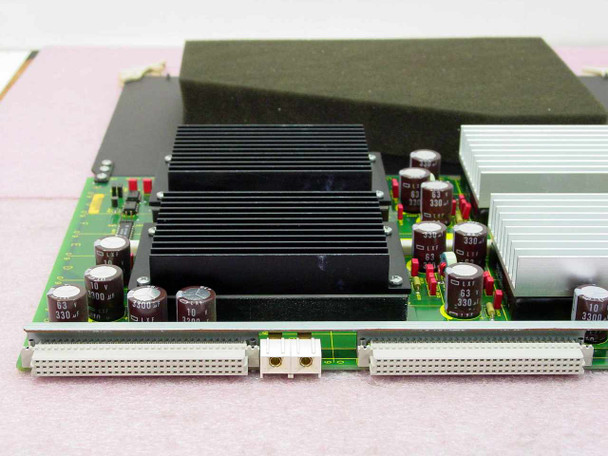

  • Silicon Graphics SGI 305X2 Power Module Board – close-up of edge connector area showing dual card-edge connectors and capacitor cluster near black heatsink
  • Silicon Graphics SGI 305X2 Power Module Board – close-up of silver heatsink pair and surrounding capacitor array near card-edge connectors
$900.00
Was: $1,800.00
Current Stock: 1

Sold Out

Description

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000

Power distribution and management module board for SGI Onyx 10000 high-performance computing servers. This Rev B assembly handles power regulation and delivery across the system.

Specifications & What's Included

  • Model: 305X2 Power Module
  • Part Number: 030-0743-002
  • Revision: B (1995)
  • Dimensions: 16.5" x 14.5" x 1.5"
  • Form Factor: Card/Module Assembly
  • Board only; no cables or accessories included

Applications

The SGI Onyx 10000 was deployed in scientific computing, visualization, and engineering workloads during the mid-to-late 1990s and early 2000s. This power module was integral to the Onyx 10000's multi-processor architecture, managing power distribution to CPU and memory subsystems. Compatible with SGI Onyx 10000 servers using the 305X2 power assembly specification.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Silicon Graphics SGI 305X2 Power Module Board (030-0743-002, Rev B) has been inspected and is in good used condition. The board was pulled from a working SGI Onyx 10000 server environment where it was actively in use and functional. The PCB surface is clean with no visible corrosion or damage; both the black and silver heatsink assemblies are intact and securely mounted. The card-edge connectors appear clean and undamaged. Normal minor handling marks are visible consistent with previous installation. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Silicon Graphics
Model:
305X2
MPN:
030-0743-002
SKU:
36472
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no cables or accessories included.
Form Factor:
Card / Module
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Hardware Revision:
Rev B
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 14.5" x 1.5"
Assembly Number:
030-0743-002
Application:
SGI Onyx 10000 high-performance server power distribution
Board Type:
Power Module / Power Assembly Board
Condition Notes:
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B. Inspected, in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use and functional. PCB and heatsinks intact. Please contact us with questions.
View AllClose

Related Products

Related Products

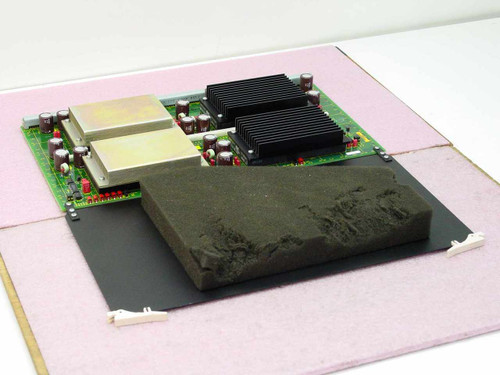

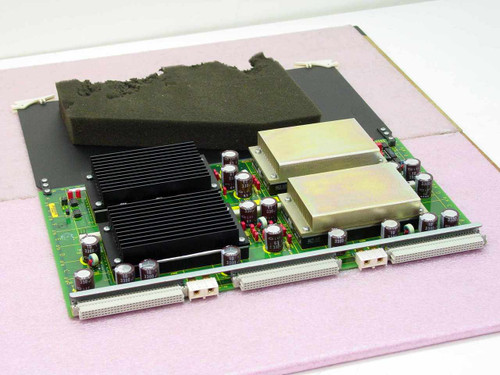

Silicon Graphics 303X2 030-0741-001 Power Module Board top view with heat sinks and foam packing on anti-static mat Silicon Graphics 303X2 Power Module Board angled view showing dual heat sinks and shielded transformer cans on green PCB
Add to Cart
Quick view

Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D

Silicon Graphics

$750.00
Was: $1,500.00
Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D Power module board designed for the SGI Onyx 10000 server. This card manages power distribution and regulation within the...
36473
SKU:
36473
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
303X2
MPN:
030-0741-001
Secondary Model:
303X2 PWR ASSY
Hardware Revision:
Rev D
SKU:
36473
Condition:
Used – Pulled from Working Environment
Seller Notes:
Power module board only; no chassis or server included.
Form Factor:
Card / Module Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Board Type:
Power Module Board
Copyright Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Condition Notes:
This Silicon Graphics 303X2 Power Module Board (030-0741-001) Rev D has been inspected and is in good used condition. Pulled from a working SGI Onyx 10000 server. PCB, heat sinks, and connectors appear intact. Please contact us with any questions.

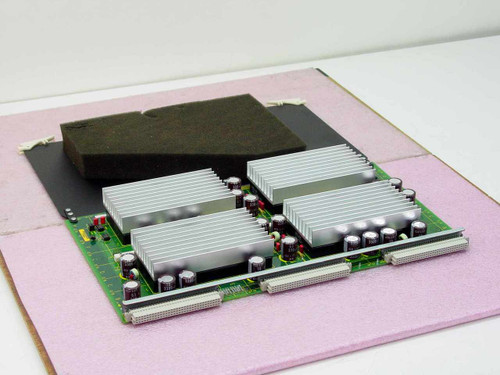

Silicon Graphics 030-0742-001 512X2 Power Module Board — top-angled view showing four large aluminum heatsinks and green PCB on antistatic foam Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — opposite top-angle view with foam pad shifted, showing full board extent and edge connectors
Add to Cart
Quick view

Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000

Silicon Graphics

$500.00
Was: $1,000.00
Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000 The Silicon Graphics 030-0742-001 is a 512X2 Power Module Assembly board designed for the SGI Onyx 10000 high-performance server...
36474
SKU:
36474
Availability:
Usually ships within 1–2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
030-0742-001
MPN:
030-0742-001
SKU:
36474
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Form Factor:
PCB Module / Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Assembly Description:
512X2 PWR ASSY — Power Module Board
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Application:
Server Power Distribution Module
Product Line:
SGI Onyx Series
Condition Notes:
This SGI 030-0742-001 512X2 Power Module Board is in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Heatsinks intact, edge connectors appear undamaged. Please contact us with any questions.

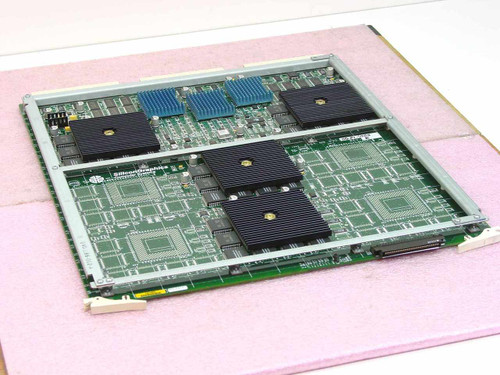

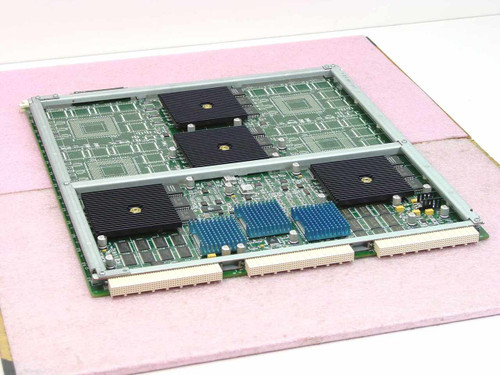

SGI 030-0681-003 GE12-4 PCA Module Board for Silicon Graphics Onyx 10000 – top-side component view showing heatsinks and ICs SGI 030-0681-003 GE12-4 PCA Module Board – reverse top-side view showing additional heatsinks and edge connectors
Add to Cart
Quick view

SGI 030-0681-003 GE12-4 PCA Module Board Silicon Graphics Onyx 10000 Rev E

SGI

$200.00
Was: $500.00
SGI 030-0681-003 GE12-4 PCA Module Board Silicon Graphics Onyx 10000 Rev E PCA module board for Silicon Graphics Onyx 10000 servers. This card was pulled from active hardware and remains functional...
36465
SKU:
36465
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Brand:
SGI (Silicon Graphics)
Model:
GE12-4
MPN:
030-0681-003
SKU:
36465
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from SGI Onyx 10000 server
Form Factor:
Card / Module
Compatible With:
Silicon Graphics Onyx 10000 Server
Hardware Revision:
Rev E
Dimensions:
16.25" x 15" x 0.75"
Country of Manufacture:
United States
Condition Notes:
SGI 030-0681-003 GE12-4 PCA Module Board for Onyx 10000. Inspected and in good used condition. Pulled from a working environment where it was actively in use and functional. Board and connectors appear intact with normal wear.

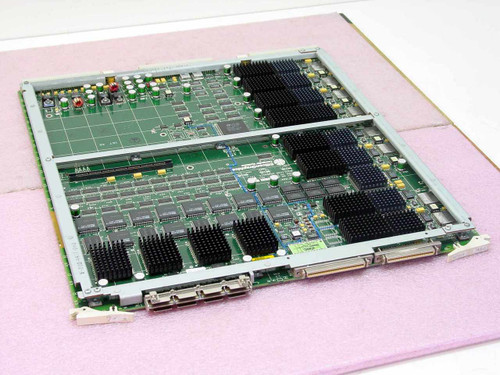

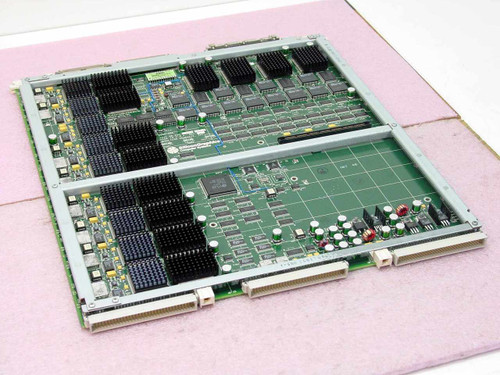

Silicon Graphics KONA-DG4 030-0687-004 module board top view showing full PCB layout with heatsinks and edge connectors on pink anti-static foam Silicon Graphics KONA-DG4 module boards — two units shown side by side on pink anti-static foam, top view
