SGI 030-0681-003 GE12-4 PCA Module Board Silicon Graphics Onyx 10000 Rev E

(No reviews yet) Write a Review
SKU:
36465
MPN:
030-0681-003
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • SGI 030-0681-003 GE12-4 PCA Module Board for Silicon Graphics Onyx 10000 – top-side component view showing heatsinks and ICs

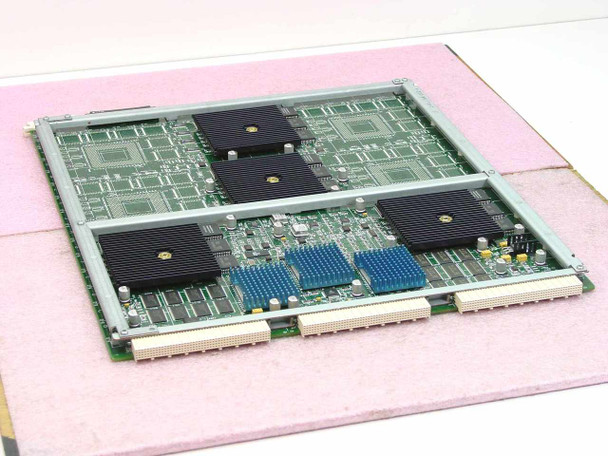

  • SGI 030-0681-003 GE12-4 PCA Module Board – reverse top-side view showing additional heatsinks and edge connectors

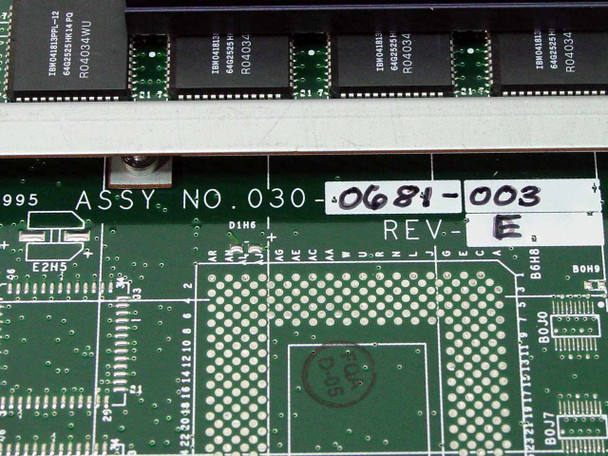

  • SGI 030-0681-003 board label closeup showing assembly number 030-0681-003 and revision E marking
  • SGI GE12-4 PCA Module Board – closeup of high-density edge connector and GE3 IC area on bottom section
  • SGI 030-0681-003 GE12-4 Module Board installed view showing full board assembly with blue and black heatsinks

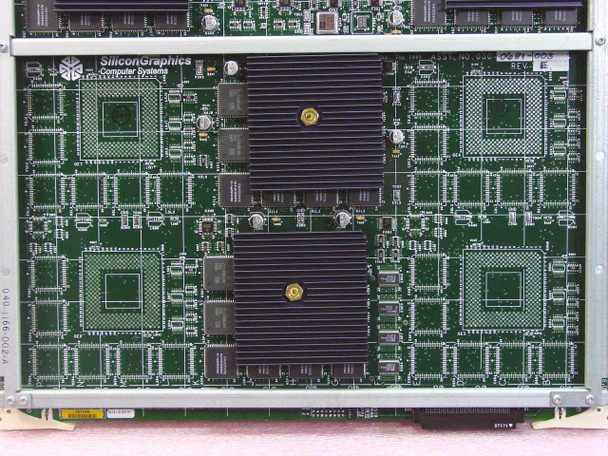

  • Silicon Graphics GE12-4 PCA Module Board – rear component side showing SGI Computer Systems branding and dual heatsink array
  • SGI 030-0681-003 GE12-4 PCA Module Board – full assembly view from above showing both sub-boards and bottom edge connectors
$200.00
Was: $500.00
Current Stock: 1

Sold Out

Description

SGI 030-0681-003 GE12-4 PCA Module Board Silicon Graphics Onyx 10000 Rev E

PCA module board for Silicon Graphics Onyx 10000 servers. This card was pulled from active hardware and remains functional.

Specifications & What's Included

  • Brand: Silicon Graphics (SGI)
  • Model: GE12-4
  • MPN: 030-0681-003
  • Hardware Revision: Rev E
  • Dimensions: 16.25" x 15" x 0.75"
  • Manufactured in United States
  • Board only; no cables or accessories included

Applications

The GE12-4 board is a graphics accelerator module designed for the SGI Onyx 10000 high-performance visualization server. These systems were used for scientific computing, engineering simulations, and graphics-intensive workloads. The Onyx 10000 line served as a platform for advanced computational tasks in research and professional visualization environments.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This SGI 030-0681-003 GE12-4 PCA Module Board for the Silicon Graphics Onyx 10000 has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use and functional. Cosmetically, the board presents cleanly — both sub-boards show normal handling wear consistent with datacenter service life, with no visible cracks, broken traces, or damaged connectors. The edge connectors appear intact and the heatsinks are properly seated. Please review our photo set for a detailed look at the board's condition, and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SGI (Silicon Graphics)
Model:
GE12-4
MPN:
030-0681-003
SKU:
36465
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from SGI Onyx 10000 server
Form Factor:
Card / Module
Compatible With:
Silicon Graphics Onyx 10000 Server
Hardware Revision:
Rev E
Dimensions:
16.25" x 15" x 0.75"
Country of Manufacture:
United States
Condition Notes:
SGI 030-0681-003 GE12-4 PCA Module Board for Onyx 10000. Inspected and in good used condition. Pulled from a working environment where it was actively in use and functional. Board and connectors appear intact with normal wear.
View AllClose

Related Products

Related Products

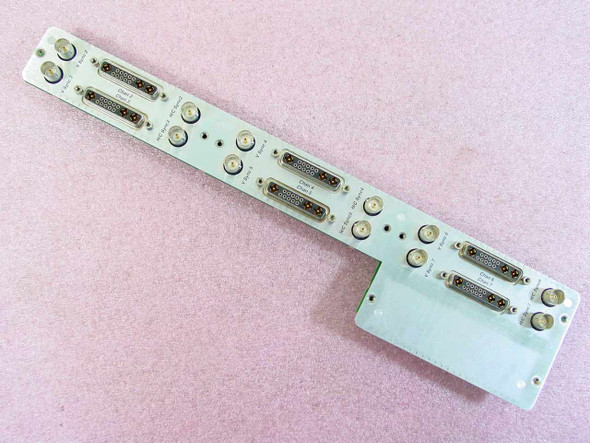

Silicon Graphics KONA VIO6 030-765-003 – front panel view showing four D-Sub connectors and BNC sync ports on white aluminum bracket Silicon Graphics KONA VIO6 030-765-003 – PCB reverse side showing green circuit board with gold edge connector and yellow sticker label
Add to Cart
Quick view

Silicon Graphics KONA VIO6 030-765-003 Video I/O Module SGI Onyx 10000 Rev A

Silicon Graphics

$100.00
Was: $200.00
Silicon Graphics KONA VIO6 030-765-003 Video I/O Module SGI Onyx 10000 Rev A Video I/O module for the SGI Onyx 10000 graphics subsystem. Provides seven channels of video input and output with support...
36477
SKU:
36477
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
KONA VIO6
MPN:
030-765-003
Secondary MPN:
030-1391-001
Hardware Revision:
Rev A
SKU:
36477
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from SGI Onyx 10000 server
Form Factor:
Card / Module
Compatible With:
SGI Onyx 10000
Country of Manufacture:
USA
Number of Video Channels:
7 (Channels 1–7)
Connector Types:
D-Sub (DB-26), BNC (V-Sync, HC-Sync)
Dimensions:
14.25" x 3" x 1.25"
Copyright / Manufacture Year:
1995
Application:
Video I/O for SGI Onyx 10000 graphics subsystem
Condition Notes:
Silicon Graphics KONA VIO6 030-765-003 video I/O module. Inspected, in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Connectors intact. Please view photos and contact us with questions.

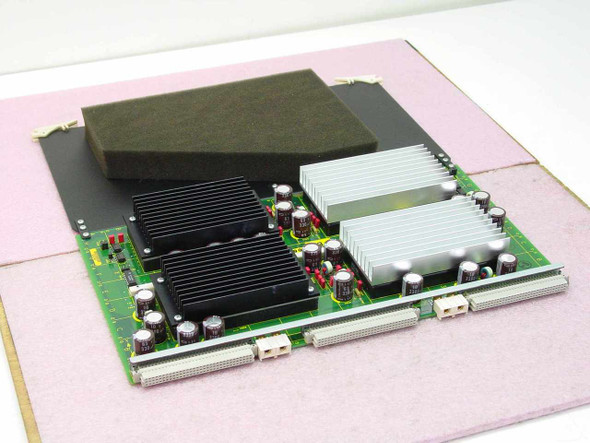

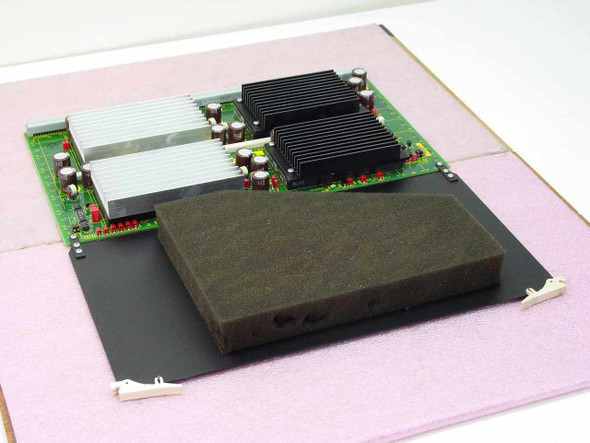

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – top view showing dual black and silver heatsink arrays on green PCB with foam anti-static pads Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – alternate top angle showing full board layout with heatsinks and edge connectors, foam pad at front
Add to Cart
Quick view

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000

Silicon Graphics

$900.00
Was: $1,800.00
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B Onyx 10000 Power distribution and management module board for SGI Onyx 10000 high-performance computing servers. This Rev B assembly...
36472
SKU:
36472
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics
Model:
305X2
MPN:
030-0743-002
SKU:
36472
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no cables or accessories included.
Form Factor:
Card / Module
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Hardware Revision:
Rev B
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 14.5" x 1.5"
Assembly Number:
030-0743-002
Application:
SGI Onyx 10000 high-performance server power distribution
Board Type:
Power Module / Power Assembly Board
Condition Notes:
Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 Rev B. Inspected, in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use and functional. PCB and heatsinks intact. Please contact us with questions.

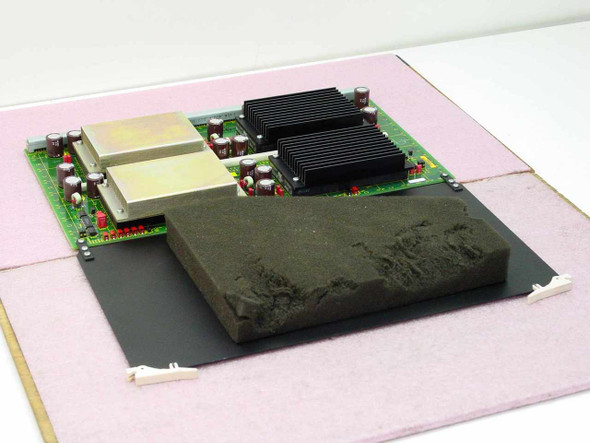

Silicon Graphics 303X2 030-0741-001 Power Module Board top view with heat sinks and foam packing on anti-static mat Silicon Graphics 303X2 Power Module Board angled view showing dual heat sinks and shielded transformer cans on green PCB
Add to Cart
Quick view

Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D

Silicon Graphics

$750.00
Was: $1,500.00
Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D Power module board designed for the SGI Onyx 10000 server. This card manages power distribution and regulation within the...
36473
SKU:
36473
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
303X2
MPN:
030-0741-001
Secondary Model:
303X2 PWR ASSY
Hardware Revision:
Rev D
SKU:
36473
Condition:
Used – Pulled from Working Environment
Seller Notes:
Power module board only; no chassis or server included.
Form Factor:
Card / Module Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Board Type:
Power Module Board
Copyright Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Condition Notes:
This Silicon Graphics 303X2 Power Module Board (030-0741-001) Rev D has been inspected and is in good used condition. Pulled from a working SGI Onyx 10000 server. PCB, heat sinks, and connectors appear intact. Please contact us with any questions.

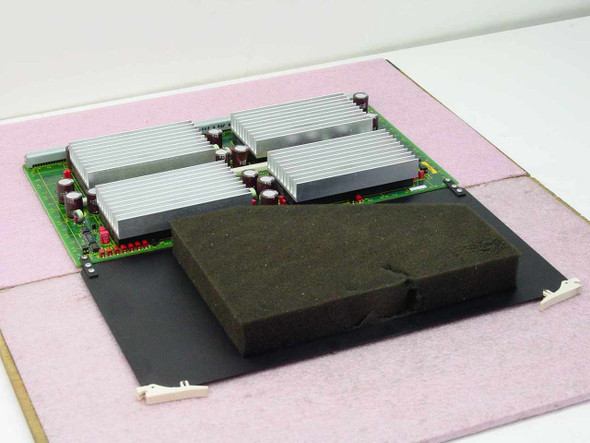

Silicon Graphics 030-0742-001 512X2 Power Module Board — top-angled view showing four large aluminum heatsinks and green PCB on antistatic foam Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — opposite top-angle view with foam pad shifted, showing full board extent and edge connectors
