Silicon Graphics

Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D

(No reviews yet) Write a Review
SKU:
36473
MPN:
030-0741-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout

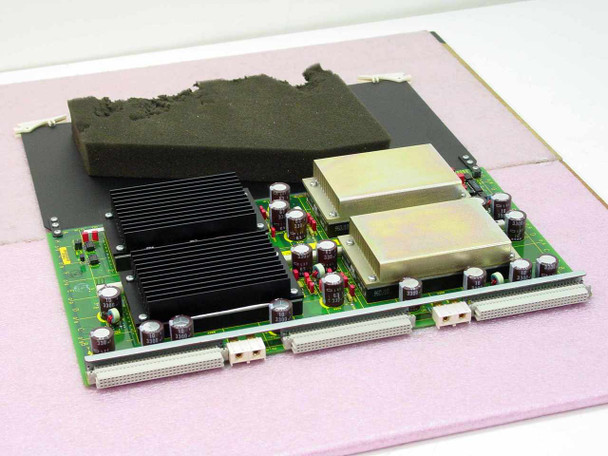

  • Silicon Graphics 303X2 030-0741-001 Power Module Board top view with heat sinks and foam packing on anti-static mat

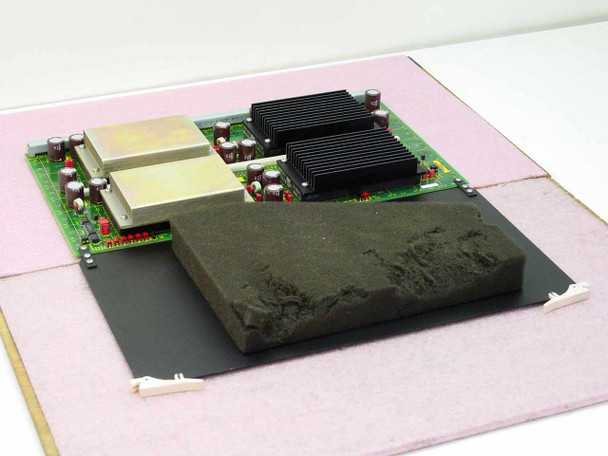

  • Silicon Graphics 303X2 Power Module Board angled view showing dual heat sinks and shielded transformer cans on green PCB

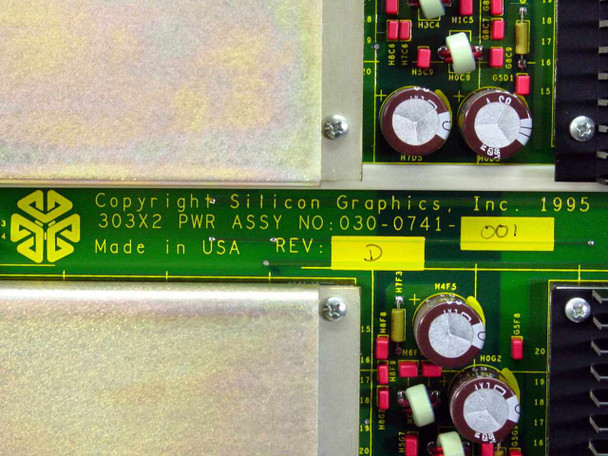

  • Close-up of Silicon Graphics board label showing 303X2 PWR ASSY NO 030-0741-001 Rev D, copyright 1995, Made in USA

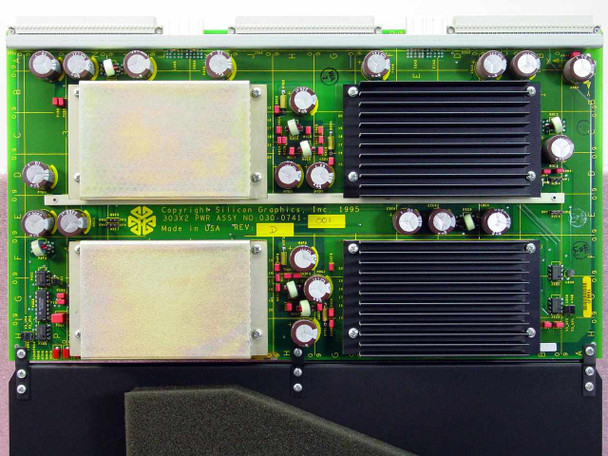

  • Silicon Graphics 303X2 030-0741-001 Power Module Board full top view showing PCB layout with heat sinks and edge connectors

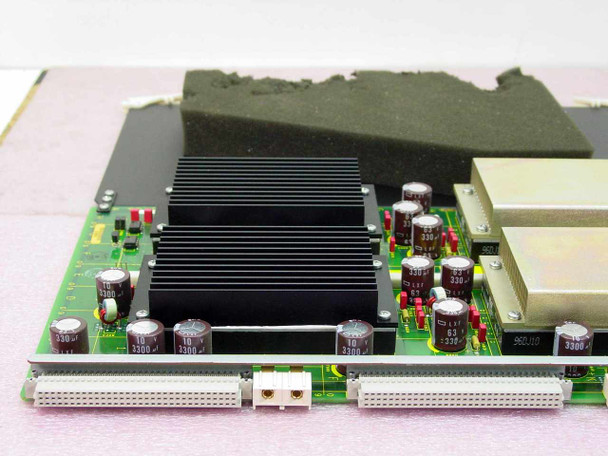

  • Silicon Graphics 303X2 Power Board close-up of heat sink section with 3300uF capacitor array and edge connector fingers

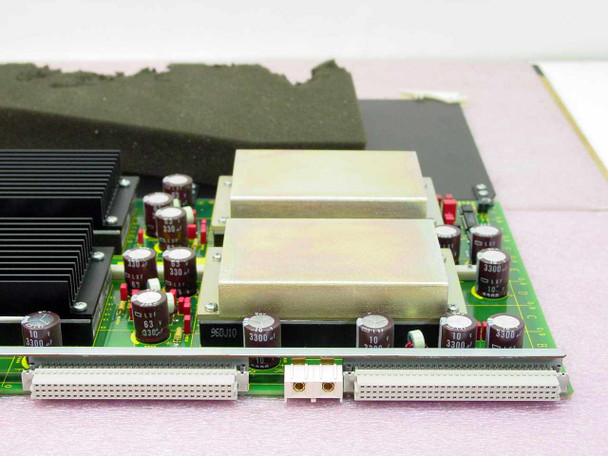

  • Silicon Graphics 303X2 Power Board close-up of shielded transformer cans section with capacitor array and edge connectors
$750.00
Was: $1,500.00
Current Stock: 1

Sold Out

Description

Silicon Graphics 303X2 030-0741-001 Power Module Board SGI Onyx 10000 Rev D

Power module board designed for the SGI Onyx 10000 server. This card manages power distribution and regulation within the system chassis.

Specifications & What's Included

  • Brand: Silicon Graphics (SGI)
  • Model: 303X2 / 303X2 PWR ASSY
  • MPN: 030-0741-001
  • Hardware Revision: Rev D
  • Form Factor: Card/Module Board
  • Dimensions: 16.5" x 15" x 1.5"
  • Manufactured: USA, 1995
  • Power module board only; no chassis or server included

Applications

The 303X2 power module board was used in SGI Onyx 10000 servers, which are high-performance computing systems from the mid-1990s. This board handles power supply functions within the Onyx architecture. These systems were deployed in visualization, rendering, and scientific computing environments.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Silicon Graphics 303X2 Power Module Board (030-0741-001) has been inspected and is in good used condition. It was pulled from a working SGI Onyx 10000 server environment where it was previously in active service. The PCB appears clean with no visible damage, cracked solder joints, or burnt components. Both heat sink assemblies and the shielded transformer/regulator cans are present and intact. The edge connector fingers along the bottom show normal contact wear consistent with prior installation. Please review our photo set for a detailed look at the board's current state, and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Silicon Graphics (SGI)
Model:
303X2
MPN:
030-0741-001
Secondary Model:
303X2 PWR ASSY
Hardware Revision:
Rev D
SKU:
36473
Condition:
Used – Pulled from Working Environment
Seller Notes:
Power module board only; no chassis or server included.
Form Factor:
Card / Module Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Board Type:
Power Module Board
Copyright Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Condition Notes:
This Silicon Graphics 303X2 Power Module Board (030-0741-001) Rev D has been inspected and is in good used condition. Pulled from a working SGI Onyx 10000 server. PCB, heat sinks, and connectors appear intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

Silicon Graphics 030-0742-001 512X2 Power Module Board — top-angled view showing four large aluminum heatsinks and green PCB on antistatic foam Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — opposite top-angle view with foam pad shifted, showing full board extent and edge connectors
Add to Cart
Quick view

Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000

Silicon Graphics

$500.00
Was: $1,000.00
Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000 The Silicon Graphics 030-0742-001 is a 512X2 Power Module Assembly board designed for the SGI Onyx 10000 high-performance server...
36474
SKU:
36474
Availability:
Usually ships within 1–2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
030-0742-001
MPN:
030-0742-001
SKU:
36474
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Form Factor:
PCB Module / Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Assembly Description:
512X2 PWR ASSY — Power Module Board
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Application:
Server Power Distribution Module
Product Line:
SGI Onyx Series
Condition Notes:
This SGI 030-0742-001 512X2 Power Module Board is in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Heatsinks intact, edge connectors appear undamaged. Please contact us with any questions.

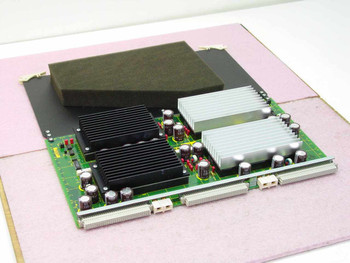

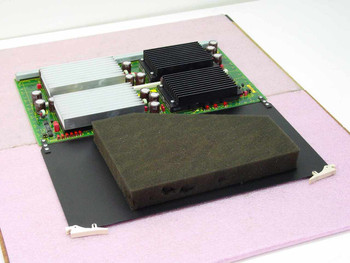

Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – top view showing dual black and silver heatsink arrays on green PCB with foam anti-static pads Silicon Graphics SGI 305X2 Power Module Board 030-0743-002 – alternate top angle showing full board layout with heatsinks and edge connectors, foam pad at front
