Silicon Graphics

Silicon Graphics KONA-DG4 030-0687-004 Module Board SGI Onyx 10000 Server

(No reviews yet) Write a Review
SKU:
36469
MPN:
030-0687-004
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout
  • Silicon Graphics KONA-DG4 030-0687-004 module board top view showing full PCB layout with heatsinks and edge connectors on pink anti-static foam
  • Silicon Graphics KONA-DG4 module boards — two units shown side by side on pink anti-static foam, top view
  • Silicon Graphics KONA-DG4 PCB silkscreen close-up showing assembly number 030-0687-004, Made in USA, Rev C, and Silicon Graphics Inc copyright marking

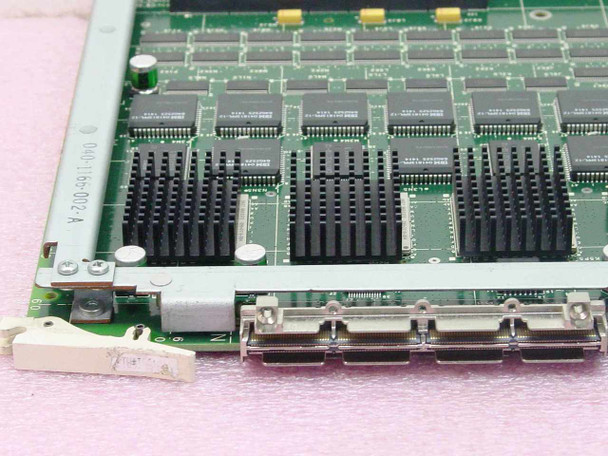

  • Silicon Graphics KONA-DG4 board close-up showing multiple black heatsinks and rear edge connectors with partial label visible on left rail

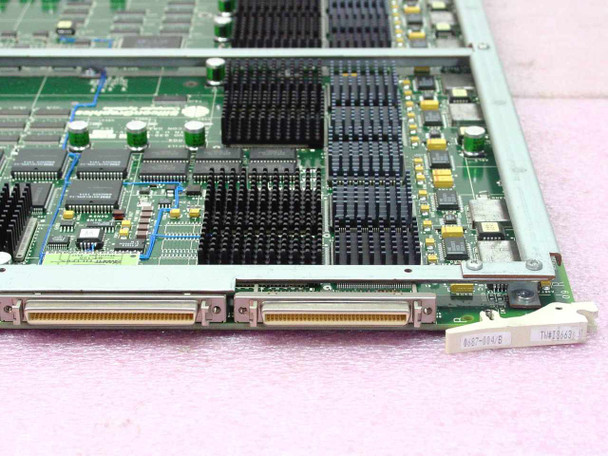

  • Silicon Graphics KONA-DG4 module board lower section close-up showing dual high-density connector ports and memory arrays with label markings
  • Silicon Graphics KONA-DG4 board edge detail showing large pin connector rows and adjacent sub-board with heatsink arrays and capacitor bank
  • Silicon Graphics KONA-DG4 module board power section close-up showing toroidal inductors, capacitors, voltage regulators, and edge connector

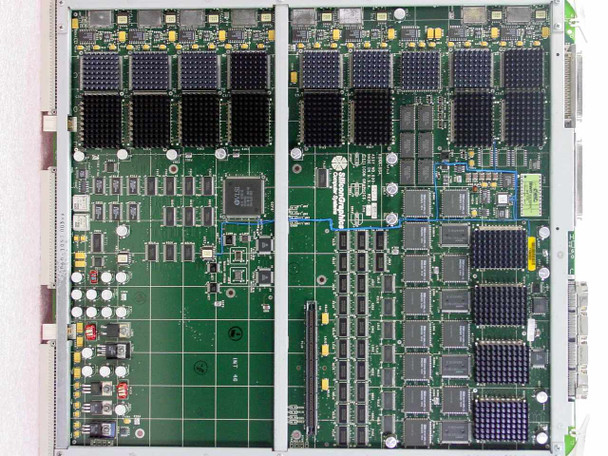

  • Silicon Graphics KONA-DG4 030-0687-004 two-board assembly overhead view showing complete module layout with heatsinks, memory, and dual connector edges
$400.00
Was: $800.00
Current Stock: 1

Sold Out

Description

Silicon Graphics KONA-DG4 030-0687-004 Module Board SGI Onyx 10000 Server

This is a KONA-DG4 module board designed for the SGI Onyx 10000 high-performance computing server. The board was used in graphics and data processing configurations within enterprise systems.

Specifications & What's Included

  • Brand: Silicon Graphics (SGI)
  • Model: KONA-DG4
  • MPN: 030-0687-004
  • Hardware Revision: Rev C
  • Dimensions: 16.25" x 15" x 0.75"
  • Form Factor: Card / Module Board
  • Compatible: SGI Onyx 10000 Server
  • Board only — no accessories included

Applications

The KONA-DG4 was deployed in SGI Onyx 10000 systems used for scientific visualization, 3D rendering, and computational workloads. These servers were common in research institutions, media production facilities, and engineering environments. The module handles graphics and processing tasks within the Onyx 10000 architecture.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Silicon Graphics KONA-DG4 030-0687-004 module board has been inspected and is in good used condition. It was pulled from a working SGI Onyx 10000 Server environment where it was actively in use and functional. The PCB surface is clean with no visible cracked traces, damaged components, or burn marks. Heatsinks are intact and seated. Edge connectors show normal contact wear consistent with removal from a production server. Minor surface marks and light handling wear are present on the PCB frame rails, as expected for a board of this age and vintage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Silicon Graphics (SGI)
Model:
KONA-DG4
MPN:
030-0687-004
SKU:
36469
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only. No additional accessories included.
Form Factor:
Card / Module Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
United States
Dimensions:
16.25" x 15" x 0.75"
Hardware Revision:
Rev C (visible on PCB silkscreen)
Assembly Number:
030-0687-004
Condition Notes:
This Silicon Graphics KONA-DG4 030-0687-004 module board has been inspected and is in good used condition. Pulled from a working SGI Onyx 10000 Server where it was in active use. Heatsinks intact, PCB clean. Normal wear. Contact us with questions.
View AllClose

Related Products

Related Products

Silicon Graphics 030-0742-001 512X2 Power Module Board — top-angled view showing four large aluminum heatsinks and green PCB on antistatic foam Silicon Graphics SGI 030-0742-001 512X2 Power Module Board — opposite top-angle view with foam pad shifted, showing full board extent and edge connectors
Add to Cart
Quick view

Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000

Silicon Graphics

$500.00
Was: $1,000.00
Silicon Graphics SGI 030-0742-001 512X2 Power Module Board Onyx 10000 The Silicon Graphics 030-0742-001 is a 512X2 Power Module Assembly board designed for the SGI Onyx 10000 high-performance server...
36474
SKU:
36474
Availability:
Usually ships within 1–2 business days.
Weight:
9.00 LBS
Brand:
Silicon Graphics (SGI)
Model:
030-0742-001
MPN:
030-0742-001
SKU:
36474
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Form Factor:
PCB Module / Board
Compatible With:
SGI Onyx 10000 Server
Country of Manufacture:
USA
Assembly Description:
512X2 PWR ASSY — Power Module Board
Copyright / Manufacture Year:
1995
Dimensions:
16.5" x 15" x 1.5"
Application:
Server Power Distribution Module
Product Line:
SGI Onyx Series
Condition Notes:
This SGI 030-0742-001 512X2 Power Module Board is in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Heatsinks intact, edge connectors appear undamaged. Please contact us with any questions.

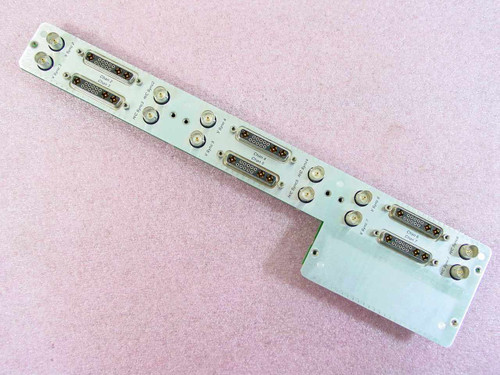

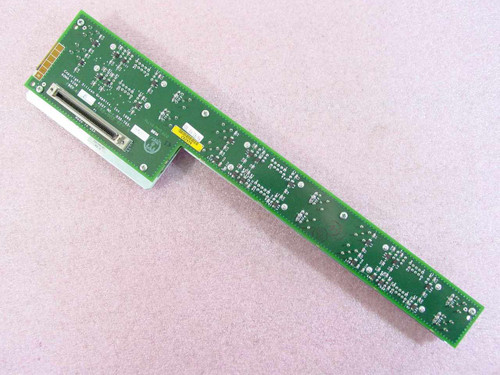

Silicon Graphics KONA VIO6 030-765-003 – front panel view showing four D-Sub connectors and BNC sync ports on white aluminum bracket Silicon Graphics KONA VIO6 030-765-003 – PCB reverse side showing green circuit board with gold edge connector and yellow sticker label
