Silicon Graphics

Silicon Graphics KONA VIO6 030-765-003 Video I/O Module SGI Onyx 10000 Rev A

(No reviews yet) Write a Review
SKU:
36477
MPN:
030-765-003
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Silicon Graphics KONA VIO6 030-765-003 – front panel view showing four D-Sub connectors and BNC sync ports on white aluminum bracket

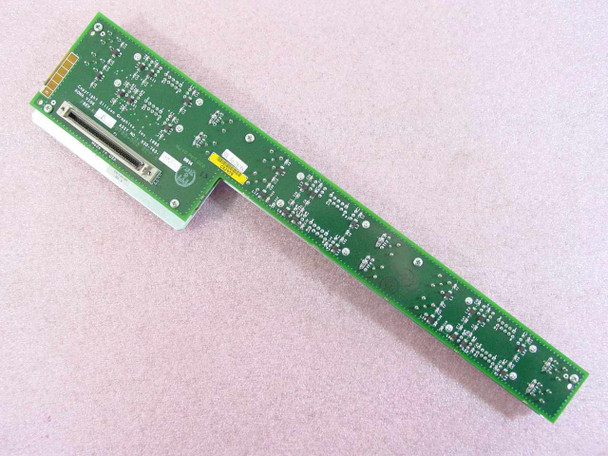

  • Silicon Graphics KONA VIO6 030-765-003 – PCB reverse side showing green circuit board with gold edge connector and yellow sticker label

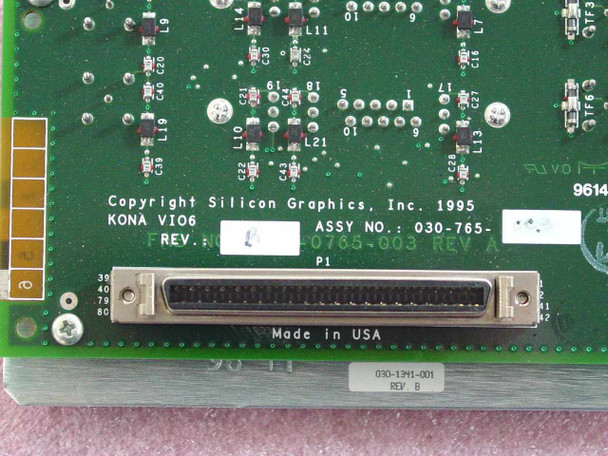

  • Silicon Graphics KONA VIO6 030-765-003 – close-up of PCB markings showing assembly number 030-765-003 Rev A, KONA VIO6 label, Made in USA, and sub-board 030-1391-001 Rev B

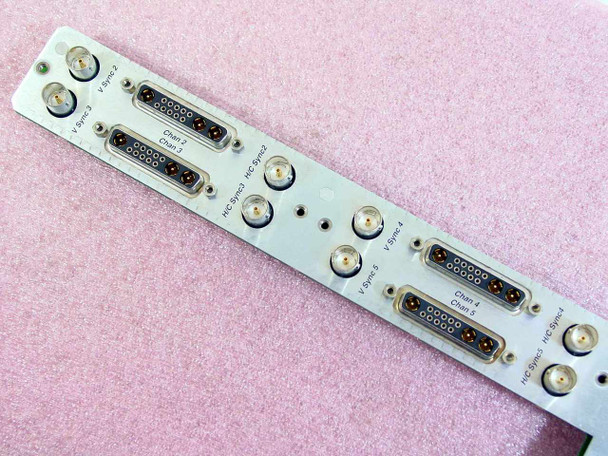

  • Silicon Graphics KONA VIO6 030-765-003 – front panel detail showing Chan 2 through Chan 5 D-Sub connectors with labeled V-Sync and HC-Sync BNC ports
  • Silicon Graphics KONA VIO6 030-765-003 – front panel end section showing Chan 6, Chan 7 D-Sub connectors and V-Sync 6, V-Sync 7, HC-Sync BNC ports
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Silicon Graphics KONA VIO6 030-765-003 Video I/O Module SGI Onyx 10000 Rev A

Video I/O module for the SGI Onyx 10000 graphics subsystem. Provides seven channels of video input and output with support for standard synchronization signals.

Specifications & What's Included

  • Model: KONA VIO6 (MPN: 030-765-003, Secondary MPN: 030-1391-001)
  • Hardware Revision: Rev A
  • Compatible With: SGI Onyx 10000
  • Video Channels: 7 (Channels 1–7)
  • Connectors: D-Sub (DB-26), BNC (V-Sync, HC-Sync)
  • Dimensions: 14.25" x 3" x 1.25"
  • Manufactured: USA, 1995

Applications

Used in SGI Onyx 10000 graphics servers for video capture and output operations. The KONA VIO6 handles multichannel video I/O for high-end visualization, rendering, and post-production workflows on SGI graphics workstations from the mid-1990s era.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Silicon Graphics KONA VIO6 Video I/O Module (030-765-003) has been inspected and is in good used condition. It was pulled from an operational SGI Onyx 10000 server where it was actively in use. The bracket and PCB are clean with no broken connectors observed; the D-Sub and BNC ports appear intact and undamaged. Normal light handling marks are present consistent with prior installation and removal from a server chassis. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Silicon Graphics (SGI)
Model:
KONA VIO6
MPN:
030-765-003
Secondary MPN:
030-1391-001
Hardware Revision:
Rev A
SKU:
36477
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from SGI Onyx 10000 server
Form Factor:
Card / Module
Compatible With:
SGI Onyx 10000
Country of Manufacture:
USA
Number of Video Channels:
7 (Channels 1–7)
Connector Types:
D-Sub (DB-26), BNC (V-Sync, HC-Sync)
Dimensions:
14.25" x 3" x 1.25"
Copyright / Manufacture Year:
1995
Application:
Video I/O for SGI Onyx 10000 graphics subsystem
Condition Notes:
Silicon Graphics KONA VIO6 030-765-003 video I/O module. Inspected, in good used condition. Pulled from a working SGI Onyx 10000 server where it was in active use. Connectors intact. Please view photos and contact us with questions.
