Siemens 6ES7532-5HF00-0AB0 S7-1500 Analog Output Module AQ 8xU/I HS 24VDC

Siemens 6ES7532-5HF00-0AB0 S7-1500 Analog Output Module AQ 8xU/I HS 24VDC

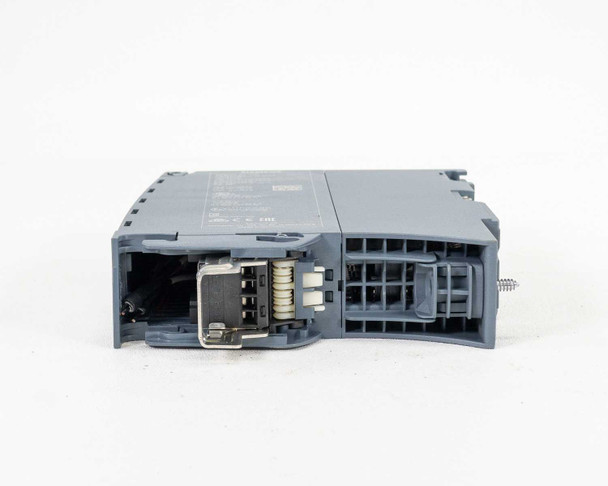

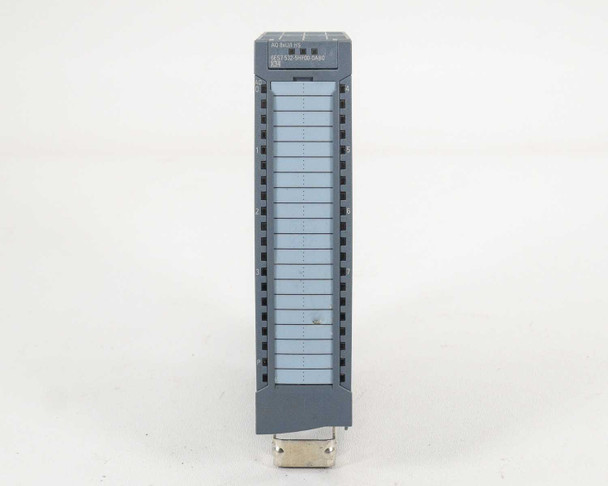

The Siemens 6ES7532-5HF00-0AB0 is a high-speed analog output module for the SIMATIC S7-1500 programmable logic controller platform. It provides eight individually configurable voltage and current output channels with 16-bit resolution and 0.125 ms per-channel oversampling, making it suited for demanding closed-loop control applications where fast, precise analog signals are required. The module also supports safety-oriented shutdown of load groups up to SIL2, allowing it to participate in functional safety architectures without a dedicated safety relay.

Specifications & What's Included

• Part Number: 6ES7532-5HF00-0AB0
• Product Family: SIMATIC S7-1500
• Module Type: Analog Output, AQ 8xU/I HS
• Number of Output Channels: 8
• Output Signal Types: Voltage (U) and Current (I)
• Resolution: 16-bit
• Accuracy: 0.3%
• Oversampling: 0.125 ms per channel
• Channel Grouping: 8 channels in groups of 8
• Supply Voltage: 24V DC
• Supply Current: 200 mA
• Load Impedance (voltage outputs): > 5 kΩ at ≤40°C vertical / ≤60°C horizontal mounting
• Load Impedance (derated): > 1 kΩ for 4 channels at 25–40°C vertical / 40–60°C horizontal
• Diagnostics: Yes, with substitute value capability
• Safety Rating: SIL2 per EN IEC 62061:2021; Category 3 / PL d per EN ISO 13849-1:2015
• Mounting: DIN rail
• Dimensions: approx. 5" × 1.5" × 6.5"
• Manufacture Date: 2015 (FS: 02)
• Certifications: CE, UL, EAC
• Country of Manufacture: Germany
• Included: Module only (no cables or accessories)

Applications

The SIMATIC S7-1500 series is Siemens' current-generation high-performance PLC platform, introduced around 2012 as the successor to the S7-300 and S7-400 families. The AQ 8xU/I HS module is used in process automation, machine control, and motion applications where the controller must drive analog field devices — proportional valves, variable-speed drives, positioners, or analog-input instruments — with fast update rates and high accuracy. The integrated SIL2 safety shutdown capability makes this module a fit for machinery and process installations that must meet IEC 62061 or ISO 13849 functional safety requirements without adding a separate safety relay tier. S7-1500 I/O modules like this one mount directly on the S7-1500 rail system and communicate over the high-speed backplane bus, making them a standard expansion component in Siemens TIA Portal-programmed control systems across manufacturing, automotive, chemical processing, and energy industries.
