Siemens

Siemens 6ES7522-1BH01-0AB0 S7-1500 DQ 16x24VDC 0.5A HF Digital Output Module

(No reviews yet) Write a Review
SKU:
52974
MPN:
6ES7522-1BH01-0AB0
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

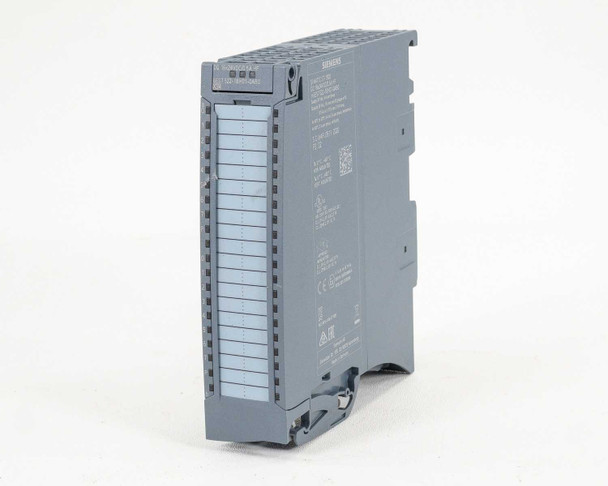

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — front-left angled view showing terminal wiring connectors and DIN rail clip

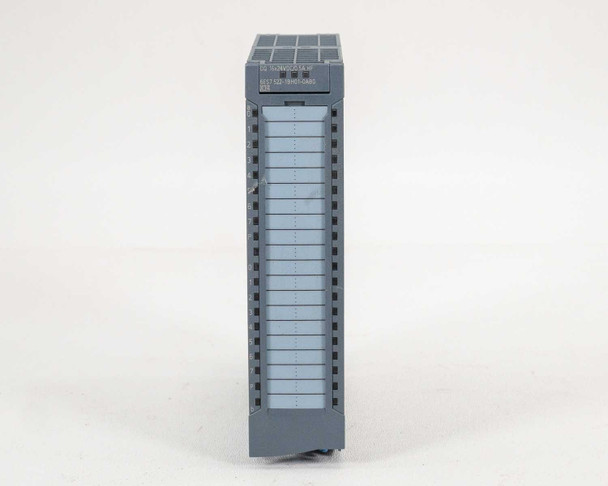

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — front face view showing all 16 terminal rows and status indicators at top

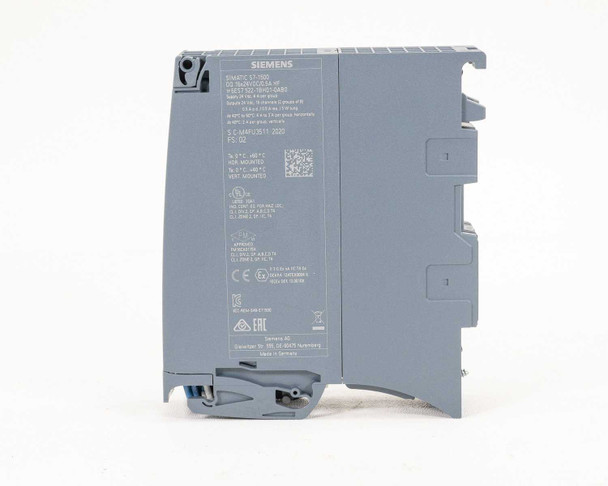

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — right side label view showing full specifications, part number, ratings, and Made in Germany marking

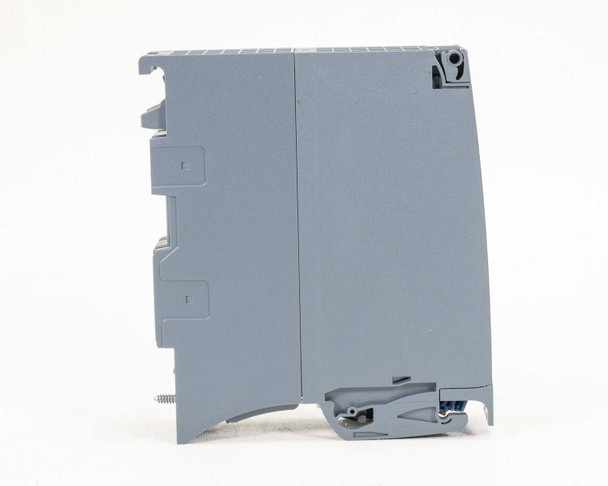

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — left side view showing backplane connector housing and DIN rail latch

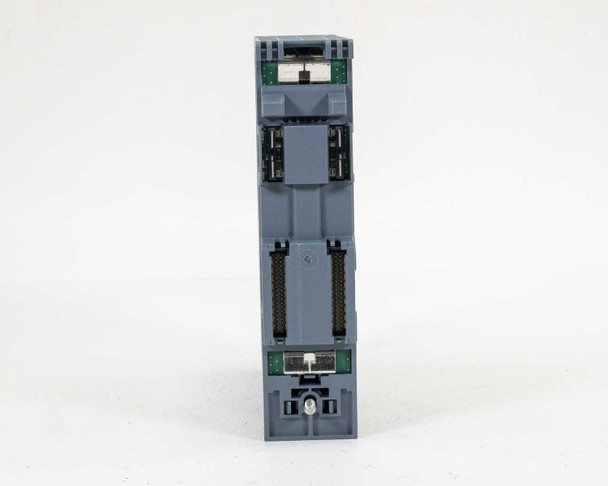

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — bottom view showing backplane bus connector contacts and locking mechanism

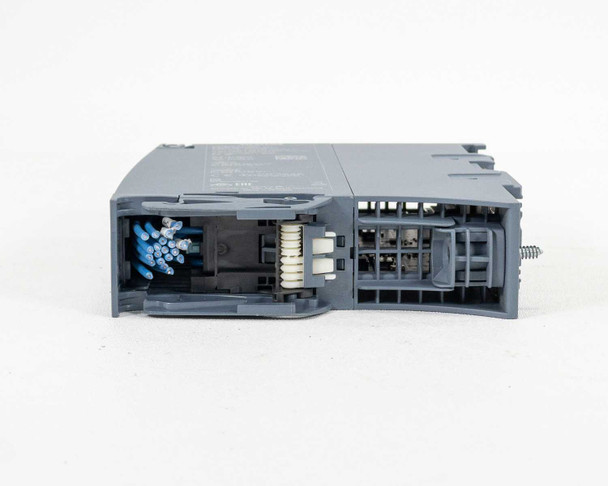

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — top view with terminal cover open showing wiring terminals and spring-clamp connections

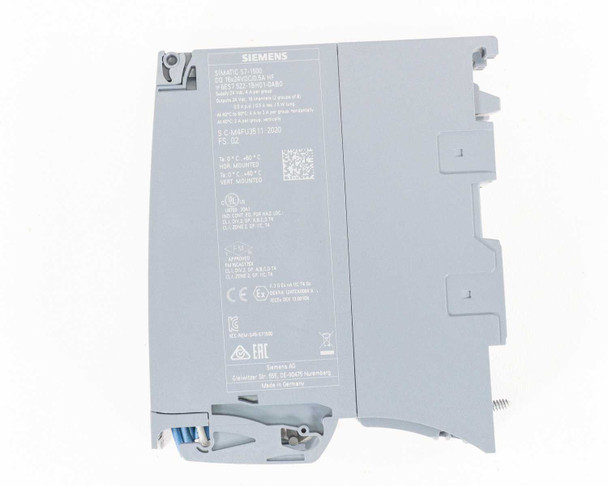

  • Siemens 6ES7522-1BH01-0AB0 S7-1500 Digital Output Module — rear label view showing specifications, EAC marking, UL listing, and regulatory data
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Siemens 6ES7522-1BH01-0AB0 S7-1500 DQ 16x24VDC 0.5A HF Digital Output Module

Digital output module for Siemens Simatic S7-1500 PLC systems. Provides 16 channels of 24V DC switching outputs at 0.5A per channel, organized into two groups of eight channels with independent load supply.

Specifications & What's Included

  • 16 digital outputs, 24V DC, 0.5A per channel
  • Two output groups (8 channels each), 4A max per group horizontal/2A vertical to 40°C
  • Tungsten load rating: 5W
  • Single-channel diagnostics and safety-oriented shutdown to SIL2
  • DIN rail form factor; dimensions 5 x 1.5 x 5.75 inches
  • CE, UL, EAC certified; manufactured Germany, 2020
  • Module only

Applications

This module type is used in industrial automation and process control systems to switch external 24V DC loads such as solenoids, indicator lights, and relay coils. It fits as a plug-in card in S7-1500 PLC racks for distributed output switching across production lines, machinery controls, and building automation. The diagnostics and safety shutdown capability support systems requiring fault detection and safe shutdown operations.

Condition: Used
This Siemens 6ES7522-1BH01-0AB0 Simatic S7-1500 Digital Output Module has been inspected and is in good condition. It was pulled from a large PLC control cabinet that was decommissioned, where it had been in use and functional. The module shows normal light wear consistent with installation in a cabinet environment. The housing is intact, the terminal connectors are present, and no damage is visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
6ES7522-1BH01-0AB0
MPN:
6ES7522-1BH01-0AB0
Type:
Digital Output Module
SKU:
52974
Series:
Simatic S7-1500
Number of Outputs:
16
Output Voltage:
24V DC
Output Current per Channel:
0.5A
Output Groups:
2 groups of 8 channels
Load Supply Voltage:
24V DC, 4 channels per group
Max Current per Group (to 40°C):
4A horizontal, 2A vertical
Max Current per Group (40–60°C):
4A to 3A horizontal
Tungsten Load Rating:
5W
Diagnostics:
Single-channel diagnostics
Safety Function:
Safety-oriented shutdown up to SIL2
Form Factor:
DIN Rail Module
Dimensions:
5 x 1.5 x 5.75 in
Country/Region of Manufacture:
Germany
Manufacture Date:
2020
Certifications:
CE, UL, EAC
Compatible With:
Siemens Simatic S7-1500 PLC systems
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; pulled from decommissioned S7-1500 PLC cabinet
Condition Notes:
Siemens 6ES7522-1BH01-0AB0 S7-1500 digital output module. Inspected, in good condition. Pulled from a decommissioned PLC cabinet where it was in use and functional. Normal light wear. Module and terminals intact.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
