Siemens 6ES7521-1BL00-0AB0 S7-1500 DI 32x24VDC HF 32-Ch Digital Input Module

Siemens 6ES7521-1BL00-0AB0 S7-1500 DI 32x24VDC HF 32-Ch Digital Input Module

The Siemens 6ES7521-1BL00-0AB0 is a 32-channel high-feature (HF) digital input module for the SIMATIC S7-1500 PLC platform. It accepts 24V DC signals across 32 inputs organized into two groups of 16, and supports configurable input delay times from 0.05 to 20 ms. Two of the 32 inputs can be configured as high-speed counter inputs, adding flexibility for encoder or pulse-counting applications without a dedicated counter module.

Specifications & What's Included

• Part Number / MPN: 6ES7521-1BL00-0AB0
• Product Family: SIMATIC S7-1500
• Module Type: Digital Input (DI), High Feature (HF)
• Number of Input Channels: 32
• Channel Grouping: 2 groups of 16 channels
• Input Voltage: 24V DC
• Supply Current: 20 mA per group
• Input Type: Type 3 per IEC 61131-2
• Input Delay: Configurable, 0.05 to 20 ms
• Counter Inputs: 2 inputs configurable as counters
• Max Channels at 40°C: 32 channels (horizontal or vertical mounting)
• Max Channels at 60°C: 16 channels (horizontal mounting only)
• Form Factor: DIN rail-mount module
• Dimensions: 5" × 1.5" × 5.75" (H × W × D)
• Country of Manufacture: Germany
• Manufacturing Date: 2015
• Certifications: UL, CE, EAC

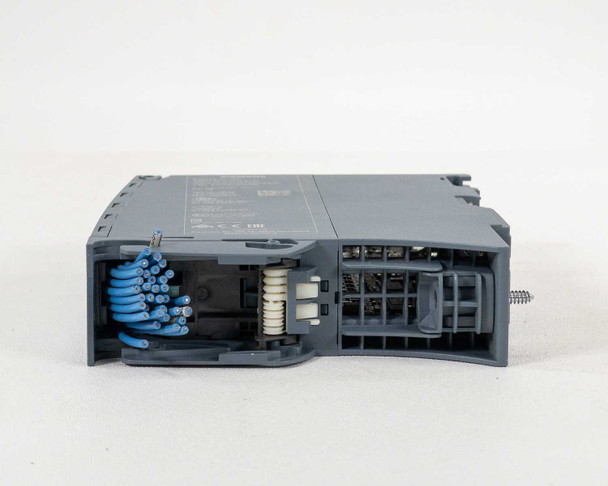

• Included: Module with blue spring-cage wiring connector attached

Applications

The SIMATIC S7-1500 series is Siemens' current-generation modular PLC platform, used in manufacturing, process automation, machine building, and infrastructure applications worldwide. Digital input modules like the DI 32x24VDC HF are used to read discrete field signals — pushbuttons, limit switches, proximity sensors, photoelectric sensors, and other 24V DC devices — and bring them into the PLC's control logic. The HF designation indicates high-speed diagnostics and parameter-assignable features including per-channel interrupt capability and short-circuit detection, making it well suited for machines where precise fault detection and fast response times matter. The two configurable counter inputs allow the module to handle basic incremental encoder or pulse signals directly, reducing the need for a separate counter module in lower-speed counting applications. This module mounts on standard DIN rail within an S7-1500 rack and connects to the CPU or interface module via the integrated backplane bus connector.
