Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply PS 25W 24VDC 1.3A

(No reviews yet) Write a Review
SKU:
52973
MPN:
6ES7505-0KA00-0AB0
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – right-side angled front view showing gray module housing and ventilation slots
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – top view showing ventilation grille and status indicator LEDs
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – label side showing SIMATIC S7-1500 part number, 25W 24VDC 1.3A rating plate and certifications
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – left side view showing DIN rail mounting clip and module body

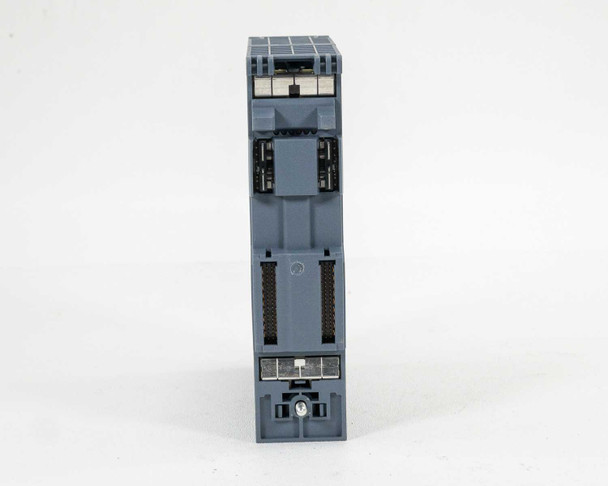

  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – bottom connector view showing backplane bus connector interface
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – rear view showing DIN rail latch and wiring terminal access
  • Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply – second label view showing full rating plate, serial number area, manufacture date 2015, and EAC/UL/CE markings
$195.00
Was: $400.00
Current Stock: 2

Sold Out

Description

Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply PS 25W 24VDC 1.3A

The Siemens 6ES7505-0KA00-0AB0 is a system power supply module for the SIMATIC S7-1500 PLC platform. Its primary function is to supply the S7-1500 backplane bus with the operating voltage required to power the CPU and I/O modules installed in the rack. It receives 24V DC from an external power source and delivers regulated power to the system bus, keeping the automation rack running independently of the process I/O supply.

Specifications & What's Included

  • Part Number: 6ES7505-0KA00-0AB0
  • Series: Siemens SIMATIC S7-1500
  • Type: System Power Supply (PS) — supplies S7-1500 backplane bus
  • Output Power: 25W
  • Output / Supply Voltage: 24V DC
  • Output Current: 1.3A
  • Input Voltage: 24V DC
  • Form Factor: DIN rail-mount module
  • Dimensions: 5" H x 1.5" W x 5.75" D (approx.)
  • Country of Manufacture: Germany
  • Manufacturing Date: 2015
  • Certifications: UL, CE, EAC (visible on label)
  • Included: Power supply module only

Applications

The SIMATIC S7-1500 is Siemens' current-generation programmable logic controller platform, introduced around 2012 as the successor to the S7-300 and S7-400 series. It is widely used in manufacturing automation, process control, machine building, and plant engineering across industries including automotive, food and beverage, packaging, and chemical processing. The system power supply module (PS) is a dedicated component that feeds the S7-1500 internal bus — separate from the load power supply that feeds field devices — and is required any time the combined CPU and module current draw exceeds the CPU's own integrated bus supply. Replacement or spare PS modules are in steady demand for system expansions, rack upgrades, and field service repair of existing S7-1500 installations. This module mounts directly onto the S7-1500 rail alongside the CPU and I/O modules and is hot-swappable in supported configurations.

Condition: Used
This Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply has been inspected and is in good condition. It was pulled from a large PLC control cabinet that was decommissioned, where it had been in use and functional. The module housing is clean with no significant damage visible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
6ES7505-0KA00-0AB0
MPN:
6ES7505-0KA00-0AB0
Type:
System Power Supply Module
SKU:
52973
Series:
SIMATIC S7-1500
Compatible With:
Siemens SIMATIC S7-1500 PLC Systems
Output Voltage:
24V DC
Output Current:
1.3A
Power Rating:
25W
Input Voltage:
24V DC
Form Factor:
DIN Rail Module
Country/Region of Manufacture:
Germany
Manufacture Date:
2015
Certifications:
UL, CE, EAC
Condition:
Used – Pulled from Working Environment
Seller Notes:
Power supply module only; no additional accessories included.
Condition Notes:
Siemens 6ES7505-0KA00-0AB0 S7-1500 System Power Supply, 25W 24VDC. Inspected and in good condition. Pulled from a decommissioned PLC cabinet where it was in use and functional. Please contact us with any questions.
View AllClose

Related Products

Related Products

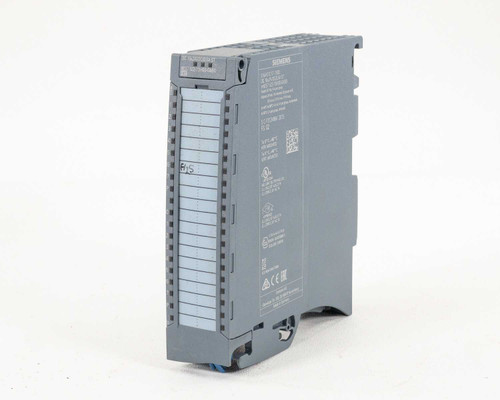

Siemens 6ES7522-1BH00-0AB0 SIMATIC S7-1500 DQ16 digital output module – left-angle view showing front wiring terminals and label Siemens 6ES7522-1BH00-0AB0 S7-1500 DQ16 digital output module – straight-on front view showing 16 terminal rows and status LEDs
