Sankyo

Sankyo 6TF-3C Torque Limiter Overload Protector Flange Type 10-30Nm

(No reviews yet) Write a Review
SKU:
48437
MPN:
6TF-3C
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Sankyo 6TF-3C Torque Limiter side view showing model label and flange body with surface wear

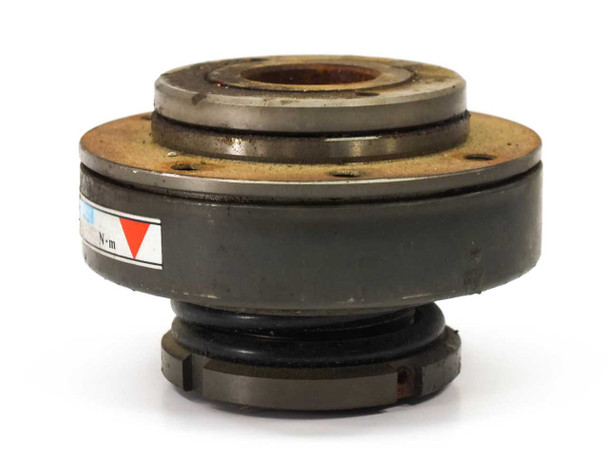

  • Sankyo 6TF-3C Torque Limiter opposite side view showing Nm torque scale label and lower hub

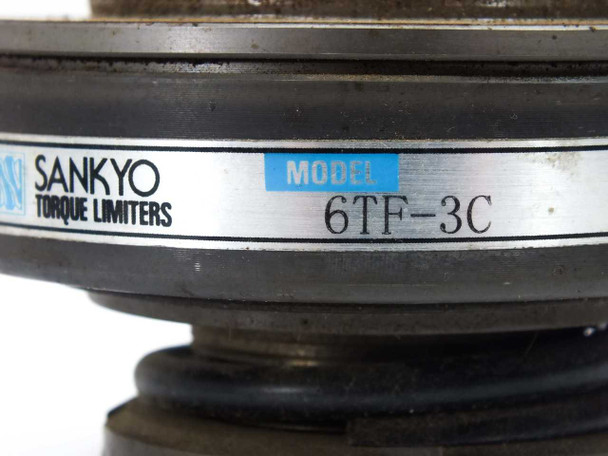

  • Sankyo 6TF-3C Torque Limiter close-up of model label reading 'SANKYO TORQUE LIMITERS MODEL 6TF-3C'
  • Sankyo 6TF-3C Torque Limiter top flange view showing bolt holes, center bore, and surface oxidation
  • Sankyo 6TF-3C Torque Limiter bottom hub view showing bore opening, snap ring groove, and body condition
$90.00
Was: $200.00
Current Stock: 7

Sold Out

Description

Sankyo 6TF-3C Torque Limiter Overload Protector Flange Type 10-30Nm

Mechanical torque limiter designed to protect drive systems from overload conditions. This flange-mount unit provides adjustable torque protection and is commonly used in industrial automation equipment.

Specifications & What's Included

  • Brand: Sankyo
  • Model: 6TF-3C
  • Type: Mechanical Torque Limiter / Overload Protector
  • Torque Range: 10–30 Nm (adjustable tripping torque)
  • Mounting Style: Flange Mount
  • Dimensions: 88 × 88 × 59 mm
  • Manufactured in Japan
  • Unit only; no accessories included

Applications

Suitable for indexing drives, servo systems, and machine tool drives requiring overload protection in industrial automation systems.

Condition: Used
This Sankyo 6TF-3C Torque Limiter shows moderate surface oxidation and wear on the flange face and body consistent with industrial use — visible in photos. The unit is mechanically intact with no visible damage to the bore, hub, or body. It has not been bench-tested at our facility. Please view our photo set and contact us with any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sankyo
Model:
6TF-3C
MPN:
6TF-3C
SKU:
48437
Condition:
Used – Inspected
Seller Notes:
Unit only, no accessories included.
Form Factor:
Flange Type
Torque Range:
10 - 30 Nm (adjustable tripping torque)
Dimensions:
88 mm x 88 mm x 59 mm (3.5 x 3.5 x 2.25 in)
Type:
Mechanical Torque Limiter / Overload Protector
Mounting Style:
Flange Mount
Country of Manufacture:
Japan
Application:
Drive train overload protection, industrial automation
Compatible With:
Indexing drives, servo systems, machine tool drives
Condition Notes:
This Sankyo 6TF-3C Torque Limiter shows moderate surface oxidation and wear on the flange face and body consistent with industrial use — visible in photos. The unit is mechanically intact with no visible damage to the bore, hub, or body.
