Sandex

Sandex 4.5E E-Series Oscillating Drive Sankyo 6TF-1C Torque Limiter Indexer

(No reviews yet) Write a Review
SKU:
47012
MPN:
4.5E
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
22.00 LBS
Shipping:
Calculated at Checkout
  • Sandex 4.5E E-Series Oscillating Indexing Drive with Sankyo 6TF-1C Torque Limiter and M-40R20 chain sprocket – three-quarter front view
  • Sandex 4.5E Oscillating Drive with Sankyo 6TF-1C Torque Limiter – right-side view showing rear output flange port
  • Sankyo 6TF-1C Torque Limiter label close-up showing model number and serial number T225384
  • Sandex 4.5E Oscillating Drive – top-down view of Sankyo torque limiter output flange with center bore and bolt pattern

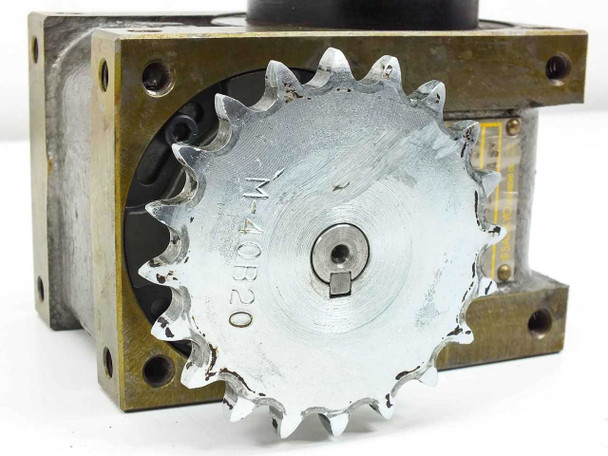

  • Sandex 4.5E drive body – bottom/side view with M-40R20 chain sprocket on input shaft
  • Sandex nameplate label close-up showing model 4.5E, serial E047581, and part number 02067B-L1A6
$425.00
Was: $850.00
Current Stock: 1

Sold Out

Description

Sandex 4.5E E-Series Oscillating Drive Sankyo 6TF-1C Torque Limiter Indexer

Oscillating indexing drive unit designed for automated machinery requiring controlled rotational positioning and torque management. Combines a Sandex 4.5E drive body with an integrated Sankyo 6TF-1C torque limiter for load protection.

Specifications & What's Included

  • Brand: Sandex | Model: 4.5E | MPN: E047581
  • Type: Oscillating Indexing Drive, E-Series
  • Torque Limiter: Sankyo 6TF-1C
  • Sprocket: M-40R20 chain drive
  • Housing: Cast iron heavy-duty metal construction
  • Mount: Inline / bolted configuration
  • Manufacture: Japan

Applications

Used in automated assembly and packaging systems where controlled indexing and load-limiting functionality are required. The oscillating drive mechanism suits machinery needing precise positioning with torque protection to prevent damage during jam conditions or overload. Compatible with integrated indexing and assembly machine systems that accept chain-drive input and bolted mounting interfaces.

Condition: Used
This Sandex 4.5E E-Series Oscillating Indexing Drive with Sankyo 6TF-1C Torque Limiter has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The cast iron drive body shows normal industrial wear — scuffing and paint wear on the housing exterior consistent with machine installation. The Sankyo torque limiter and output flange are intact with no visible damage. The M-40R20 chain sprocket on the input shaft is present and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sandex
Model:
4.5E
MPN:
E047581
Secondary Model:
02067B-L1A6
Type:
Oscillating Indexing Drive
Series:
E-Series
Torque Limiter Model:
Sankyo 6TF-1C
Torque Limiter Brand:
Sankyo
Sprocket:
M-40R20 chain sprocket
Drive Body Material:
Cast iron / heavy-duty metal housing
SKU:
47012
Seller Notes:
Includes Sankyo 6TF-1C torque limiter and M-40R20 chain sprocket
Country/Region of Manufacture:
Japan
Application:
Automated assembly, packaging, indexing machinery
Form Factor:
Inline / Bolted Mount
Compatible With:
Automated indexing and assembly machine systems
Condition Notes:
Sandex 4.5E E-Series Oscillating Drive with Sankyo 6TF-1C Torque Limiter. Inspected, in good used condition. Pulled from a working environment where it was in active use and functional. Normal industrial wear on housing. M-40R20 sprocket included.
View AllClose

Related Products

Related Products

Sankyo 6TF-1C Torque Limiter with Sandex 4.5E Oscillating Drive — front-left 3/4 view showing input shaft and flanged rotary output on top Sankyo 6TF-1C Torque Limiter with Sandex Oscillating Drive — rear-right 3/4 view showing output flange face and drive body mounting bolts
Add to Cart
Quick view

Sankyo 6TF-1C Torque Limiter Sandex 4.5E Oscillating Drive 02067R-L1A6 180°

Sankyo

$425.00
Was: $850.00
Sankyo 6TF-1C Torque Limiter Sandex 4.5E Oscillating Drive 02067R-L1A6 180°This listing is for a Sankyo 6TF-1C Torque Limiter mounted with a Sandex 4.5E Oscillating Drive, part number 02067R-L1A6,...
46850
SKU:
46850
Availability:
Usually ships within 1–2 business days.
Weight:
16.00 LBS
Brand:
Sankyo
Model:
6TF-1C
Secondary Model:
4.5E
MPN:
02067R-L1A6
Type:
Torque Limiter with Oscillating Drive
SKU:
46850
Seller Notes:
Unit only — no accessories. Inspected and in good condition.
Country/Region of Manufacture:
Japan
Drive Series:
Sandex Oscillating Drive
Rotation / Oscillation Angle:
180°
Overall Dimensions:
6.75 x 5.00 x 4.75 in
Form Factor:
Compact Inline Unit
Application:
Indexing / Oscillating Automation Machinery
Output Shaft:
Flanged rotary output (visible in photos)
Input Shaft:
Horizontal input shaft (extending from drive body)
Condition Notes:
Sankyo 6TF-1C Torque Limiter / Sandex 4.5E Oscillating Drive, 02067R-L1A6. Inspected and in good used condition. Housing shows normal industrial wear; flanges, shafts, and nameplates intact. No damage observed.
Sandex 4.5D Indexing Drive with Sankyo 6TF-3C Torque Limiter — right front three-quarter view showing chain sprocket input Sandex 4.5D Indexing Drive — left front three-quarter view with blue Sandex nameplate visible on housing
Add to Cart
Quick view

Sandex 4.5D Indexing Drive 06289L-L2A1 with Sankyo 6TF-3C Torque Limiter

Sandex

$400.00
Was: $800.00
Sandex 4.5D Indexing Drive 06289L-L2A1 with Sankyo 6TF-3C Torque LimiterRotary cam indexing drive with integrated torque limiter, designed for controlled positioning and load protection in automated...
47218
SKU:
47218
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Brand:
Sandex / Sankyo Seisakusho
Model:
4.5D
MPN:
06289L-L2A1
Secondary Model:
6TF-3C
Type:
Rotary Cam Indexing Drive with Torque Limiter
SKU:
47218
Product Line:
D-Series
Torque Limiter Model:
Sankyo 6TF-3C
Drive Manufacturer:
Sankyo Seisakusho Co., Tokyo, Japan
Input Drive Type:
Chain Sprocket
Output Configuration:
Vertical output shaft with flange mount
Mounting Style:
Flange / Base Mount
Country/Region of Manufacture:
Japan
Seller Notes:
Includes Sankyo 6TF-3C torque limiter mounted on output shaft
Application:
Automated assembly, packaging, machine indexing
Compatible With:
Industrial automation and assembly machinery requiring rotary indexing
Condition Notes:
This Sandex 4.5D Indexing Drive with Sankyo 6TF-3C Torque Limiter has been inspected and is in good used condition. Pulled from a working environment. Housing shows normal wear; some surface rust on the sprocket and input side.
Sandex 7FU indexing drive pair with Sankyo 6TF-07C torque limiters mounted on top — front view showing both units connected by shaft coupling Sandex 7FU rotary indexing drive pair — three-quarter rear view showing adjustment knob, shaft coupling, and gear pinion detail
Add to Cart
Quick view

Sandex 7FU R3862L-S3VW1/X Indexing Drive w/ Sankyo 6TF-07C Torque Limiter Pair

Sandex

$325.00
Was: $900.00
Sandex 7FU R3862L-S3VW1/X Indexing Drive w/ Sankyo 6TF-07C Torque Limiter Pair Rotary indexing drive assembly for industrial automation and material handling. This lot includes two matched indexing...
48458
SKU:
48458
Availability:
Usually ships within 1-2 business days.
Weight:
83.00 LBS
Brand:
Sandex / Sankyo Seisakusho
Model:
7FU
MPN:
R3862L-S3VW1/X
SKU:
48458
Condition:
Used – Inspected
Seller Notes:
Sold as matched pair of 2 indexing drives with 2 torque limiters mounted
Quantity Included:
2 indexing drives, 2 Sankyo 6TF-07C torque limiters
Torque Limiter Model:
Sankyo 6TF-07C
Product Type:
Rotary / Linear Parts Handler Indexing Drive
Output Allowable Thrust Load:
68.6 N
Output Allowable Radial Load:
137.2 N
Input Allowable Thrust Load:
980 N
Input Max Repetitious Bending Force:
931 N
Form Factor:
Benchtop / Inline Assembly
Country of Manufacture:
Japan
Application:
Industrial automation, assembly line indexing, pick-and-place
Condition Notes:
This Sandex 7FU rotary indexing drive pair with Sankyo 6TF-07C torque limiters has been inspected and shows typical wear consistent with industrial use — some surface oxidation on the cast housings is visible.

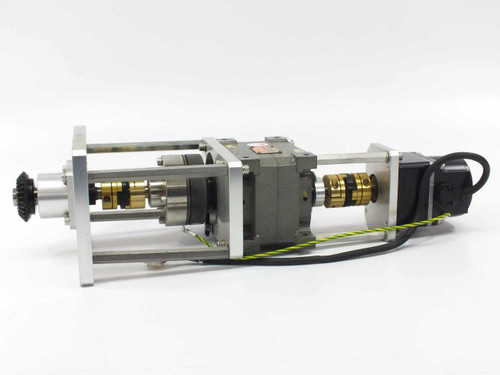

Sankyo Sandex P50 parallel indexing drive assembly with Vexta GF4G50 gear head and torque limiter – right-side 3/4 view Sankyo Sandex P50 parallel indexing drive assembly – left-side 3/4 view showing bevel gear output and yellow ground wire
