Sankyo 6TF-1C Torque Limiter Sandex 4.5E Oscillating Drive 02067R-L1A6 180°
This listing is for a Sankyo 6TF-1C Torque Limiter mounted with a Sandex 4.5E Oscillating Drive, part number 02067R-L1A6, manufactured by Sankyo Seisakusho Co. of Japan. The unit combines an overload-protection torque limiter with a cam-driven oscillating output, delivering a 180° reciprocating rotary motion from a continuous rotary input. It is a compact, self-contained inline assembly with a flanged rotary output on top and a horizontal input shaft extending from the drive body.
Specifications & What's Included
- Manufacturer: Sankyo (Sankyo Seisakusho Co., Japan)
- Torque Limiter Model: 6TF-1C
- Oscillating Drive Series: Sandex
- Oscillating Drive Model: 4.5E
- Part Number: 02067R-L1A6
- Oscillation / Rotation Arc: 180°
- Overall Dimensions: 6.75 × 5.00 × 4.75 in
- Output: Flanged rotary output (bolt-circle flange, top-mounted)
- Input: Horizontal input shaft extending from drive body
- Construction: Cast iron / steel housing with brass-toned flange faces
- Unit only — no motor, no accessories included
Applications
Sankyo Sandex Oscillating Drives are cam-driven mechanical motion devices that convert continuous rotary input into precise, repeatable oscillating (back-and-forth) rotary output. They are widely used in automated assembly machinery, packaging lines, transfer systems, and industrial automation equipment where a reliable, shock-free reciprocating motion is needed at a defined angle — in this case 180°. The integrated Sankyo torque limiter provides overload protection, automatically slipping and disengaging the drive if a jam or overload occurs, protecting both the machine and the tooling downstream. Sankyo (Sankyo Seisakusho) has been a leading Japanese manufacturer of indexing and oscillating drives since the mid-twentieth century, and their Sandex series became a standard in precision automation applications across electronics assembly, food processing, and general industrial machinery. This style of combined oscillating drive and torque limiter remains in active use in legacy and current automation systems worldwide, particularly as a maintenance and replacement unit for existing machinery.

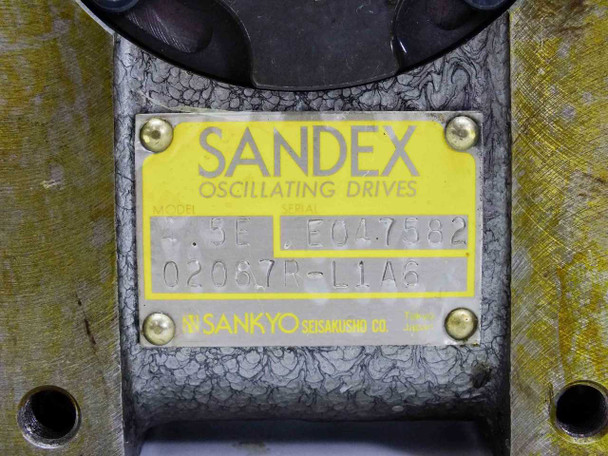

This Sankyo 6TF-1C Torque Limiter with Sandex 4.5E Oscillating Drive has been inspected and is in good used condition. The body and housing show some paint wear and surface discoloration consistent with prior industrial use — visible on the cast housing faces and yellow-painted flanges. The flanged rotary output and input shaft appear intact with no visible damage. Both nameplates (Sankyo Torque Limiters and Sandex Oscillating Drives) are legible and securely attached. No cracks, fractures, or missing hardware were observed. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sankyo |
Model: |
6TF-1C |
Secondary Model: |
4.5E |
MPN: |
02067R-L1A6 |
Type: |
Torque Limiter with Oscillating Drive |
SKU: |
46850 |
Seller Notes: |
Unit only — no accessories. Inspected and in good condition. |
Country/Region of Manufacture: |
Japan |
Drive Series: |
Sandex Oscillating Drive |
Rotation / Oscillation Angle: |
180° |
Overall Dimensions: |
6.75 x 5.00 x 4.75 in |
Form Factor: |
Compact Inline Unit |
Application: |
Indexing / Oscillating Automation Machinery |
Output Shaft: |
Flanged rotary output (visible in photos) |
Input Shaft: |
Horizontal input shaft (extending from drive body) |
Condition Notes: |
Sankyo 6TF-1C Torque Limiter / Sandex 4.5E Oscillating Drive, 02067R-L1A6. Inspected and in good used condition. Housing shows normal industrial wear; flanges, shafts, and nameplates intact. No damage observed. |
