Sandex 4.5D Indexing Drive 06289L-L2A1 with Sankyo 6TF-3C Torque Limiter

(No reviews yet) Write a Review
SKU:
47218
MPN:
4.5D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Shipping:
Calculated at Checkout

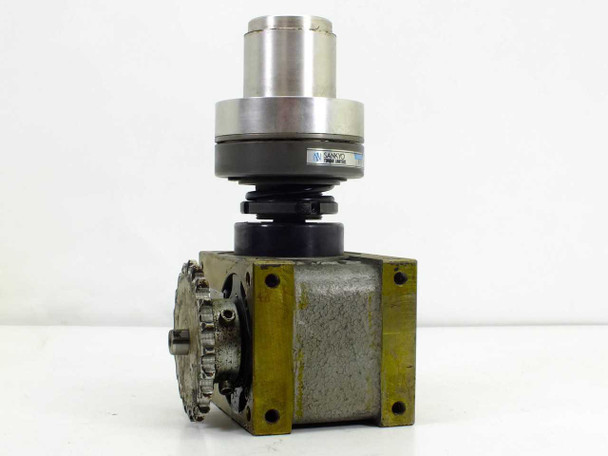

  • Sandex 4.5D Indexing Drive with Sankyo 6TF-3C Torque Limiter — right front three-quarter view showing chain sprocket input
  • Sandex 4.5D Indexing Drive — left front three-quarter view with blue Sandex nameplate visible on housing

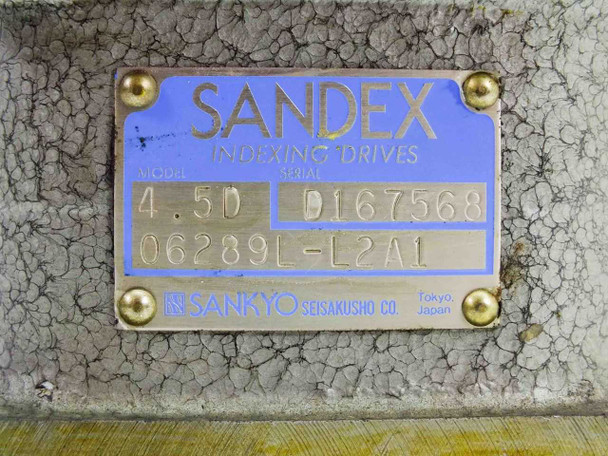

  • Sandex nameplate closeup — Model 4.5D, Serial D167568, Part Number 06289L-L2A1, Sankyo Seisakusho Co. Tokyo Japan
  • Sankyo Torque Limiters label closeup — Model 6TF-3C, Serial T225 partially visible
  • Sandex 4.5D Indexing Drive — right side profile view showing sprocket input and torque limiter assembly

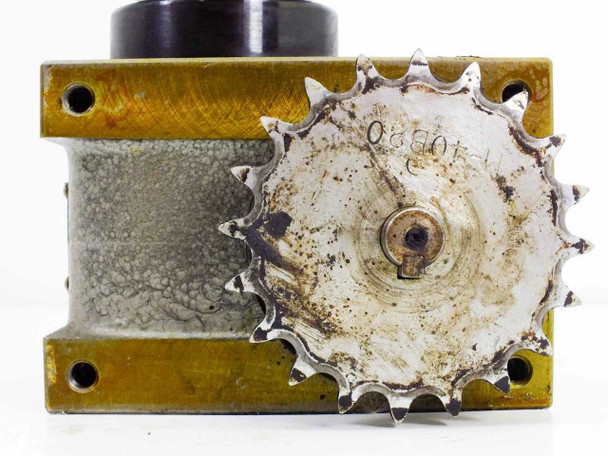

  • Sandex 4.5D Indexing Drive — bottom/input side view showing chain sprocket with surface rust and key slot

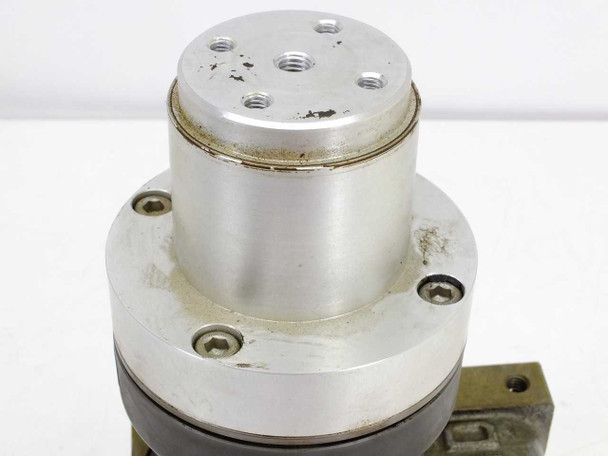

  • Sandex 4.5D Indexing Drive — top view of Sankyo 6TF-3C torque limiter output flange showing threaded mounting holes
$400.00
Was: $800.00
Current Stock: 2

Sold Out

Description

Sandex 4.5D Indexing Drive 06289L-L2A1 with Sankyo 6TF-3C Torque Limiter

Rotary cam indexing drive with integrated torque limiter, designed for controlled positioning and load protection in automated machinery. Chain sprocket input drives a vertical output shaft with flange mount configuration.

Specifications & What's Included

  • Model: Sandex 4.5D (MPN: 06289L-L2A1)
  • Torque Limiter: Sankyo 6TF-3C mounted on output shaft
  • Input: Chain sprocket drive
  • Output: Vertical shaft with flange mount
  • Manufacturer: Sankyo Seisakusho Co., Tokyo, Japan
  • Product Line: D-Series

Applications

Rotary indexing drives are standard components in automated assembly and packaging equipment, providing synchronized positioning for multi-station operations. The integrated torque limiter protects downstream machinery from overload conditions. Compatible with industrial automation systems requiring precise rotary indexing and load control, commonly found in transfer machinery, dial indexers, and multi-spindle assembly lines.

Condition: Used
This Sandex 4.5D D-Series Indexing Drive with Sankyo 6TF-3C Torque Limiter has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in active use. The cast housing shows typical surface wear including paint chips, scuffing, and areas of light surface rust particularly on the chain sprocket and input side — consistent with normal industrial service. The torque limiter body and output flange are intact and show no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sandex / Sankyo Seisakusho
Model:
4.5D
MPN:
06289L-L2A1
Secondary Model:
6TF-3C
Type:
Rotary Cam Indexing Drive with Torque Limiter
SKU:
47218
Product Line:
D-Series
Torque Limiter Model:
Sankyo 6TF-3C
Drive Manufacturer:
Sankyo Seisakusho Co., Tokyo, Japan
Input Drive Type:
Chain Sprocket
Output Configuration:
Vertical output shaft with flange mount
Mounting Style:
Flange / Base Mount
Country/Region of Manufacture:
Japan
Seller Notes:
Includes Sankyo 6TF-3C torque limiter mounted on output shaft
Application:
Automated assembly, packaging, machine indexing
Compatible With:
Industrial automation and assembly machinery requiring rotary indexing
Condition Notes:
This Sandex 4.5D Indexing Drive with Sankyo 6TF-3C Torque Limiter has been inspected and is in good used condition. Pulled from a working environment. Housing shows normal wear; some surface rust on the sprocket and input side.
