Quanex Solargain 614-7528-P93 Edge Tape Primed Butyl 19mm x 0.71mm 11 Rolls
The Quanex Solargain 614-7528-P93 is a primed butyl rubber edge glazing tape designed for sealing the perimeter of solar panels against air infiltration and moisture ingress. This listing is for one full carton containing 11 rolls of tape vacuum sealed in a Mylar barrier bag. The tape features a black butyl rubber compound with a blue release liner and a primed surface for improved adhesion to glass and flexible film substrates.
Specifications & What's Included
- Manufacturer: Quanex Building Products — Solargain product line
- Part Number: 614-7528-P93
- Secondary Part Number: 504225
- Set Code: LP02
- Tape Width: 19mm
- Tape Thickness: 0.71mm
- Length per Roll: 155m (approx. 509 ft)
- Rolls per Carton: 11 rolls
- Total Length per Carton: 5,610 ft / 1,710 m
- Material: Primed butyl rubber with release liner
- Compatible Substrates: Glass lites, ETFE flexible solar panel skins

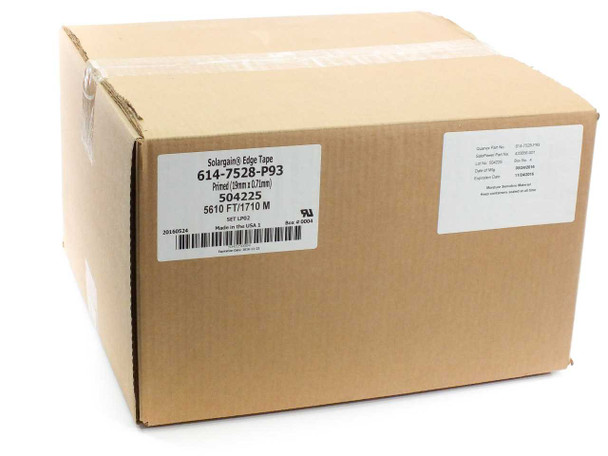

- Packaging: Rolls vacuum sealed in Mylar bag; bag housed in original manufacturer carton
- Carton Dimensions: 18" x 18" x 12"
- Country of Manufacture: USA

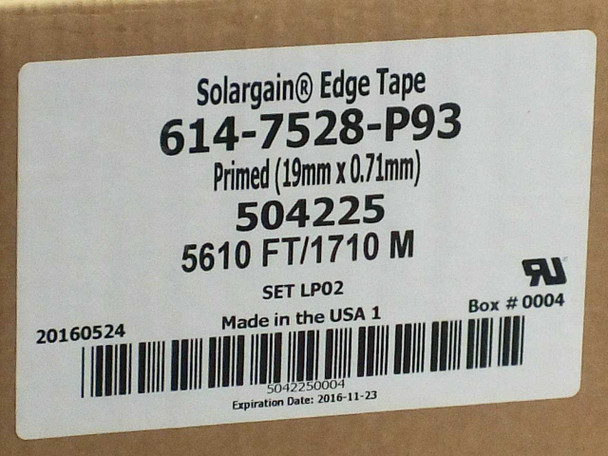

- Manufacture Date: May 2016 (per carton label)
- Note: One Mylar bag was opened for product photography; rolls are unused
Applications
Butyl rubber edge glazing tapes of this type are used in the manufacturing of solar panels as a primary sealant at the perimeter edge where the glazing layers meet the frame or laminate stack. The primed formulation promotes adhesion to both rigid glass lites and flexible ETFE (ethylene tetrafluoroethylene) top skins, which are common in thin-film and flexible photovoltaic modules. This tape was used by Solopower in their production processes for edge caulking and glazing on both glass-fronted and ETFE-fronted solar panels. It is suited for solar panel assembly operations requiring a conformable, moisture-resistant perimeter seal, and may also find application in architectural glazing and insulating glass unit (IGU) manufacturing where butyl edge sealants are specified.
This Quanex Solargain 614-7528-P93 Primed Butyl Edge Tape is new old stock in original manufacturer packaging. The 11 rolls are vacuum sealed inside a Mylar barrier bag, which is housed in the original sealed carton. Please note that one Mylar bag was opened for the product photos shown — the rolls remain unused and in new condition. The carton label confirms manufacturing date of May 2016 and a nominal expiration date of November 2016; buyers should assess suitability for their application given the storage age of the material. The box exterior shows light shelf wear consistent with warehouse storage but the contents are intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Quanex |
Product Line: |
Solargain |
Model: |
614-7528-P93 |
MPN: |
614-7528-P93 |
Secondary Part Number: |
504225 |
Set Code: |
LP02 |
SKU: |
52129 |
Type: |
Butyl Rubber Edge Glazing Tape |
Material: |
Butyl Rubber |
Surface Treatment: |
Primed |
Width: |
19mm |
Thickness: |
0.71mm |
Length Per Roll: |
155m (508 ft) |
Number of Rolls: |
11 rolls per box |
Total Length Per Box: |
5610 ft / 1710 m |
Application: |
Solar Panel Edge Glazing, Moisture & Air Sealing |
Compatible Substrates: |
Glass, ETFE flexible film solar panel skins |
Packaging: |
Vacuum sealed in Mylar bag, in original carton |
Box Dimensions: |
18" x 18" x 12" |
Country/Region of Manufacture: |
United States |
Seller Notes: |
11 rolls vacuum sealed in Mylar bag inside original box; one bag opened for photos. |
Condition: |
New |
Condition Notes: |
Quanex Solargain 614-7528-P93 butyl edge tape, new old stock. 11 rolls vacuum sealed in Mylar bag, original carton. One bag opened for photos; tape unused. Mfg date May 2016. Please assess suitability for age. |
