Description
Quanex Solargain 614-5050-P93 Edge Tape Primed Butyl 12.7x1.27mm 4650 ft 19 Rolls
Butyl rubber edge glazing tape designed for sealing and insulating glass and ETFE flexible solar panel edges. Primed surface with blue release backing on one side.
Specifications & What's Included
- Model: 614-5050-P93 (Secondary: 420055-001)
- Tape Width: 12.7 mm; Thickness: 1.27 mm
- Total Length: 4650 ft (1417 m) — 19 rolls per box
- Material: Butyl rubber, primed
- Release Backing: Blue plastic, one side
- UL Listed
- Manufactured: 05/19/2016
Applications
Edge tape is used in solar panel assembly and glazing applications for glass and flexible ETFE solar panels. The butyl rubber formulation provides moisture sealing and insulation at panel edges. Typically applied during manufacturing or assembly of photovoltaic modules and related glazed structures.
Condition: New

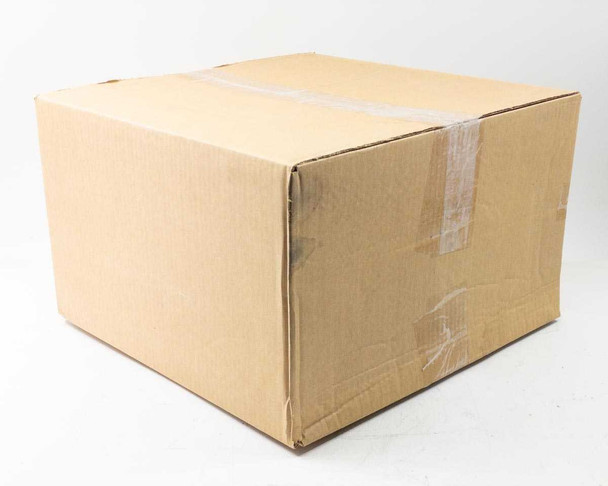

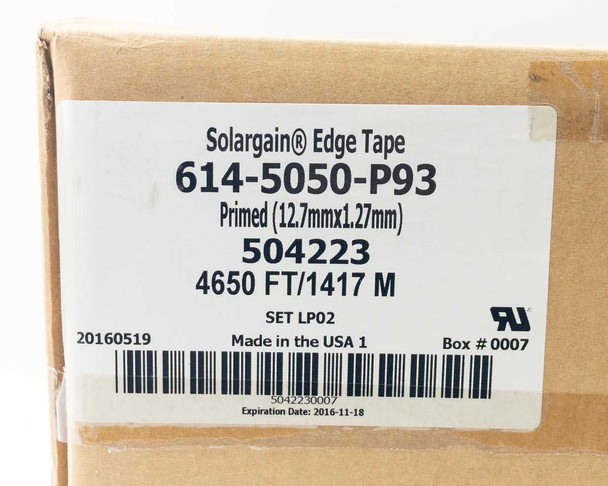

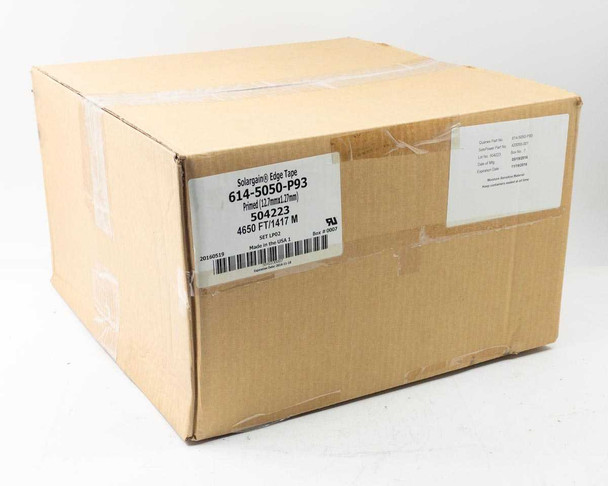

Quanex 614-5050-P93 Solargain Edge Tape Primed Butyl Rubber — 19 rolls, new and unused, vacuum-sealed in mylar inside the original cardboard box. Manufactured 05/19/2016 with printed expiration date of 11/19/2016, so this material is past its shelf life. When opened and tested, the tape is in excellent condition like new. The outer box has normal storage wear from sitting. See photos for details.
Quanex 614-5050-P93 Solargain Edge Tape Primed Butyl Rubber — 19 rolls, new and unused, vacuum-sealed in mylar inside the original cardboard box. Manufactured 05/19/2016 with printed expiration date of 11/19/2016, so this material is past its shelf life. When opened and tested, the tape is in excellent condition like new. The outer box has normal storage wear from sitting. See photos for details.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Quanex |
Model: |
614-5050-P93 |
MPN: |
614-5050-P93 |
Secondary Model: |
420055-001 |
Lot Number: |
504223 |
SKU: |
53202 |
Type: |
Butyl Rubber Edge Glazing Tape |
Product Family: |
Solargain Edge Tape |
Tape Width: |
12.7 mm |
Tape Thickness: |
1.27 mm |
Total Tape Length: |
4650 ft (1417 m) |
Quantity (Rolls per Box): |
19 rolls |
Release Backing: |
Blue release plastic, one side |
Surface Treatment: |
Primed |
Material: |
Butyl Rubber |
Compatible With: |
Glass and ETFE flexible solar panels |
Application: |
Edge glazing, insulator caulk for solar panels |
Packaging: |
Vacuum-sealed mylar bag, 19 rolls per box |
Date of Manufacture: |
05/19/2016 |
Expiration Date: |
11/19/2016 |
Country/Region of Manufacture: |
United States |
Condition: |
New — vacuum-sealed in original box |
Seller Notes: |
19 rolls per box, vacuum-sealed in thick mylar bag. SoloPower P/N 420055-001. |
Certifications: |
UL Listed (UL mark on box label) |
Set Code: |
LP02 |
Box Number: |
7 |
Moisture Sensitivity: |
Moisture Sensitive — keep containers sealed at all times |
Condition Notes: |
New unused, 19 rolls, vacuum-sealed. Mfg 05/19/2016, exp 11/19/2016 (past shelf life). Tested, excellent condition. Box has storage wear. |
