Netstal Sycap DA 110.240.5440 Board Diskjet 600 Injection Molder CD Replication
This is the Netstal Sycap DA 110.240.5440 control board, a logic/control PCB designed for use in the Netstal Diskjet 600 injection molding system as part of a CD disc replication line. The board carries the secondary part number 110.068.9171 and board designation BS AD 3.2.1.0. It was removed directly from a Steag Firstlight Unijet 60144 CD replication system that incorporated the Netstal Diskjet 600 injection molder.
Specifications & What's Included
- Manufacturer: Netstal / Sycap
- Part Number: 110.240.5440
- Secondary Part Number: 110.068.9171
- Board Designation: BS AD 3.2.1.0
- Board Type: Control / Logic PCB Module

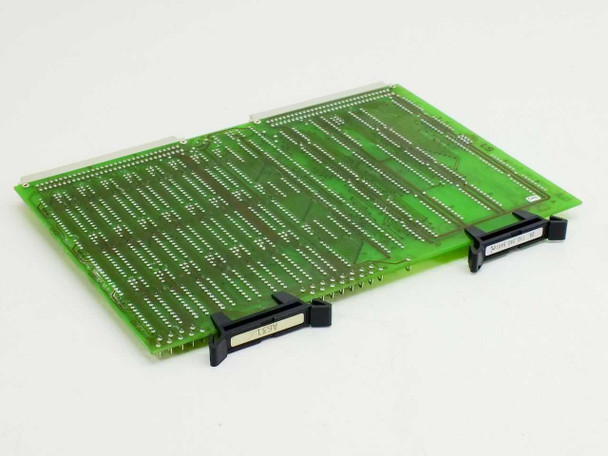

- Form Factor: Dual card-edge connector PCB (large multi-pin ribbon/card-edge connectors on two sides)
- Compatible System: Steag Firstlight Unijet 60144 CD Replication System
- Compatible Molder: Netstal Diskjet 600 Injection Molder
- Visible ICs: Multiple DIP-packaged ICs and socketed logic chips across the board surface; one visible IC reads D58837N / N8137N (date code P9612AD)
- Board only — no cables or accessories included
Applications
The Netstal Diskjet series was a line of specialized injection molding machines purpose-built for optical disc (CD and DVD) replication, integrated with disc printing and handling systems such as the Steag Firstlight Unijet. In a CD replication line, the injection molder forms raw polycarbonate discs, which are then lacquered, metallized, and printed in downstream stations. Control boards like the DA 110.240.5440 manage machine logic, sequencing, and communication between the molder and the broader replication line. These systems were widely deployed in commercial disc manufacturing facilities throughout the 1990s and into the 2000s, when CD and DVD production volumes were at their peak. Replacement control boards for legacy Netstal Diskjet systems are sought by facilities still running this equipment for niche CD/DVD pressing or archival duplication work.

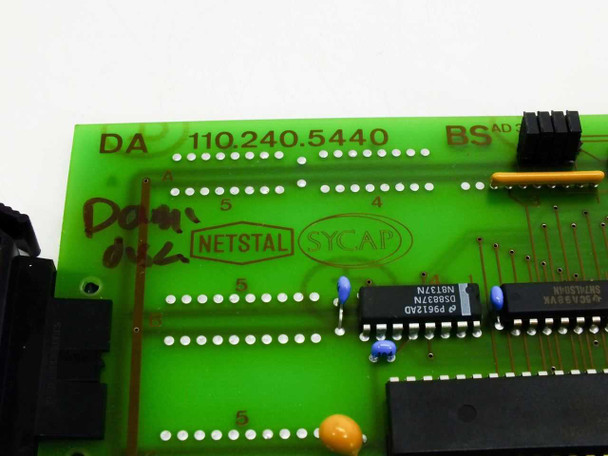

This Netstal Sycap DA 110.240.5440 control board was pulled from a working Steag Firstlight Unijet 60144 CD replication system paired with a Netstal Diskjet 600 injection molder. The board is in good used condition. The PCB shows normal handling wear; a handwritten marker notation ('Dom duc') is visible on the board surface near the Netstal/Sycap label — this appears to be a production or routing mark from the original system. All visible components appear intact with no obvious physical damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Netstal |
Model: |
DA 110.240.5440 |
MPN: |
110.240.5440 |
Secondary Model: |
110.068.9171 |
SKU: |
45991 |
Type: |
Control PCB / Logic Board |
Board Designation: |
BS AD 3.2.1.0 |
Compatible With: |
Netstal Diskjet 600 Injection Molder |
Compatible With 2: |
Steag Firstlight Unijet 60144 CD Replication System |
Application: |
CD Disc Replication / Injection Molding Control |
Form Factor: |
PCB Card / Module |
Connector Type: |
Multi-pin edge connectors (dual large ribbon/card-edge) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Board only; removed from Steag Firstlight Unijet 60144 CD replication system |
Condition Notes: |
Netstal Sycap DA 110.240.5440 control board pulled from a working Steag Firstlight Unijet 60144 CD replication system. Good used condition; normal handling wear. Handwritten marker notation visible on PCB surface. |
