Netstal

Netstal SLA Bitbus Interface Board 110.240.7781 Sycap DiskJet 600/110 Molder

(No reviews yet) Write a Review
SKU:
48751
MPN:
SLA
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

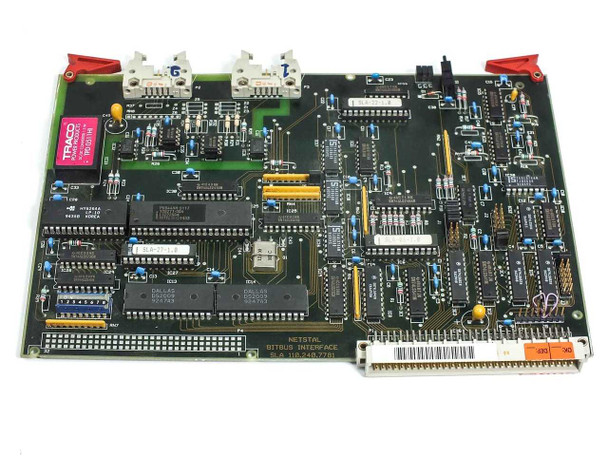

  • Netstal SLA Bitbus Interface Board 110.240.7781 – full front component side view showing ICs, Traco TPD 0511HI DC/DC converter, and edge connector
  • Netstal SLA Bitbus Interface Board 110.240.7781 – bare solder side (reverse) showing PCB traces and edge connector pins
  • Netstal Bitbus Interface Board close-up of silkscreen label reading 'NETSTAL BITBUS INTERFACE SLA 110.240.7781' with Dallas DS2009 IC visible
  • Netstal SLA Bitbus Board – upper-right quadrant showing Traco Power Products TPD 0511HI 1.5W DC/DC converter module and surrounding ICs
  • Netstal SLA Bitbus Board – close-up of Traco Power Products TPD 0511HI DC/DC converter label and adjacent passive components
  • Netstal SLA Bitbus Board – close-up of two white terminal connectors labeled P2 and P1 with red ejector bracket showing part number 110.240.7781
  • Netstal SLA Bitbus Interface Board – left-side and lower quadrant showing multiple DIP ICs, oscillator, and ribbon connector
  • Netstal SLA Bitbus Interface Board – bottom edge showing large multi-pin card-edge connector and orange asset tag
$120.00
Was: $250.00
Current Stock: 1

Sold Out

Description

Netstal SLA Bitbus Interface Board 110.240.7781 Sycap DiskJet 600/110 Molder

Bitbus interface control card for Netstal Sycap DiskJet 600/110 CD/DVD injection molding systems. This board manages serial field bus communication between the molder's controller and peripheral devices.

Specifications & What's Included

  • Model: 110.240.7781 (Alternate: 100.240.7780, 100.240.7780C)
  • Type: SLA Bitbus Interface Board / Control Card
  • Interface: Bitbus (Intel serial field bus protocol)
  • Onboard DC/DC Converter: Traco Power TPD 0511HI, 1.5W
  • Key IC: Dallas DS2009
  • Compatible Controllers: Leitrechn W812, W813
  • Form Factor: PCB Module Card
  • Manufacture: Switzerland

Applications

This board type serves as a communication interface in Netstal injection molding systems, specifically the DiskJet 600/110 series used for CD/DVD production. The Bitbus protocol enables data transfer between the main molder controller and auxiliary systems. Boards of this type were standard in Netstal equipment through the 1990s and early 2000s, supporting legacy industrial automation in precision plastic injection molding operations.

Condition: Used
This Netstal SLA Bitbus Interface Board (110.240.7781) was pulled from a working Sycap DiskJet 600/110 injection molder in an active CD/DVD manufacturing facility. The board is in good used condition with normal wear consistent with production use. Component surfaces are clean, the Traco Power TPD 0511HI DC/DC converter and onboard ICs appear intact, and the card-edge and terminal connectors show no obvious damage. Minor scuffing on the PCB edges is visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Netstal
Model:
110.240.7781
MPN:
110.240.7781
Secondary Model:
100.240.7780 / 100.240.7780C
Type:
Bitbus Interface Board / Control Card
SKU:
48751
Compatible With:
Netstal Sycap DiskJet 600/110 Injection Molder
Alternate Part Numbers:
100.240.7780, 100.240.7780C, 110.240.7780, SLA BITBUS
Series / Designation:
SLA-27-1.0, SLA-22-1.0, SLA-06-1.0
Controller References:
Leitrechn W812, Leitrechn W813
Onboard DC/DC Converter:
Traco Power TPD 0511HI, 1.5W
Key IC:
Dallas DS2009 (date code 9247A3)
Interface / Protocol:
Bitbus (Intel serial field bus)
Form Factor:
Card / PCB Module
Application:
CD/DVD injection molder machine control
Country/Region of Manufacture:
Switzerland
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working Netstal DiskJet 600/110 CD/DVD molder system
Condition Notes:
Netstal SLA Bitbus Interface Board 110.240.7781 pulled from a working Netstal Sycap DiskJet 600/110 CD/DVD injection molder. Good used condition; components intact, connectors undamaged. Normal production wear. Photos available.
View AllClose
