Netstal 110.240.9593 Sycap Operator Panel DiskJet 600/110 Injection Molder

Netstal 110.240.9593 Sycap Operator Panel DiskJet 600/110 Injection Molder

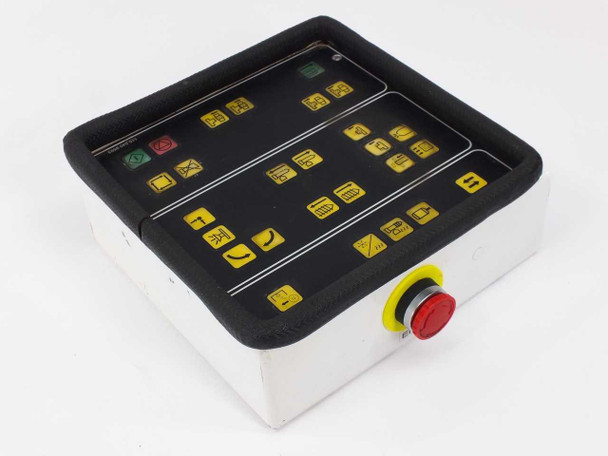

This is a Netstal Sycap Operator Panel (part number 110.240.9593) designed for use with the Netstal DiskJet 600/110 injection molding system. The assembly includes the operator panel enclosure, the 27-key membrane keypad (KOL 110.240.9539), and the Komplett mainboard (CAN 110.240.9335). A red mushroom-head emergency stop button is integrated into the front face of the enclosure.

Specifications & What's Included

• Operator panel part number: 110.240.9593
• Keyboard (KOL): 110.240.9539 – 27-key membrane icon keypad
• Mainboard (CAN): 110.240.9335 – Komplett mainboard
• Emergency stop: Red mushroom-head E-stop button with yellow safety ring
• Keypad layout: Three rows of icon-labeled membrane keys (yellow on black)
• Internal connectivity: Ribbon cable connecting keypad matrix PCB to mainboard
• Enclosure: White powder-coated metal housing with foam-bordered front bezel
• Mainboard components: Multiple ICs, electrolytic capacitors, small transformer, CE-marked power component (FAGO 23E01 visible)
• Compatible system: Netstal DiskJet 600/110 injection molder / Netstal Sycap Temp Controller
• Application: CD/DVD disc injection molding production
• Country of manufacture: Switzerland

Applications

The Netstal DiskJet series was a line of high-speed injection molding machines purpose-built for optical disc manufacturing — producing CD, DVD, and related disc substrates at high cycle rates. The Sycap system served as the machine's temperature control and process management platform, with this operator panel providing the primary interface for machine operators on the production floor. The membrane keypad with icon-based function keys gave operators direct access to mold temperature zones, process parameters, and machine states without requiring a separate display terminal. Netstal, a Swiss manufacturer, was one of the dominant suppliers of optical disc molding equipment during the peak of CD and DVD disc manufacturing in the 1990s and 2000s. Replacement operator panels and control components for this equipment are sought by facilities still running legacy Netstal disc lines, as well as by technicians maintaining or refurbishing these machines.
