Motorola

Motorola SGLN5213A VCC II SLN5073C Microcite CITE Card 8484706R04 Issue D

(No reviews yet) Write a Review
SKU:
48359
MPN:
SGLN5213A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Motorola SGLN5213A VCC II Microcite CITE Card — top-side component view showing populated PCB with ICs and yellow capacitors
  • Motorola SGLN5213A SLN5073C Microcite CITE Card — bottom/solder-side PCB view showing trace layout and edge connector
  • Motorola SGLN5213A VCC II card — close-up of edge connector faceplate showing 'VCC SGLN5213A' label and dual card-edge connectors

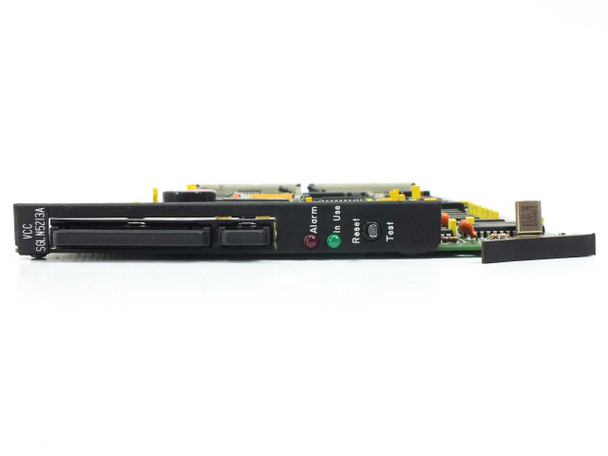

  • Motorola SGLN5213A VCC II — side profile view of faceplate showing Alarm, In Use, Reset, and Test indicator LEDs

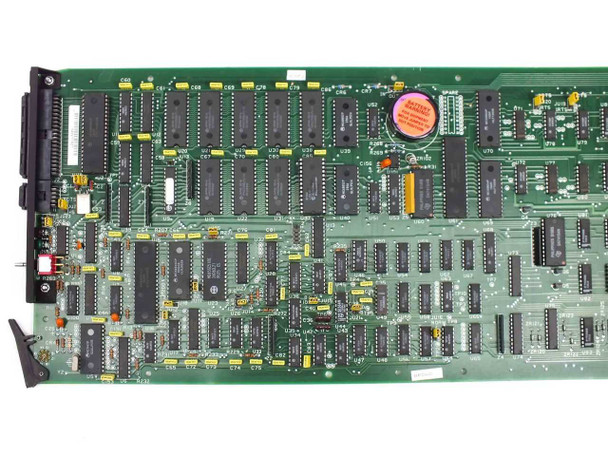

  • Motorola SGLN5213A Microcite CITE Card — top-side detail showing full PCB component layout including ICs, capacitors, and connector assemblies
  • Motorola SGLN5213A VCC II SLN5073C Microcite Card Micro Cell Site CITE Card
$80.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Motorola SGLN5213A VCC II SLN5073C Microcite CITE Card 8484706R04 Issue D

Voice Channel Card II (VCC II) module for Motorola Micro C-I-T-E cellular telephone switch systems. Supports HDII/NAMPS operation in Motorola C25HDM01H7AF Microcite base stations.

Specifications & What's Included

  • Brand: Motorola
  • Model: SGLN5213A / SLN5073C
  • MPN: 8484706R04
  • Hardware Revision: Issue D
  • Product Series: VCC II (Voice Channel Card II)
  • Compatible With: Motorola C25HDM01H7AF Microcite Base Station HDII/NAMPS
  • Manufactured in United States
  • Card only (no accessories included)

Applications

Used in Motorola Micro C-I-T-E base station systems for voice channel processing and cellular telephone switching operations.

Condition: Used
This Motorola SGLN5213A VCC II Microcite CITE Card was pulled from a Motorola C25HDM01H7AF Microcite base station (HDII/NAMPS) and has been visually inspected. The PCB appears clean with no visible damage to components or connectors. It has not been bench-tested at our facility. Please view our photo set and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Motorola
Model:
SGLN5213A
Secondary Model:
SLN5073C
MPN:
8484706R04
SKU:
48359
Condition:
Used – Inspected
Seller Notes:
Card only; pulled from Motorola C25HDM01H7AF Microcite base station
Form Factor:
Card / Module
Compatible With:
Motorola C25HDM01H7AF Microcite Base Station HDII/NAMPS
Hardware Revision:
Issue D
Product Series:
VCC II (Voice Channel Card II)
Application:
Cellular telephone switch — Motorola Micro C-I-T-E system
Country of Manufacture:
United States
Condition Notes:
This Motorola SGLN5213A VCC II Microcite CITE Card was pulled from a Motorola C25HDM01H7AF Microcite base station (HDII/NAMPS) and has been visually inspected. The PCB appears clean with no visible damage to components or connectors.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose

Related Products

Related Products

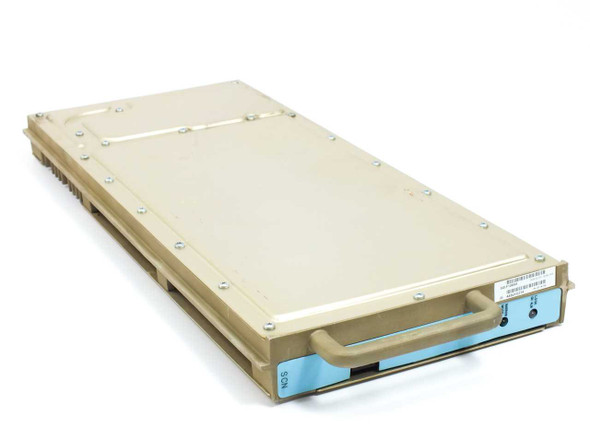

Motorola SGLF1060A Microcite Scan XPA Transceiver Line Card – top cover view showing gold-tan enclosure with carry handle Motorola SGLF1060A Microcite Scan XPA Transceiver Line Card – angled rear view showing multi-pin edge connector
Add to Cart
Quick view

Motorola SGLF1060A Microcite Scan XPA Transceiver Line Card Micro CITE

Motorola

$175.00
Was: $350.00
Motorola SGLF1060A Microcite Scan XPA Transceiver Line Card Micro CITE C25HDM01H7AF Transceiver line card module for Motorola Microcite base stations. Handles RF transceiver functionality within the...
12201
SKU:
12201
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
Motorola
Model:
SGLF1060A
MPN:
SGLF1060A
Secondary Model:
449UY02T4
SKU:
12201
Type:
Transceiver Line Card
Compatible With:
Motorola Microcite Base Station C25HDM01H7AF
Product Line:
Microcite Scan XPA
Application:
Cellular Base Station / Cell Site
Form Factor:
Card / Module
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Pulled from Motorola C25HDM01H7AF Microcite base station. Card only.
Condition Notes:
Motorola SGLF1060A Microcite Scan XPA Transceiver Line Card pulled from a C25HDM01H7AF Microcite base station. Visually inspected; shows typical field wear with minor chassis oxidation. Connectors appear intact. Card only.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov

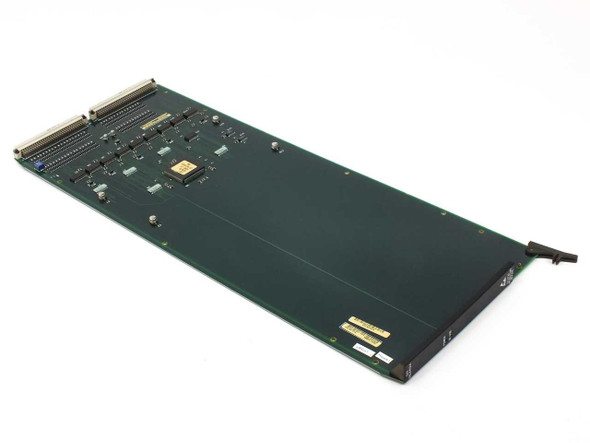

Motorola SGLN4131A SIO Microcite Card 8409630P04 – angled top view showing full PCB board length Motorola SGLN4131A SIO Microcite Card – reverse/bottom side of PCB showing solder side and edge connectors
