Motorola

Motorola SCSC SGLN4747B Microcite CITE Card Cell Site BNC RJ-45 V.35

(No reviews yet) Write a Review
SKU:
48357
MPN:
SGLN4747B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

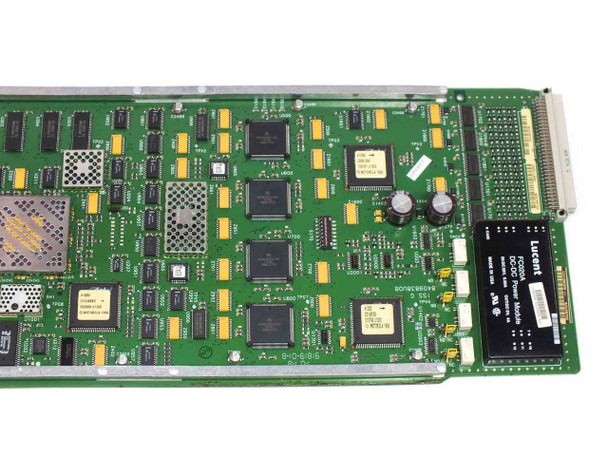

  • Motorola SCSC SGLN4747B Microcite CITE Card – angled top view showing populated PCB with Lucent power module and multiple IC chips
  • Motorola SCSC SGLN4747B Microcite CITE Card – bottom PCB view showing solder side with barcode label and Canada country-of-origin marking
  • Motorola SCSC SGLN4747B faceplate close-up showing SCSC label, SGLN4747B model number, BNC Ethernet A connector, and RJ-45 port
  • Motorola SCSC SGLN4747B faceplate full view showing Ethernet A BNC, RJ-45, ALARM and IN USE LEDs, V.35 DB-15 port, RESET button, TEST button, and Ethernet B BNC
  • Motorola SCSC SGLN4747B Microcite CITE Card – close-up of populated component side showing Intel Flash chips, Vacar 5V-to-9V converters, and Motorola 1994-dated ASIC
  • Motorola SCSC Microcite Card Micro Cell Site CITE Card SGLN4747B
$125.00
Was: $325.00
Current Stock: 1

Sold Out

Description

Motorola SCSC SGLN4747B Microcite CITE Card Cell Site BNC RJ-45 V.35

The Motorola SCSC SGLN4747B is a Site Controller (CITE) card designed for the Motorola Microcite cellular base station platform. The SCSC (Site Controller / CITE Card) functions as the central processing and control module within the Microcite chassis, coordinating cell site operations in HDII/NAMPS cellular networks. This card was pulled from a Motorola C25HDM01H7AF Microcite Base Station.

Specifications & What's Included

  • Manufacturer: Motorola
  • Model / MPN: SGLN4747B
  • Card Type: SCSC – Site Controller / Micro C-I-T-E Card
  • Compatible System: Motorola Microcite C25HDM01H7AF (HDII/NAMPS)
  • Faceplate Interfaces: Ethernet A (BNC), Ethernet B (BNC), RJ-45, V.35 (DB-15)
  • Indicators: ALARM (red LED), IN USE (green LED)
  • Controls: RESET button, TEST button
  • Country of Manufacture: Canada (PCB marking)
  • Includes: Card only — no chassis, cables, or accessories

Applications

Used as the site controller in Motorola Microcite HDII/NAMPS cellular base stations; supports legacy cellular infrastructure maintenance and spare parts replacement.

Condition: Used
This Motorola SCSC SGLN4747B Microcite CITE Card Cell Site controller was removed from a functioning telecom environment where it had been actively deployed. The unit shows typical cosmetic wear consistent with professional use and has been visually inspected. All connector interfaces including BNC and RJ-45 ports remain intact and functional.
View AllClose

Warranty Information

Sold as-is, used surplus. No warranty is expressed or implied. Please contact us with any questions before purchasing.
View AllClose

Additional Information

Brand:
Motorola
Model:
SGLN4747B
Secondary Model:
SCSC
MPN:
SGLN4747B
SKU:
48357
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only; pulled from Motorola C25HDM01H7AF Microcite Base Station (HDII/NAMPS)
Form Factor:
Card/Module
Compatible With:
Motorola Microcite C25HDM01H7AF Base Station, HDII/NAMPS platform
Country of Manufacture:
Canada
Interface Type:
BNC (Ethernet A, Ethernet B), RJ-45, V.35 (DB-15)
Card Type:
SCSC – Site Controller / CITE Card
Application:
Cellular base station site controller; Motorola Micro C-I-T-E (CITE) Cellular Telephone Switch
System:
Motorola Microcite HDII/NAMPS
Condition Notes:
Motorola SGLN4747B Microcite CITE Card pulled from working telecom environment. Shows normal use wear. BNC & RJ-45 connectors intact. Visually inspected.
View AllClose
