Description
Mitsubishi SD-N50 Magnetic Contactor 50A 3-Pole 220V Coil THN-60 Overload Relay

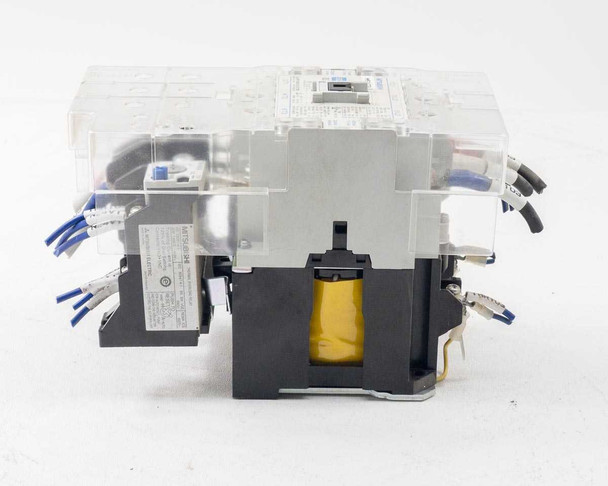

The Mitsubishi SD-N50 is a 3-pole magnetic contactor used to switch motor and power circuits on and off via a low-voltage control signal to its coil. Contactors like this are commonly used in motor control centers, machine control panels, and industrial distribution equipment to start, stop, and protect three-phase loads. This unit is paired with a Mitsubishi THN-60 thermal overload relay, forming a standard combination motor starter/protection assembly.
Specifications & What's Included
- Mitsubishi SD-N50 magnetic contactor
- Current rating: 50A
- Configuration: 3-pole
- Coil voltage: 220V AC
- Includes Mitsubishi THN-60 thermal overload relay
- Includes UN-CV500 cover
- Includes UN-CZ501 cover

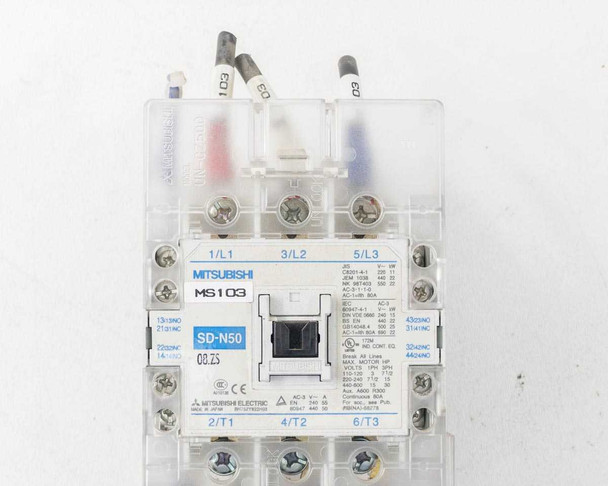

- Main terminals labeled 1/L1, 3/L2, 5/L3 (line side) and 2/T1, 4/T2, 6/T3 (load side)

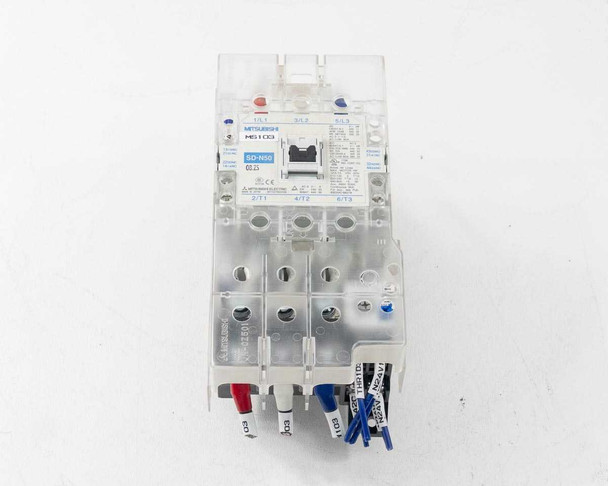

- Clear protective cover over contactor mechanism

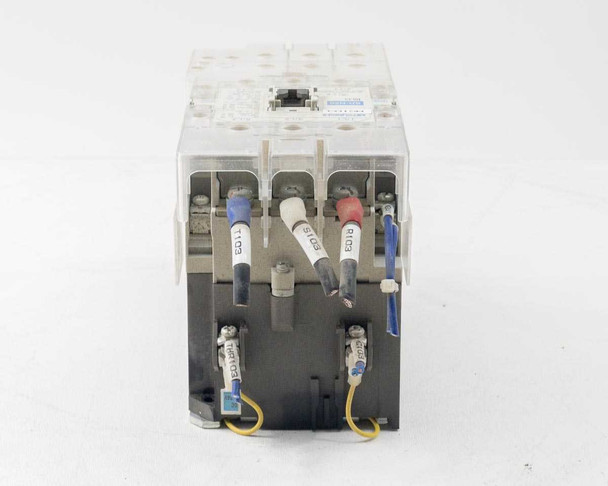

- Wire markers/labels attached from prior panel installation
Applications
Magnetic contactors like the SD-N50 are used throughout industrial control panels, motor control centers, and machine tool equipment to energize and de-energize three-phase motors, pumps, compressors, conveyors, and other AC loads. When combined with a thermal overload relay such as the THN-60, the assembly also provides overload protection, tripping the circuit if current draw exceeds the relay's set point. This type of contactor/overload combination is a standard building block in legacy and modern electrical distribution panels, OEM machinery, and industrial automation systems, and remains widely used for maintaining and repairing existing equipment.
This used Mitsubishi SD-N50 magnetic contactor was pulled from a larger control panel. It's rated 50A, 3-pole, with a 220V coil, and includes the Mitsubishi THN-60 thermal overload relay along with the UN-CV500 and UN-CZ501 covers. The clear cover and terminal blocks are in good cosmetic condition, with some wire labels still attached from its prior installation. It has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Mitsubishi Electric |
Model: |
SD-N50 |
MPN: |
SD-N50 |
Secondary Model: |
THN-60 |
Type: |
Magnetic Contactor |
SKU: |
53205 |
Seller Notes: |
Includes Mitsubishi THN-60 thermal overload relay and UN-CV500 & UN-CZ501 covers |
Country/Region of Manufacture: |
Japan |
Coil Voltage: |
220V AC |
Current Rating: |
50A |
Number of Poles: |
3 |
Phase: |
Three Phase |
Form Factor: |
Panel/DIN Mount Contactor |
Overload Relay Model: |
THN-60 |
Cover Part Numbers: |
UN-CV500, UN-CZ501 |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Used Mitsubishi SD-N50 magnetic contactor (50A, 3-pole, 220V coil), pulled from a control panel. Includes THN-60 overload relay and UN-CV500/UN-CZ501 covers. Good cosmetic condition, not bench-tested. Contact us with questions. |
