Hitachi

Hitachi H80 AC Magnetic Contactor AC600V 80A 3-Phase 200-220V Coil 31H99

(No reviews yet) Write a Review
SKU:
45551
MPN:
AC600V H80
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • Hitachi H80 AC Magnetic Contactor – left-side view showing mounting pitch plate and coil wire
  • Hitachi H80 AC Magnetic Contactor – front right view with rating label and green ON/OFF indicator visible
  • Hitachi H80 AC Magnetic Contactor – close-up of front rating plate showing AC600V, 80A, coil 200-220V, IEM and IEC capacity ratings
  • Hitachi H80 AC Magnetic Contactor – rear three-quarter view showing main power terminals and contact block

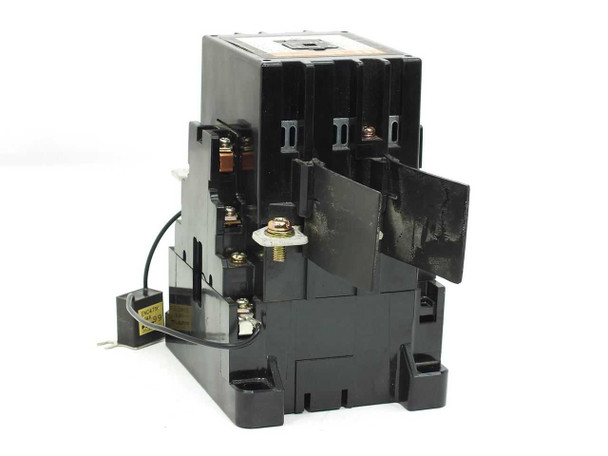

  • Hitachi H80 AC Magnetic Contactor – opposite rear three-quarter view showing contact terminals and suppressor wiring

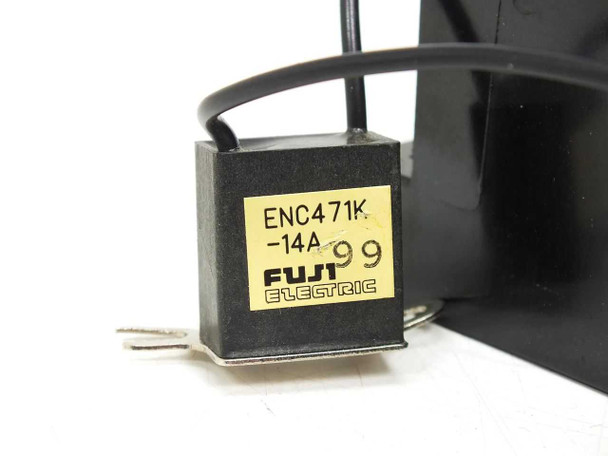

  • Fuji Electric ENC471K-14A surge suppressor attached to Hitachi H80 contactor – label close-up
  • Hitachi H80 AC Magnetic Contactor – bottom view showing mounting pitch dimensions stamped on housing
$85.00
Was: $175.00
Current Stock: 1

Sold Out

Description

Hitachi H80 AC Magnetic Contactor AC600V 80A 3-Phase 200-220V Coil 31H99

AC magnetic contactor rated for 80A at 600V, 3-phase operation. Controls electrical circuits via electromagnetic switching with 200-220V AC coil supply at 50/60Hz.

Specifications & What's Included

  • Model: H80 (MPN 31H99)
  • Voltage Rating: AC 600V
  • Current Rating: 80A
  • Coil Voltage: 200-220V AC, 50/60Hz
  • IEM AC3 Ratings: 19kW @ 220V, 37kW @ 440V, 45kW @ 550V
  • IEC AC3 Ratings: 22kW @ 240V, 37kW @ 440V, 45kW @ 550V
  • Manufactured in Japan
  • Fuji Electric ENC471K-14A surge suppressor attached
  • Thermal overload relay not included

Applications

Magnetic contactors switch high-current circuits in industrial motor control, HVAC systems, and machinery automation. This 80A unit was used in panel-mount or DIN rail applications controlling three-phase motors and loads up to 45kW depending on voltage configuration. Conforms to IEM AC3-1-1-0 90T402, IEC 158-1, and BS 5424-1 standards.

Condition: Used
This Hitachi H80 AC Magnetic Contactor has been inspected and appears to be in good condition. The housing is intact with no visible cracks or breaks. There is light surface soiling on the body consistent with prior industrial use, most noticeable on the lower housing sections. The main power terminals and contact blades are present and intact. The attached Fuji Electric ENC471K-14A surge suppressor and its wiring are in place. The unit does not include a thermal overload relay. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hitachi
Model:
H80
MPN:
31H99
Type:
AC Magnetic Contactor
SKU:
45551
Voltage Rating:
AC 600V
Current Rating:
80A
Phase:
Three Phase
Coil Voltage:
200-220V AC, 50/60Hz
Max Capacity (IEM AC3 220V):
19kW / 80A
Max Capacity (IEM AC3 440V):
37kW / 80A
Max Capacity (IEM AC3 550V):
45kW / 72A
Max Capacity (IEM AC3 11th):
120A
Max Capacity (IEC 240V):
22kW / 80A
Max Capacity (IEC 440V):
37kW / 80A
Max Capacity (IEC 550V):
45kW / 72A
Standards:
IEM AC3-1-1-0 90T402; IEC 158-1; BS 5424-1 AC3
Thermal Overload Relay:
Not Included
Auxiliary Component:
Fuji Electric ENC471K-14A surge suppressor
Country/Region of Manufacture:
Japan
Seller Notes:
No thermal overload relay. Includes attached Fuji Electric ENC471K-14A suppressor.
Condition:
Used – Inspected and in Good Condition
Form Factor:
DIN Rail / Panel Mount
Condition Notes:
Hitachi H80 AC Magnetic Contactor, AC600V, 80A. Inspected and in good condition. Light surface soiling from prior industrial use. No thermal overload relay included. Fuji Electric ENC471K-14A suppressor attached.
View AllClose

Related Products

Related Products

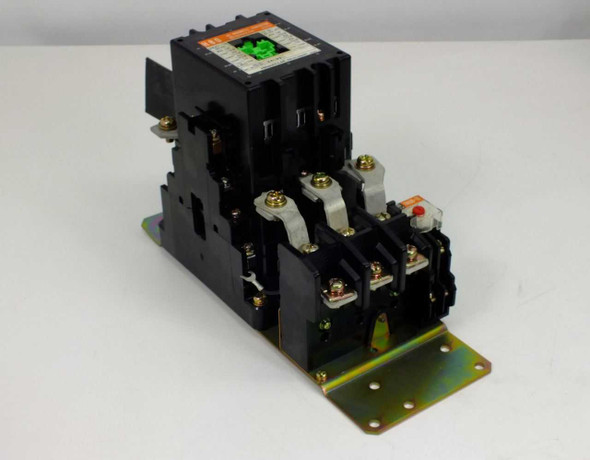

Hitachi H80 AC Magnetic Contactor 3-Pole 600V front-right three-quarter view showing main body and terminal lugs Hitachi H80 AC Magnetic Contactor left-side view showing attached TR0UB-1E thermal overload relay and coil assembly
Add to Cart
Quick view

Hitachi H80 AC Magnetic Contactor 3-Pole AC600V 80A Coil 200-220V 24C99

Hitachi

$125.00
Was: $250.00
Hitachi H80 AC Magnetic Contactor 3-Pole AC600V 80A Coil 200-220V 24C99 Three-pole AC magnetic contactor used for motor control and power switching in industrial automation. The H80 handles up to 80A...
45483
SKU:
45483
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Brand:
Hitachi
Model:
H80
MPN:
H80
Type:
AC Magnetic Contactor
SKU:
45483
Number of Poles:
3
Voltage Rating:
AC 600V
Current Rating (Amps):
80A (Max Capacity at 220V–550V)
Coil Voltage:
200-220V, 50/60Hz
Coil Code:
24C99
Continuous Current (Ith):
120A
Max Capacity 220V:
19kW / 80A
Max Capacity 440V:
37kW / 80A
Max Capacity 550V:
45kW / 72A
Max Capacity 240V (BS):
22kW / 80A
Standards:
IEC 158-1, BS 5424-1 AC3
IEM AC3 Reference:
1-1-0 90T402
Included Overload Relay:
Hitachi TR0UB-1E Thermal Overload Relay
Country/Region of Manufacture:
Japan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes attached TR0UB-1E thermal overload relay and mounting base plate.
Form Factor:
DIN Rail / Panel Mount
Application:
Motor control, industrial automation, power switching
Condition Notes:
Hitachi H80 AC Magnetic Contactor inspected and in good used condition. Pulled from a working environment. Includes TR0UB-1E thermal overload relay. No visible damage. Please view photos and contact us with questions.

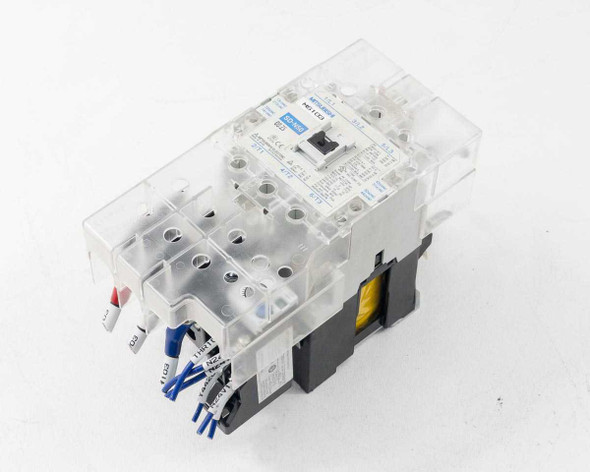

Mitsubishi SD-N50 magnetic contactor – front three-quarter view with clear cover and wire labels Mitsubishi SD-N50 contactor – top view showing SD-N50 model label and auxiliary contact block
