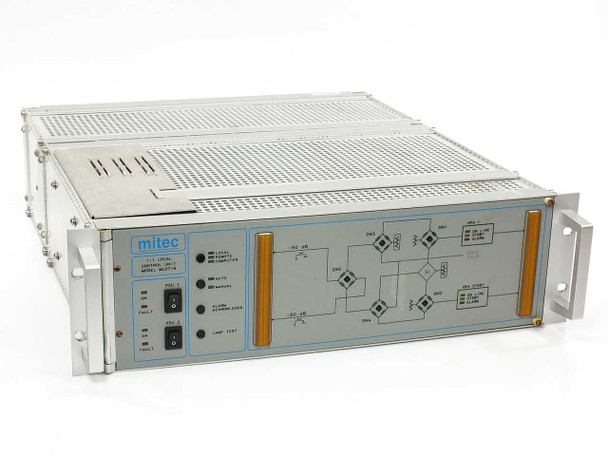

Mitec MC3719A 1:1 Local Control Unit MC3719 Satcom HPA Switch 19" Rack 3U
This is a 1:1 redundancy switch controller designed for satellite communications high-power amplifier (HPA) systems. It manages automatic or manual switchover between primary and standby HPAs in Mitec satcom installations.
Specifications & What's Included
- Form Factor: 19" rackmount, 3U height
- Power: 120 VAC, 50/60 Hz; dual redundant PSUs
- Control Modes: Local, Remote, Computer

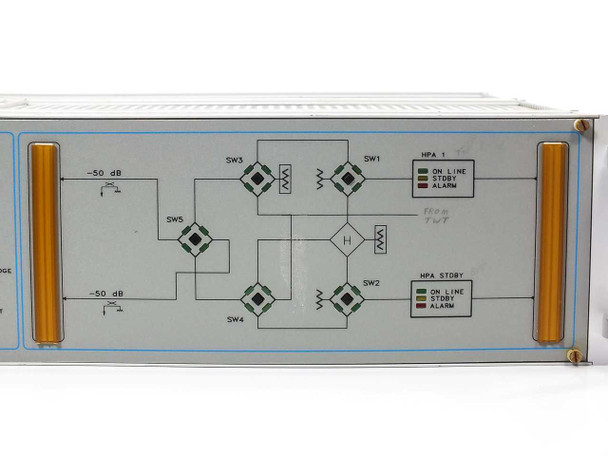

- Switch Configuration: 1:1 HPA redundancy (5 switches)
- Indicators: HPA On Line, Standby, Alarm, PSU status
- Connectors: Multi-pin D-sub and DB9 interfaces

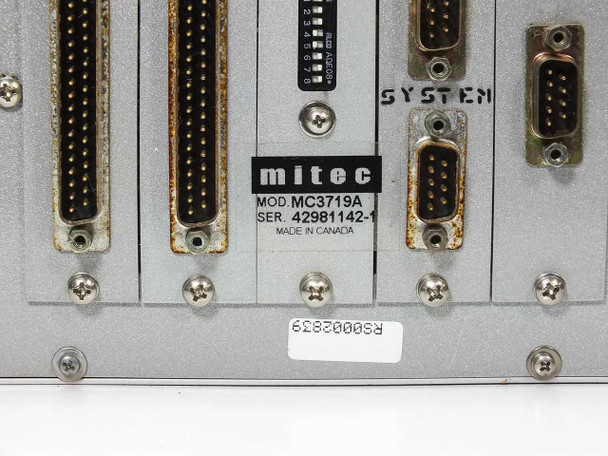

- Serial: 42981142-1
Applications
This controller was used in Mitec satellite communication ground stations requiring HPA redundancy to maintain uplink availability. It switches between two HPAs based on fault detection and operator commands, supporting local panel control, remote command, or computer-based automation.
Condition: For Parts or Not Working

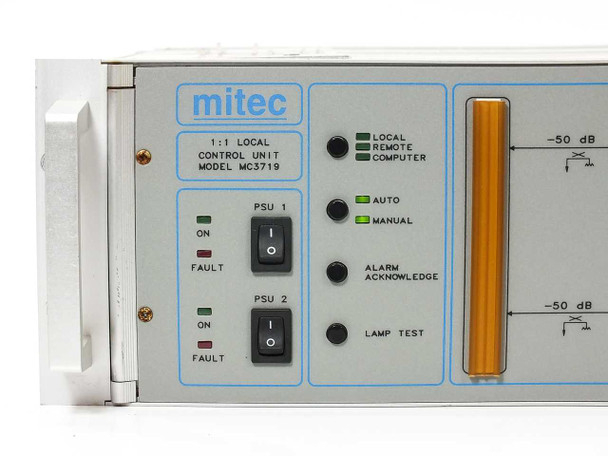

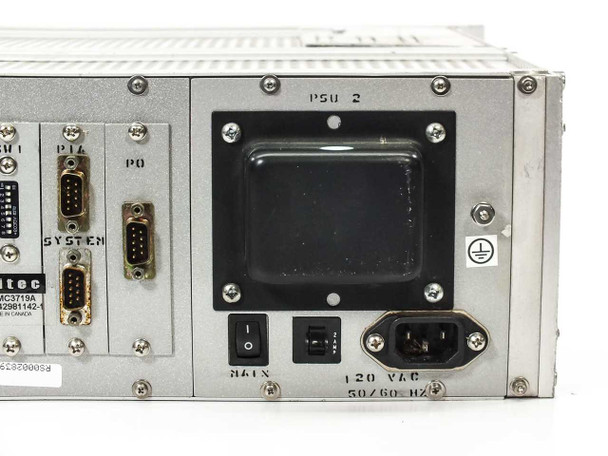

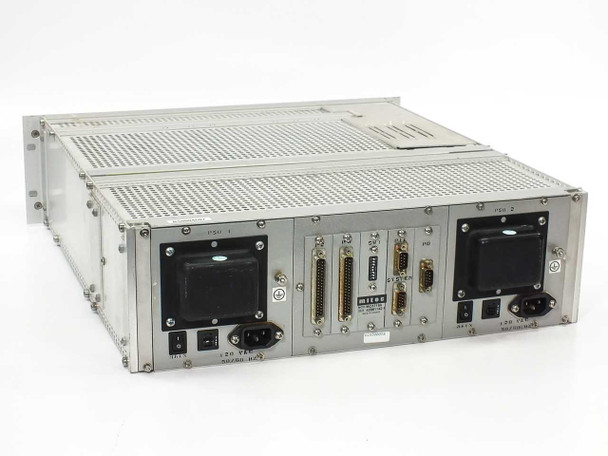

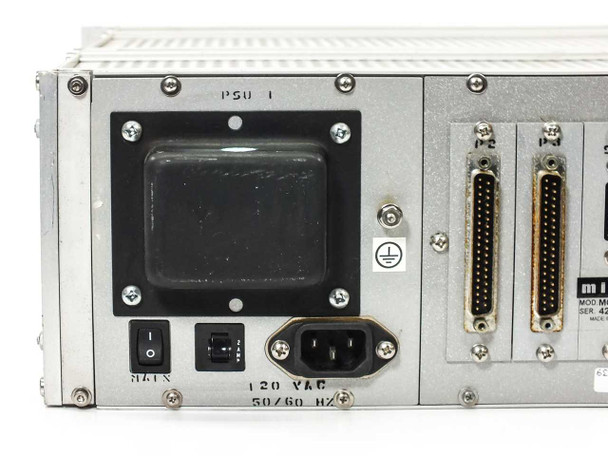

This Mitec MC3719A 1:1 Local Control Unit is being sold AS-IS for parts or repair. During our lamp test, only the AUTO and MANUAL indicator lamps illuminate — the remaining indicators do not respond as expected. The unit is not confirmed functional and is not guaranteed to operate correctly in a system. It is offered as a source of useful parts or as a repair/restoration project. Externally, the chassis shows typical wear consistent with rack-mounted service use; the front panel labeling and connectors appear intact. Two rear IEC power inlets and the multi-pin D-sub and DB9 connectors are present. Please view our photo set and contact us if you have any questions.
This Mitec MC3719A 1:1 Local Control Unit is being sold AS-IS for parts or repair. During our lamp test, only the AUTO and MANUAL indicator lamps illuminate — the remaining indicators do not respond as expected. The unit is not confirmed functional and is not guaranteed to operate correctly in a system. It is offered as a source of useful parts or as a repair/restoration project. Externally, the chassis shows typical wear consistent with rack-mounted service use; the front panel labeling and connectors appear intact. Two rear IEC power inlets and the multi-pin D-sub and DB9 connectors are present. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mitec |
Model: |
MC3719A |
MPN: |
MC3719A |
Secondary Model: |
MC3719 |
Type: |
1:1 Local Control Unit / HPA Redundancy Switch Controller |
SKU: |
49854 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold AS-IS for parts. Only AUTO and MANUAL lamps illuminate on lamp test. |
Country/Region of Manufacture: |
Canada |
Form Factor: |
19" Rackmount, 3U |
Power Requirements: |
120 VAC, 50/60 Hz |
Number of PSUs: |
2 (PSU 1 and PSU 2, redundant) |
Application: |
Satellite / Satcom HPA 1:1 Redundancy Switching |
Switch Configuration: |
1:1 HPA redundancy (SW1, SW2, SW3, SW4, SW5) |
Control Modes: |
Local, Remote, Computer |
Indicators: |
HPA On Line, Standby, Alarm; PSU On/Fault; Auto/Manual; Alarm Acknowledge |
Interface / Connectors: |

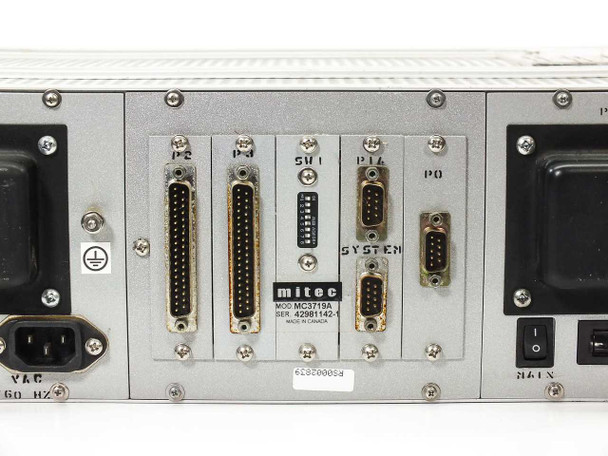

Multi-pin D-sub (P2, P3, P4), DB9 (PIA, PO, SYSTEM) |
Serial Number: |
42981142-1 |
Compatible With: |
Mitec satcom HPA systems requiring 1:1 redundancy control |
Condition Notes: |
Mitec MC3719A 1:1 Local Control Unit sold AS-IS for parts or repair. Only AUTO and MANUAL lamps illuminate on lamp test; remaining indicators non-responsive. Not confirmed functional. Good source of parts. |
