Mack Corp S1014-2 Short Stroke Lo-Profile Pneumatic Cylinder Single Acting 300

(No reviews yet) Write a Review
SKU:
46340
MPN:
S1014-2
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Mack Corp S1014-2 lo-profile pneumatic cylinder – top view showing label with P/N S1014-2, SER. NO. 2231, M.O.P. 300 PSI, Mack Corp Flagstaff AZ USA

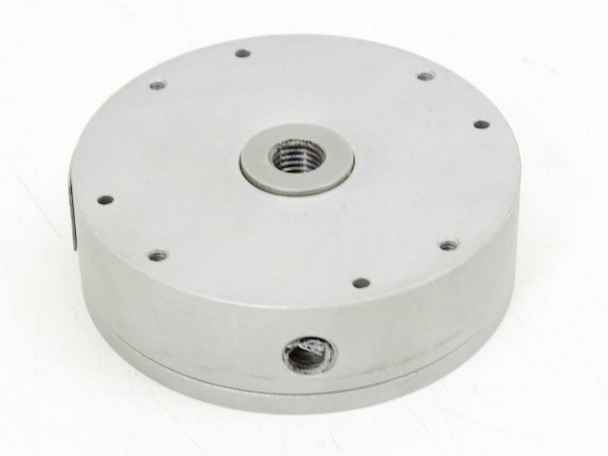

  • Mack Corp S1014-2 pneumatic cylinder – bottom view showing threaded piston rod port and end port fitting opening

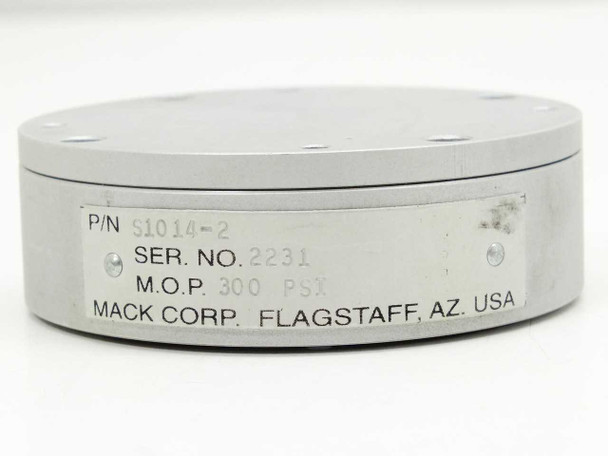

  • Mack Corp S1014-2 short stroke pneumatic cylinder – side/angled view showing label with P/N, serial number, M.O.P. 300 PSI, and Mack Corp Flagstaff AZ USA markings
$90.00
Was: $175.00
Current Stock: 5

Sold Out

Description

Mack Corp S1014-2 Short Stroke Lo-Profile Pneumatic Cylinder Single Acting 300 PSI

Single-acting pneumatic cylinder with short stroke and low-profile round design. Extends on plant air supply and retracts via vacuum. Rated for 300 PSI maximum operating pressure.

Specifications & What's Included

  • Model: S1014-2
  • Type: Single Acting, Short Stroke, Lo-Profile
  • Actuation: Plant Air (extend); Vacuum Retracted
  • Maximum Operating Pressure: 300 PSI
  • Operating Temperature: -40 to +250°F
  • Body Material: Aluminum
  • Mounting: Aft Face Mounted
  • Port Configuration: End Ported, Single Ended Piston
  • Cylinder only; no accessories included

Applications

Short-stroke lo-profile pneumatic cylinders are used in automation, manufacturing, and industrial control systems where compact actuators are required in confined spaces. Single-acting designs with vacuum retraction are found in pick-and-place equipment, valve actuation, and fixture clamping applications. These cylinders integrate with standard pneumatic systems operating on plant air.

Condition: Used
This Mack Corp S1014-2 short stroke lo-profile pneumatic cylinder is in used, untested condition. It has not been powered or cycled at our facility. The unit is very clean with no significant cosmetic damage visible — the aluminum body is free of deep scratches or corrosion, and the label is clear and fully legible. The threaded piston port and end port fitting appear undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Mack Corp
Model:
S1014-2
MPN:
S1014-2
Type:
Short Stroke Lo-Profile Pneumatic Cylinder
SKU:
46340
Condition:
Used – Untested, Visually Inspected
Seller Notes:
Cylinder only; no additional accessories included.
Country/Region of Manufacture:
United States
Actuation Type:
Single Acting
Retraction Method:
Vacuum Retracted
Piston Configuration:
Single Ended
Port Location:
End Ported
Mounting Style:
Aft Face Mounted
Maximum Operating Pressure:
300 PSI
Service Medium:
Plant Air (to extend)
Operating Temperature Range:
-40 to +250°F
Stroke Type:
Short Stroke
Profile:
Low Profile (Lo-Profile)
Body Material:
Aluminum
Form Factor:
Round / Pancake Style
Condition Notes:
Mack Corp S1014-2 lo-profile pneumatic cylinder. Used, untested condition. Very clean; aluminum body shows no significant wear. Label fully legible. Threaded port and end port appear undamaged. Photos available.
View AllClose

Related Products

Related Products

Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly – left side view showing green air lines and brass toggle valve Mack Corp S1014-2 Air Actuated Bonder Assembly – front view showing black anodized frame and pneumatic fittings
Add to Cart
Quick view

Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly 300 PSI Pneumatic

Mack

$150.00
Was: $300.00
Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly 300 PSI PneumaticAir-actuated bonding assembly designed for semiconductor and microelectronics applications. Operates at 300 PSI maximum and...
26995
SKU:
26995
Availability:
Usually ships within 1–2 business days.
Weight:
15.00 LBS
Brand:
Mack Corp
Model:
S1014-2
MPN:
S1014-2
Type:
Air Actuated Bonder Assembly
SKU:
26995
Maximum Operating Pressure (M.O.P.):
300 PSI
Actuation Method:
Pneumatic (Air Actuated)
Profile:
Low Profile
Includes:
Pneumatic toggle valve, green air lines
Country/Region of Manufacture:
United States
Manufacturer Location:
Flagstaff, AZ, USA
Application:
Semiconductor / Microelectronics Bonding
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes brass pneumatic toggle valve and green air supply lines.
Condition Notes:
Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly. Inspected and in good used condition. Frame and slide show typical wear. Actuator puck, brass toggle valve, and green air lines included and intact.
SMC CDM2B20-150 double acting pneumatic cylinder full side view with position sensor leads and speed controller fitting SMC CDM2B20-150 cylinder label showing model number, max pressure 1.0 MPa, 10.2 kgf/cm², 145 PSI, Made in Japan
Add to Cart
Quick view

SMC CDM2B20-150 Pneumatic Cylinder 20mm Bore 150mm Stroke Double Acting

SMC

$35.00
Was: $70.00
SMC CDM2B20-150 Pneumatic Cylinder 20mm Bore 150mm Stroke Double ActingDouble acting pneumatic cylinder with 20mm bore and 150mm stroke. Operates on compressed air at up to 1.0 MPa and is designed...
47965
SKU:
47965
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
SMC
Model:
CDM2B20-150
MPN:
CDM2B20-150
Type:
Double Acting Pneumatic Cylinder
SKU:
47965
Bore Diameter:
20mm
Stroke Length:
150mm
Rod Diameter:
8mm
Max Pressure:
1.0 MPa / 10.2 kgf/cm² / 145 PSI
Action Type:
Double Acting
Rod Configuration:
Single Rod
Series:
CDM2B
Country/Region of Manufacture:
Japan
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes attached speed controller fittings and position sensor leads
Compatible With:
SMC CDM2 series pneumatic automation systems
Form Factor:
Round Body / Inline
Medium:
Compressed Air / Pneumatic
Condition Notes:
SMC CDM2B20-150 pneumatic cylinder inspected and in good used condition. Stainless body is clean, rod and fittings intact, speed controller fittings and sensor leads present. Normal light handling marks. Please contact us with any questions.

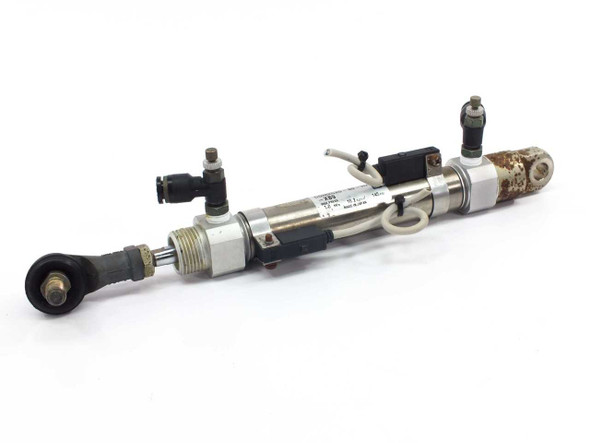

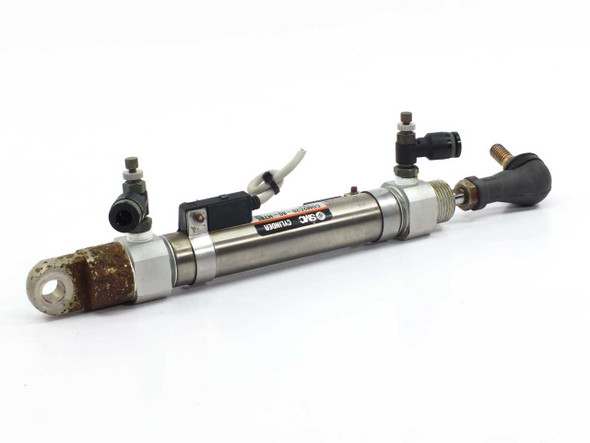

SMC CDM2C20-80 double acting pneumatic cylinder – full assembly view showing rod eye end, clevis mount, push-in fittings, and auto-switch wiring SMC CDM2C20-80 pneumatic cylinder – opposite side view showing SMC label, rust on cylinder body, push-in fittings and auto-switch
