Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly 300 PSI Pneumatic

(No reviews yet) Write a Review
SKU:
26995
MPN:
Pneumatic
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

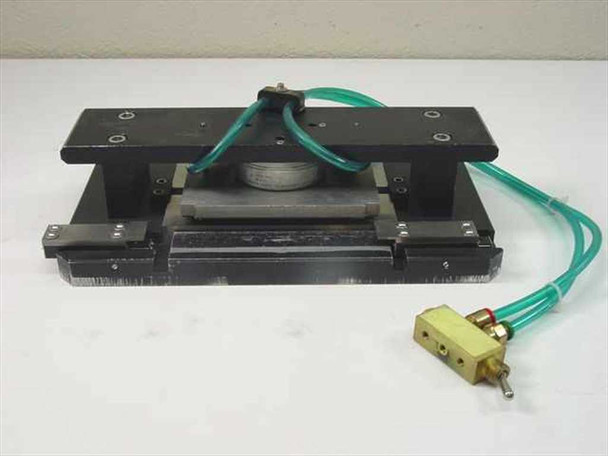

  • Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly – left side view showing green air lines and brass toggle valve
  • Mack Corp S1014-2 Air Actuated Bonder Assembly – front view showing black anodized frame and pneumatic fittings

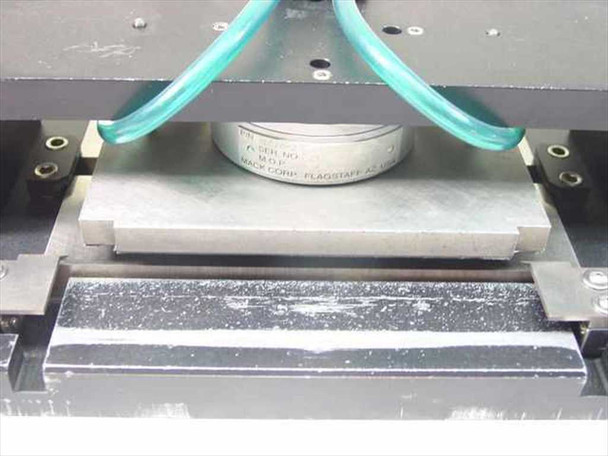

  • Mack Corp S1014-2 Bonder Assembly – close-up of cylindrical pneumatic actuator puck with label showing P/N and Mack Corp Flagstaff AZ markings

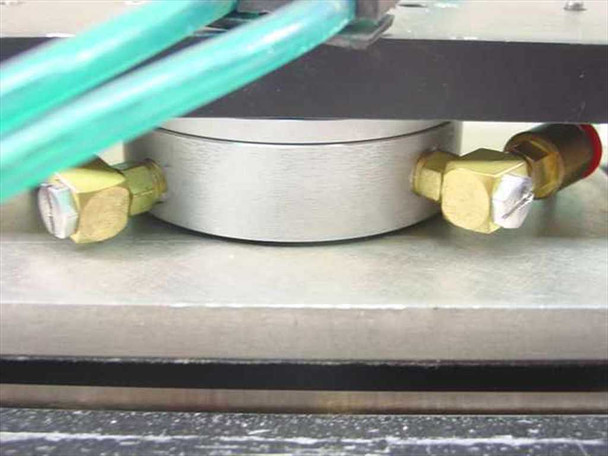

  • Mack Corp S1014-2 Bonder Assembly – detail of actuator puck with brass pneumatic fittings and green air lines attached
  • Mack Corp S1014-2 Bonder Assembly – close-up of brass pneumatic toggle valve showing toggle lever and port connections

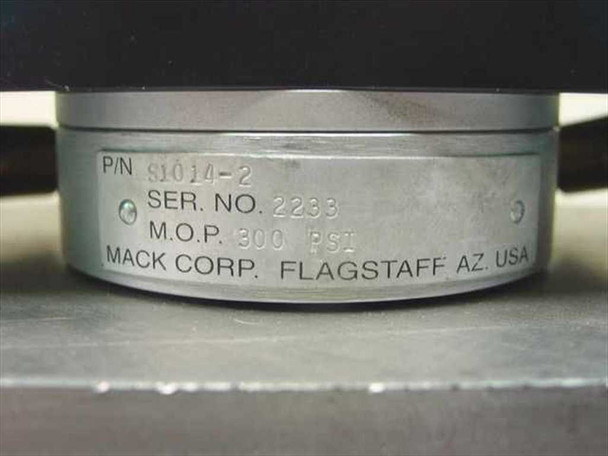

  • Mack Corp S1014-2 label close-up showing P/N S1014-2, Ser. No. 2233, M.O.P. 300 PSI, Mack Corp Flagstaff AZ USA
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly 300 PSI Pneumatic

Air-actuated bonding assembly designed for semiconductor and microelectronics applications. Operates at 300 PSI maximum and uses pneumatic actuation to control bonding pressure and positioning.

Specifications & What's Included

  • Model: S1014-2
  • Maximum Operating Pressure: 300 PSI
  • Actuation: Pneumatic (air-actuated)
  • Profile: Low profile design
  • Includes brass pneumatic toggle valve and green air supply lines
  • Manufactured in Flagstaff, AZ

Applications

Low-profile air actuated bonders are used in semiconductor die bonding, chip attachment, and microelectronics assembly operations. These assemblies integrate into production equipment requiring controlled pneumatic bonding force and are typically mounted on bonding frames or automated assembly platforms. The toggle valve allows manual or automated pressure control for consistent bond line pressure during production cycles.

Condition: Used
This Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly has been inspected and is in good used condition. The black anodized frame and linear slide show typical wear consistent with previous use in a production environment. The cylindrical pneumatic actuator puck is present and the label is fully legible, showing P/N S1014-2, Ser. No. 2233, and M.O.P. 300 PSI. The brass pneumatic toggle valve and green air supply lines are included and appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Mack Corp
Model:
S1014-2
MPN:
S1014-2
Type:
Air Actuated Bonder Assembly
SKU:
26995
Maximum Operating Pressure (M.O.P.):
300 PSI
Actuation Method:
Pneumatic (Air Actuated)
Profile:
Low Profile
Includes:
Pneumatic toggle valve, green air lines
Country/Region of Manufacture:
United States
Manufacturer Location:
Flagstaff, AZ, USA
Application:
Semiconductor / Microelectronics Bonding
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes brass pneumatic toggle valve and green air supply lines.
Condition Notes:
Mack Corp S1014-2 Low Profile Air Actuated Bonder Assembly. Inspected and in good used condition. Frame and slide show typical wear. Actuator puck, brass toggle valve, and green air lines included and intact.
View AllClose

Related Products

Related Products

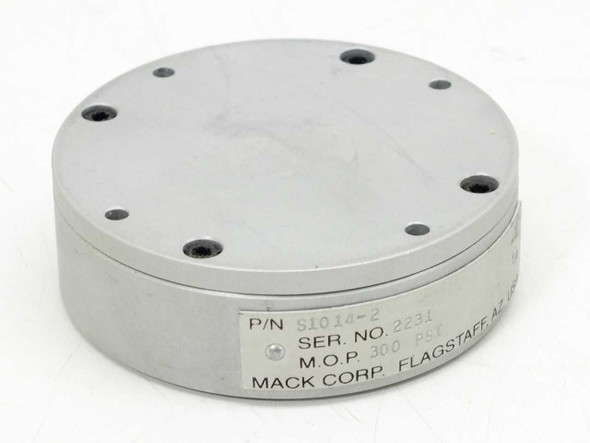

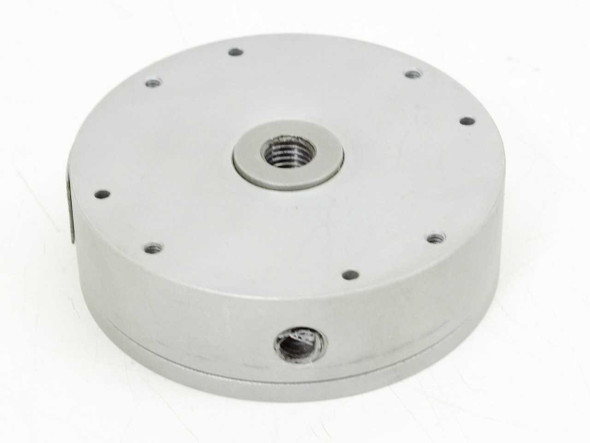

Mack Corp S1014-2 lo-profile pneumatic cylinder – top view showing label with P/N S1014-2, SER. NO. 2231, M.O.P. 300 PSI, Mack Corp Flagstaff AZ USA Mack Corp S1014-2 pneumatic cylinder – bottom view showing threaded piston rod port and end port fitting opening
