Description

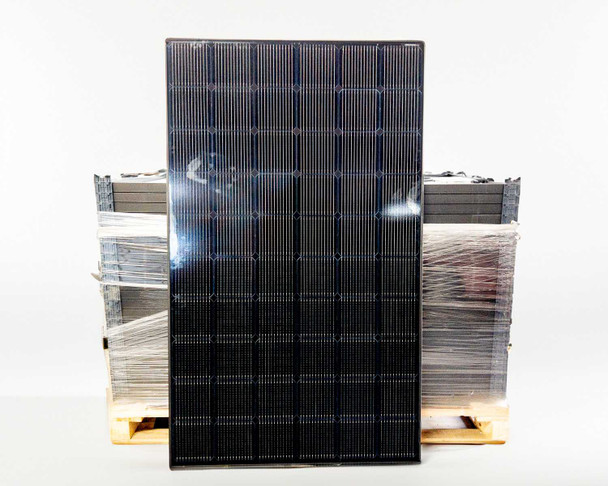

LG LG370M1K-A6 NeON 2 Black AC Solar Panel 370W Microinverter LM320UE-A2
This is a monocrystalline solar panel with an integrated microinverter that converts DC power directly to AC output. The LM320UE-A2 microinverter is built into the panel, delivering 320W continuous output at 240V nominal.
Specifications & What's Included
- Maximum Power (Pmax): 370W
- Max Continuous Output: 320 VA at 240V
- Module Efficiency: 20.4%
- 60 monocrystalline N-type cells in 6x10 configuration
- 12 busbars; anodized aluminum frame
- Output voltage range: 211–264V (240V) / 183–229V (208V)
- NEMA 6 (IP67) environmental rating; Type 2 fire performance
- Operating frequency: 59.3–60.5 Hz
- Max overcurrent protection: 20A branch circuit
- Manufactured in South Korea
Applications
AC solar panels with integrated microinverters are used in residential and light commercial grid-tied photovoltaic systems. They attach directly to mounting hardware and connect to standard electrical panels, eliminating the need for separate string inverters. This configuration suits roof-mounted installations where individual panel monitoring and rapid shutdown compliance are required. They are compatible with standard 240V and 208V residential service configurations.
This LG LG370M1K-A6 NeON 2 Black 370W AC Solar Panel is new and unused. The panels are in original condition with no signs of wear. Each panel ships with its integrated LM320UE-A2 microinverter already mounted to the backsheet and the AC output cables attached. Due to their size, these panels require freight shipping — please contact us before purchasing so we can arrange delivery. Price is per panel. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
LG |
Model: |
LG370M1K-A6 |
MPN: |
LG370M1K-A6 |
Type: |
AC Solar Panel with Integrated Microinverter |
SKU: |
52954 |
Series: |
NeON 2 Black |
Inverter Model: |
LM320UE-A2 |
Maximum Power (Pmax): |
370W |
Max Continuous Output Power: |
320 VA |
Peak Output Power: |
326 VA |
Module Efficiency: |
20.4% |
Cell Type: |
Monocrystalline N-type |
Number of Cells: |
60 (6x10) |
Cell Dimensions: |
6" x 6" (161.7mm x 161.7mm) |
Frame Material: |
Anodized Aluminum |
Nominal Output Current (240V): |
1.33A / 1.54A |
Nominal Voltage Range (240V): |
211–264V |
Nominal Voltage Range (208V): |
183–229V |
Nominal Frequency Range: |
60 Hz / 59.3–60.5 Hz |
Max Branch Circuit Overcurrent Protection: |
20A |
Environmental Rating: |
NEMA 6 (IP67) |
Fire Performance Rating: |
Type 2 |
Seller Notes: |
New panel with integrated LG LM320UE-A2 microinverter. Price is per panel. Freight shipping required. |
Country/Region of Manufacture: |
South Korea |
Condition Notes: |
LG LG370M1K-A6 NeON 2 Black 370W AC Solar Panel. New and unused with integrated LM320UE-A2 microinverter. No signs of wear. Freight shipping required — contact us before purchasing. Price is per panel. |
