Description
LG LG365M1C-N5 NeON 2 ACe 365W Solar Panel Built-In Microinverter 240VAC
Monocrystalline solar panel with integrated microinverter and output cables. Converts DC solar output to 320VAC continuous power for direct grid connection without separate inverter equipment.
Specifications & What's Included
- 365W DC maximum power / 320VAC AC output
- 21.1% module efficiency, N-Type monocrystalline cells
- 60 cells (6x10), 30 Multi Wire Busbars
- LM036HI-A2 UL-listed microinverter, adjustable power factor
- Anodized aluminum black frame, NEMA 4 (IP57) rated enclosure
- Input voltage range 211-264V, output current 1.22-1.56A
- Includes integrated microinverter and AC output cables
Applications
Used in grid-tied residential and commercial rooftop solar arrays. The integrated microinverter eliminates need for a central inverter, suitable for smaller systems or installations where module-level inversion is preferred. Compatible with standard grid-connected AC solar systems operating at 240V or 208V nominal.
Condition: New

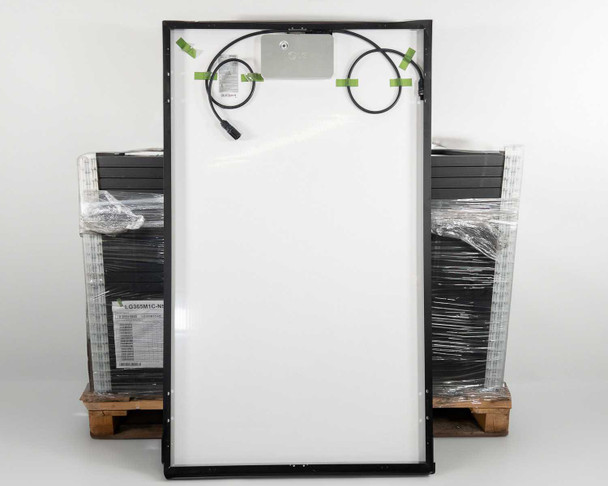

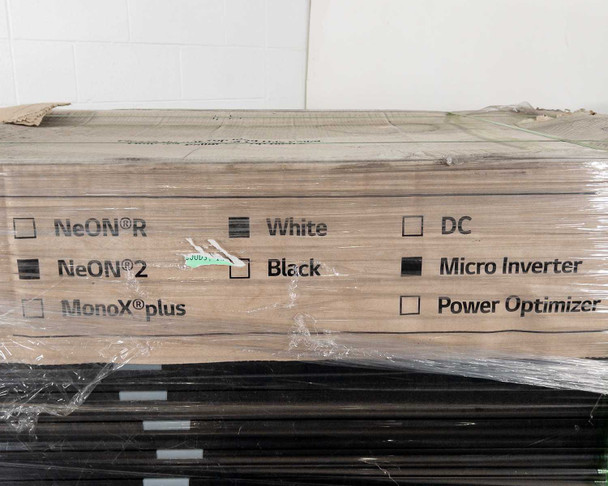

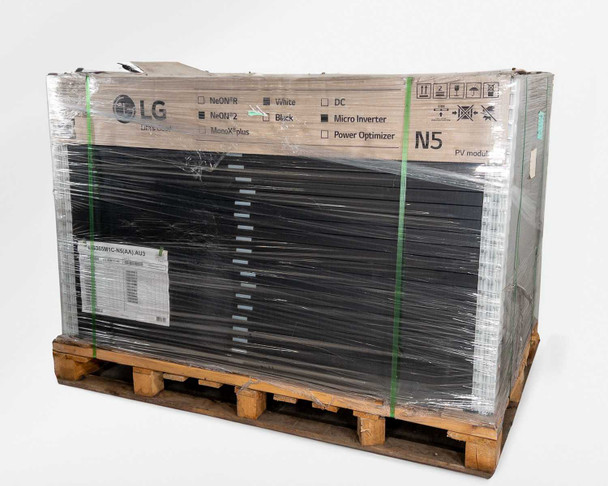

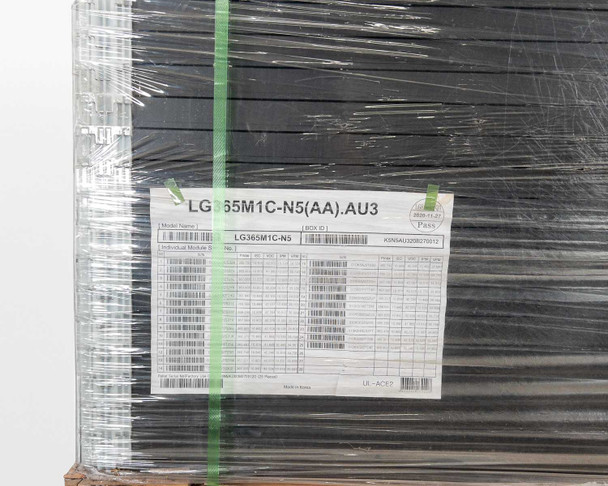

This LG LG365M1C-N5 NeON 2 ACe 365W AC Solar Panel with built-in LG microinverter is new and unused. Panels are in original factory packaging and have not been installed. The photos show a full pallet of units; price is per panel. Due to size, these panels must ship by freight carrier — ground shipping is not available. Please view our photos and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This LG LG365M1C-N5 NeON 2 ACe 365W AC Solar Panel with built-in LG microinverter is new and unused. Panels are in original factory packaging and have not been installed. The photos show a full pallet of units; price is per panel. Due to size, these panels must ship by freight carrier — ground shipping is not available. Please view our photos and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

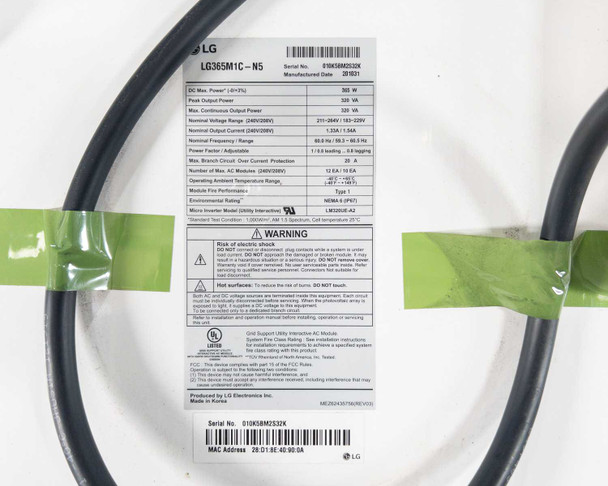

Additional Information
Brand: |
LG |
Model: |
LG365M1C-N5 |
MPN: |
LG365M1C-N5(AA) |
Type: |
Monocrystalline Solar Panel with Microinverter |
SKU: |
52953 |
Seller Notes: |
New panel with integrated LG microinverter and output cables. Ships freight only. |
Country/Region of Manufacture: |
Korea |
Series: |
NeON 2 ACe |
Maximum Power (Pmax): |
365W DC |
AC Output Power: |
320 VAC continuous |
Module Efficiency: |
21.1% |
Cell Type: |
Monocrystalline / N-Type |
Number of Cells: |
60 (6x10) |
Cell Dimensions: |
161.7 x 161.7 mm (6 x 6 in) |
Frame Material: |
Anodized Aluminum |
Frame Color: |
Black |
Nominal Voltage Range (240/208V): |
211-264V / 183-229V |
Nominal Output Current: |
1.22A - 1.56A |
Nominal Frequency Range: |
59.3-60.5 Hz / 58.8-61.2 Hz |
Max. Branch Circuit Over Current Protection: |
20A |
Power Factor: |
Adjustable |
Module Fire Performance: |
Type 1 |
Enclosure Rating: |
NEMA 4 (IP57) |
Micro Inverter Model: |
LM036HI-A2 |
Micro Inverter Listing (Utility Interactive): |
UL Listed |
Condition: |
New |
Form Factor: |
Flat Panel / Residential/Commercial Rooftop |
Compatible With: |
Grid-tied AC solar systems, residential/commercial rooftop arrays |
Condition Notes: |
New LG LG365M1C-N5 NeON 2 ACe 365W AC solar panel with integrated LG microinverter. New in original packaging, uninstalled. Price is per panel. Freight shipping required — too large for ground. Contact us with questions. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
