Lenze AC Tech ESV152N04TXC SMVector Frequency Inverter 400/480V 1.5kW 2HP

(No reviews yet) Write a Review
SKU:
52951
MPN:
ESV152N04TXC
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Lenze AC Tech ESV152N04TXC SMVector frequency inverter – front panel three-quarter view showing display and keypad
  • Lenze AC Tech ESV152N04TXC SMVector VFD – straight-on front view showing LED display, navigation buttons, and SMVector/Lenze AC Tech branding label
  • Lenze AC Tech ESV152N04TXC rating label showing input 3/PE AC 400/480V 4.7/4.1A, output 1.5kW/2HP, Type 4X enclosure, UL/CE/EAC markings, and serial number
  • Lenze AC Tech ESV152N04TXC SMVector VFD – wiring compartment cover open showing terminal block strip and control wiring connections
  • Lenze AC Tech ESV152N04TXC – close-up of open wiring compartment showing terminal block labels (EPM, PL3) and multi-colored control and power wiring
  • Lenze AC Tech ESV152N04TXC SMVector – close-up of front label showing EPM memory on board callout and bilingual Warning/Attention notices
  • Lenze AC Tech ESV152N04TXC SMVector – left side profile view showing black housing body and Lenze AC Tech logo label with US address
  • Lenze AC Tech ESV152N04TXC SMVector – right side profile view showing rear label with certifications, barcode, and heat sink fins
  • Lenze AC Tech ESV152N04TXC SMVector – rear view showing black aluminum heat sink fins with surface wear and scuffing
$340.00
Was: $675.00
Current Stock: 1

Sold Out

Description

Lenze AC Tech ESV152N04TXC SMVector Frequency Inverter 400/480V 1.5kW 2HP

The Lenze AC Tech ESV152N04TXC is a wall-mount variable frequency drive (VFD) from the SMVector series, designed to control the speed and torque of three-phase AC motors. It accepts a 3-phase 400/480V input and delivers a variable-frequency 3-phase output to the motor, allowing precise speed control across a wide range. The unit features an EPM memory module on board, enabling parameter storage and transfer, and is housed in a Type 4X rated enclosure suitable for indoor applications where protection from dust and splashing water is needed.

Specifications & What's Included

  • Manufacturer: Lenze AC Tech
  • Model / MPN: ESV152N04TXC
  • Series: SMVector
  • Input: 3/PE AC, 400/480V, 4.7A (400V) / 4.1A (480V)
  • Input Frequency: 50–60 Hz
  • Output: 3/PE AC, 0–400V (400V mode) / 0–460V (480V mode)
  • Output Current: 4.0A (400V) / 3.5A (480V)
  • Output Power: 1.5 kW / 2 HP
  • Output Frequency Range: 0–500 Hz
  • Enclosure: Type 4X, indoor use only
  • EPM memory on board (parameter storage/transfer module)
  • Front panel: LED display, up/down navigation keys, M (mode), R/F (run/fault), and stop/reset buttons
  • Wiring compartment: screw terminal block for power and control connections (terminals labeled 1, 2, 5, 6, 8, 11, 13A, 13B, 13C, 14, 30, 16, 17)
  • Certifications: UL Listed, CE, EAC
  • Country of Manufacture: United States
  • Manual reference: SV01 / DoM-2136 (per rating label)
  • Included: inverter unit only; no accessories

Applications

The SMVector is a general-purpose VFD series from Lenze AC Tech targeting a broad range of industrial motor control applications. Variable frequency drives like the ESV152N04TXC are used wherever adjustable motor speed is needed: conveyor and material handling systems, packaging machinery, food processing equipment, fans and blowers in HVAC systems, pumps, and similar three-phase motor-driven machinery. The Type 4X enclosure makes this unit suitable for environments with exposure to dust or wash-down splash, such as food and beverage or light industrial production lines. The 0–500 Hz output frequency range allows operation of both standard 50/60 Hz motors and higher-speed spindle applications. The EPM memory module is a Lenze-specific feature that lets operators save a full parameter set to a plug-in card for quick replication across multiple drives or fast replacement in the field — a practical advantage in multi-drive installations common in packaging and conveyor lines.

Condition: Used
This Lenze AC Tech ESV152N04TXC SMVector frequency inverter has been inspected and is in good used condition. It was pulled from a PLC control room when the tenant vacated the space. The front enclosure and faceplate are clean with minor surface marks consistent with normal industrial use. The rear heat sink shows scuffing and some surface wear, visible in the photos. The wiring compartment is intact with the terminal block and control wiring in place. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lenze AC Tech
Model:
ESV152N04TXC
MPN:
ESV152N04TXC
Type:
Variable Frequency Drive / Frequency Inverter
SKU:
52951
Product Series:
SMVector
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Input Voltage:
400/480V
Input Current:
4.7A (400V) / 4.1A (480V)
Input Phase:
Three Phase (3/PE AC)
Input Frequency:
50-60 Hz
Output Voltage:
0-400V (400V input) / 0-460V (480V input)
Output Current:
4A (400V) / 3.5A (480V)
Output Power:
1.5 kW / 2 HP
Output Frequency Range:
0-500 Hz
Output Phase:
Three Phase (3/PE AC)
Enclosure Rating:
Type 4X (Indoor Only)
Form Factor:
Wall Mount / Panel Mount
Certifications:
UL Listed, CE, EAC
Memory:
EPM Memory on Board
Seller Notes:
Unit only; pulled from a PLC control room. No accessories included.
Condition Notes:
Lenze AC Tech ESV152N04TXC SMVector VFD inspected and in good used condition. Pulled from a PLC control room. Front housing clean; rear heat sink shows surface wear. Terminal block intact.
View AllClose

Related Products

Related Products

Lenze AC Tech ESV552N04TMC SMVector frequency inverter drive — right-front three-quarter view showing enclosure, rotary disconnect switch, and front operator panel Lenze AC Tech ESV552N04TMC SMVector VFD — direct front view showing operator keypad with LED display, UP/DOWN arrows, M/RF buttons, RUN and STOP keys, and SMVector Lenze AC Tech label
Add to Cart
Quick view

Lenze AC Tech ESV552N04TMC SMVector Inverter Drive 7.5HP 460V 3-Phase 0-500Hz

Lenze AC Tech

$825.00
Was: $1,700.00
Lenze AC Tech ESV552N04TMC SMVector Inverter Drive 7.5HP 460V 3-Phase 0-500Hz This variable frequency drive (VFD) converts fixed-frequency AC power to adjustable voltage and frequency output for...
52936
SKU:
52936
Availability:
Usually ships within 1-2 business days.
Weight:
14.00 LBS
Brand:
Lenze AC Tech
Model:
ESV552N04TMC
MPN:
ESV552N04TMC
ID Number:
13471677
Type:
Variable Frequency Drive (VFD) / Frequency Inverter
Series:
SMVector (SMVecto)
SKU:
52936
Country/Region of Manufacture:
United States
Input Voltage:
400/480V AC, 3-Phase
Input Current:
14.2A @ 400V / 12.4A @ 480V
Input Frequency:
50-60 Hz
Output Voltage:
0-400/460V AC, 3-Phase
Output Current:
12.6A @ 400V / 11A @ 460V
Output Frequency Range:
0-500 Hz
Power Rating (HP):
7.5 HP
Power Rating (kW):
5.50 kW
Phase:
Three Phase
Enclosure Rating:
Type 4X (Indoor Only)
EPM Memory on Board:
Yes
Certifications:
UL, CE
Form Factor:
Wall/Panel Mount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from a working environment and inspected.
Condition Notes:
This Lenze AC Tech ESV552N04TMC SMVector frequency inverter drive has been inspected and appears to be in good used condition. The unit was pulled from a working environment and shows normal wear consistent with industrial service use.
Marathon Electric BLACK MAX FVM 56H17T5301BP inverter duty motor – front drive end showing multi-groove pulley and WARNING label Marathon Electric BLACK MAX FVM 56H17T5301BP motor – side/rear view showing nameplate label and BLACK MAX junction box
Add to Cart
Quick view

Marathon Electric BLACK MAX FVM 56H17T5301BP Inverter Duty Motor 1/2HP 230/460V

Marathon Electric

$200.00
Was: $400.00
Marathon Electric BLACK MAX FVM 56H17T5301BP Inverter Duty Motor 1/2HP 230/460V 56CThree-phase AC induction motor rated 1/2 HP designed for variable frequency drive (VFD) operation. This...
51720
SKU:
51720
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Brand:
Marathon Electric
Model:
FVM 56H17T5301BP
MPN:
FVM 56H17T5301BP
Secondary Model:
Y534
Type:
3-Phase Inverter Duty AC Induction Motor
SKU:
51720
Product Line:
BLACK MAX
Horsepower:
1/2 HP (0.37 kW)
Voltage:
230/460V
Phase:
Three Phase
Frequency:
60 Hz
Full Load RPM:
1735 RPM
Max Safe RPM:
5400 RPM
Full Load Amps:
1.6A (230V) / 0.8A (460V)
No Load Amps:
0.52A
Poles:
4
Frame:
56C
Enclosure:
TENV (Totally Enclosed Non-Ventilated)
Insulation Class:
F
Design:
B
Service Factor:
1.0
Duty:
Continuous
Temperature Sensors:
TSTATS (Thermostats)
Max Ambient Temp:
40°C
Ohms/Phase:
22.3 / 17.0
Code:
L
Enclosure Rating:
IP 43
Standards:
IEC34-1, IEC34-5, UL Listed, CE
Cat No:
Y534
Catalog Reference:
A-91070A
Condition:
Used – Inspected
Seller Notes:
Motor only; includes multi-groove pulley/sheave on drive end as shown in photos.
Country/Region of Manufacture:
United States
Compatible With:
VFD / Variable Frequency Drive systems; 56C frame mounts
Condition Notes:
This Marathon Electric BLACK MAX FVM 56H17T5301BP inverter-duty motor has been inspected and is in good used condition. Light surface wear consistent with prior use. Drive-end pulley attached. Please contact us with any questions.

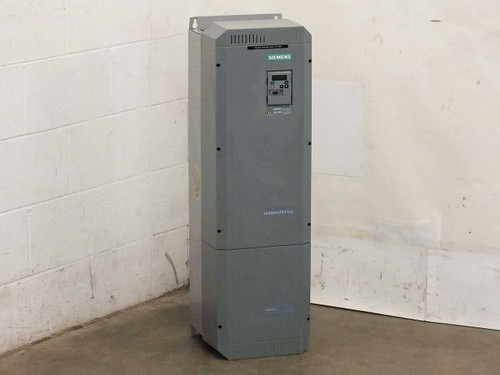

Siemens Midimaster Eco 6SE9525-4CJ50 frequency inverter — three-quarter front-left view of full floor-standing enclosure Siemens Midimaster Eco 6SE9525-4CJ50 — rear and right-side view showing ventilation slots and enclosure back panel
