Siemens Midimaster Eco 6SE9525-4CJ50 Frequency Inverter 15kW 54A 3-Phase 240V

(No reviews yet) Write a Review
SKU:
45302
MPN:
6SE95254CJ50
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
86.00 LBS
Shipping:
Calculated at Checkout
  • Siemens Midimaster Eco 6SE9525-4CJ50 frequency inverter — three-quarter front-left view of full floor-standing enclosure

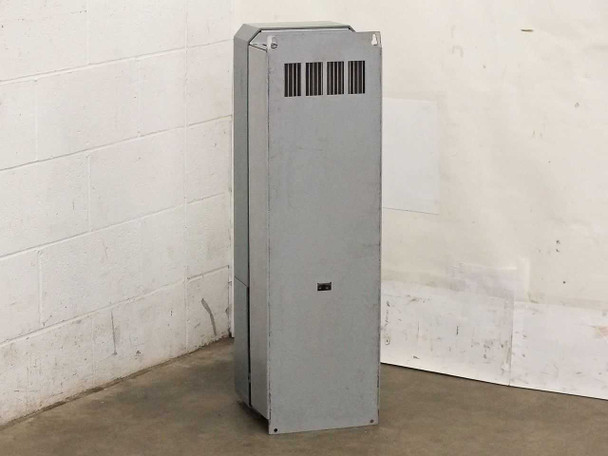

  • Siemens Midimaster Eco 6SE9525-4CJ50 — rear and right-side view showing ventilation slots and enclosure back panel
  • Siemens Midimaster Eco 6SE9525-4CJ50 rating plate showing 208-240V 3-phase 54A input, 15000W motor rating, IP20, IEC 536 VDE 0106

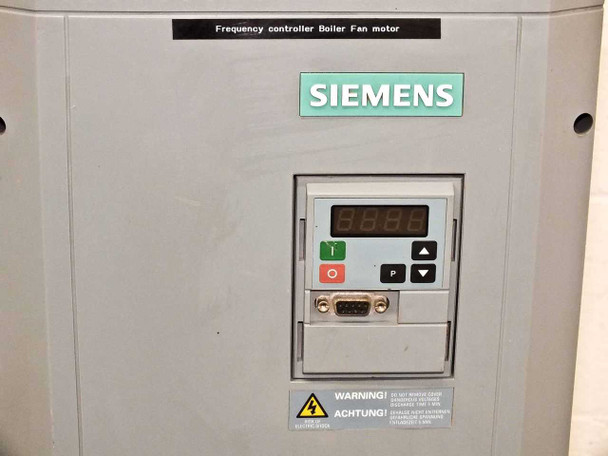

  • Siemens Midimaster Eco front panel close-up showing 4-digit LED display, start/stop buttons, DB9 serial port, and boiler fan motor label
  • Siemens Midimaster Eco nameplate label on enclosure door
  • Siemens Midimaster Eco Integrated Filter label on lower enclosure panel with surface stain visible
  • Siemens Midimaster Eco 6SE9525-4CJ50 interior view — drive chassis removed showing power board, capacitor bank, filter transformer, and control board
  • Siemens B84143-A96-R38 integrated EMC filter label — 3x96A, 50/60Hz, 208-480V, Issue A2, Date Code 01221
  • Siemens Midimaster Eco drive chassis top-down view showing control PCB, capacitor bank, cooling fan, and power terminals
  • Siemens Midimaster Eco control board close-up showing main processor IC, LED display module, and PCB markings G85139-E1721-A88
  • Siemens 6SE95254CJ50 Midimaster Eco Frequency Inverter Input: 208-240v 47-63Hz
  • Siemens 6SE95254CJ50 Midimaster Eco Frequency Inverter Input: 208-240v 47-63Hz
  • Siemens 6SE95254CJ50 Midimaster Eco Frequency Inverter Input: 208-240v 47-63Hz
  • Siemens 6SE95254CJ50 Midimaster Eco Frequency Inverter Input: 208-240v 47-63Hz
$545.00
Was: $1,500.00
Current Stock: 1

Sold Out

Description

Siemens Midimaster Eco 6SE9525-4CJ50 Frequency Inverter 15kW 54A 3-Phase 240V

Variable frequency drive (VFD) for controlling AC motor speed and torque. Accepts 208-240V 3-phase input and outputs 0-150 Hz to drive 15kW motors with variable torque loads.

Specifications & What's Included

  • Input: 208-240V AC 3-phase, 47-63 Hz, 61A max
  • Output: 0-150 Hz, 54A at variable voltage
  • Motor Rating: 15kW (15,000W)
  • Integrated EMC filter: Siemens B84143-A96-R38, 3x96A rated
  • Control: DB9 serial port, 4-digit LED display with keypad
  • Enclosure: IP20 floor-standing unit
  • Certifications: UL, CE, IEC 536, VDE 0106
  • Unit only; no cables or accessories included

Applications

Midimaster Eco drives are used in pump and fan applications requiring variable speed control. This unit was pulled from a boiler fan motor application. Commonly deployed in HVAC systems, industrial ventilation, and process cooling where soft-start and speed regulation reduce energy consumption and mechanical stress.

Condition: Used
This Siemens Midimaster Eco 6SE9525-4CJ50 frequency inverter has been inspected and appears to be in good condition. It was pulled from a working environment — the front panel label identifies its prior application as a boiler fan motor frequency controller. The enclosure shows typical light surface wear consistent with industrial use; a small stain is visible on the lower right side of the front door. The interior drive chassis, capacitor bank, control board, and integrated EMC filter (B84143-A96-R38) all appear intact with no visible damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
6SE9525-4CJ50
MPN:
6SE9525-4CJ50
Product Family:
Midimaster Eco
Type:
Variable Frequency Drive (VFD) / Frequency Inverter
SKU:
45302
Condition:
Used – Pulled from Working Environment
Input Voltage:
208-240V AC, ±10%
Input Phase:
3-Phase (3Ø)
Input Frequency:
47-63 Hz
Input Current:
61.0A
Output Voltage:
0 to Input Voltage
Output Current:
54.0A
Output Frequency Range:
0-150 Hz
Motor Power Rating:
15000W (15kW)
Load Type:
Variable Torque Loads Only
Enclosure Rating:
IP20
Protection Class:
IEC 536 / VDE 0106 Class 1
Temperature Range:
0-40°C
Integrated Filter:
Yes — Siemens B84143-A96-R38 EMC Filter
Filter Specs:
3x96A, 50/60Hz, 208-480V
Interface / Control Port:
DB9 serial port on front panel
Front Panel Display:
4-digit LED display with keypad
Certifications:
UL Listed, CE, IEC 536, VDE 0106
Country/Region of Manufacture:
EU (Made in EU)
Form Factor:
Floor-Standing Enclosure
Power Requirements:
208-240V AC, 3-Phase, 47-63Hz
Seller Notes:
Unit only; pulled from boiler fan motor application. No cables or accessories included.
Condition Notes:
Siemens Midimaster Eco 6SE9525-4CJ50 VFD inspected and in good condition. Pulled from a working boiler fan motor application. Light surface wear on enclosure; interior components appear intact. No cables included.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
