Description
Lenze AC Tech ESV552N04TMC SMVector Inverter Drive 7.5HP 460V 3-Phase 0-500Hz
This variable frequency drive (VFD) converts fixed-frequency AC power to adjustable voltage and frequency output for motor speed control. Rated 7.5 HP at 460V 3-phase input with output range 0-500 Hz.
Specifications & What's Included
- Model: ESV552N04TMC | Series: SMVector
- Input: 400/480V AC, 3-Phase, 50-60 Hz
- Output: 0-400/460V AC, 3-Phase, 0-500 Hz
- Power: 7.5 HP / 5.50 kW
- Input Current: 14.2A @ 400V / 12.4A @ 480V
- Output Current: 12.6A @ 400V / 11A @ 460V
- Enclosure: Type 4X (Indoor Only) | Wall/Panel Mount
- Features: EPM Memory on Board | UL/CE Certified
- Unit only; no accessories included
Applications
SMVector drives are used in industrial motor control applications including pumps, fans, conveyor systems, and compressors. The 0-500 Hz output capability supports both standard 50/60 Hz motors and specialized high-speed applications. Commonly integrated into manufacturing equipment, HVAC systems, and process automation where variable speed operation reduces energy consumption and extends motor life.
Condition: Used

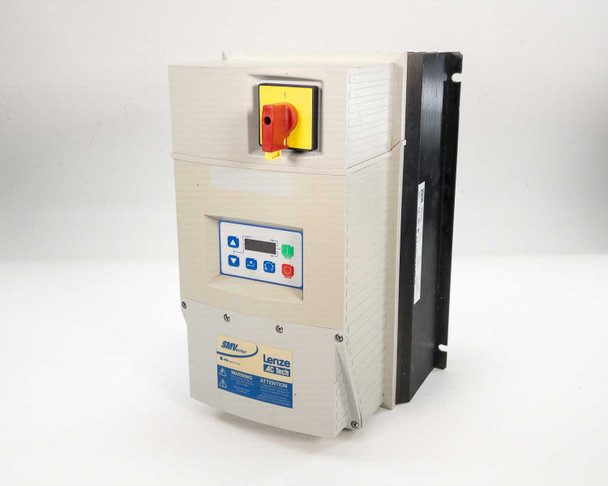

This Lenze AC Tech ESV552N04TMC SMVector frequency inverter drive has been inspected and appears to be in good used condition. The unit was pulled from a working environment and shows normal wear consistent with industrial service use. The cream-colored enclosure is intact with minor surface marks; the front operator panel, keypad, and LED display are present and intact. The rotary disconnect switch is in place and moves freely. The interior terminal wiring is present and appears undisturbed. The rear heatsink fins show some dust accumulation consistent with use but are structurally sound. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Lenze AC Tech ESV552N04TMC SMVector frequency inverter drive has been inspected and appears to be in good used condition. The unit was pulled from a working environment and shows normal wear consistent with industrial service use. The cream-colored enclosure is intact with minor surface marks; the front operator panel, keypad, and LED display are present and intact. The rotary disconnect switch is in place and moves freely. The interior terminal wiring is present and appears undisturbed. The rear heatsink fins show some dust accumulation consistent with use but are structurally sound. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Lenze AC Tech |
Model: |
ESV552N04TMC |
MPN: |
ESV552N04TMC |
ID Number: |
13471677 |
Type: |
Variable Frequency Drive (VFD) / Frequency Inverter |
Series: |
SMVector (SMVecto) |
SKU: |
52936 |
Country/Region of Manufacture: |
United States |
Input Voltage: |
400/480V AC, 3-Phase |
Input Current: |
14.2A @ 400V / 12.4A @ 480V |
Input Frequency: |
50-60 Hz |
Output Voltage: |
0-400/460V AC, 3-Phase |
Output Current: |
12.6A @ 400V / 11A @ 460V |
Output Frequency Range: |
0-500 Hz |
Power Rating (HP): |
7.5 HP |
Power Rating (kW): |
5.50 kW |
Phase: |
Three Phase |
Enclosure Rating: |
Type 4X (Indoor Only) |
EPM Memory on Board: |
Yes |
Certifications: |
UL, CE |
Form Factor: |
Wall/Panel Mount |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from a working environment and inspected. |
Condition Notes: |
This Lenze AC Tech ESV552N04TMC SMVector frequency inverter drive has been inspected and appears to be in good used condition. The unit was pulled from a working environment and shows normal wear consistent with industrial service use. |
