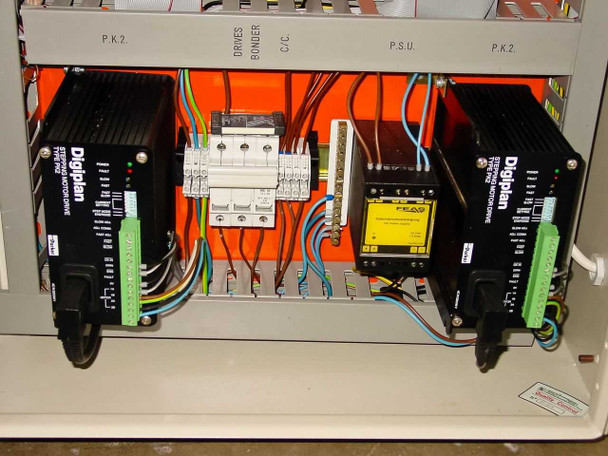

  • OEM 6200 cabinet interior lower section showing two Digiplan stepper motor drives, circuit breaker, FEA power supply unit, and wiring
  • HyBond 616 bonder on stainless table – rear three-quarter view showing power cable and rear chassis
  • HyBond 616 rear panel showing cooling fan, power inlet, and partial rear label (HyBond Inc., Escondido, CA)

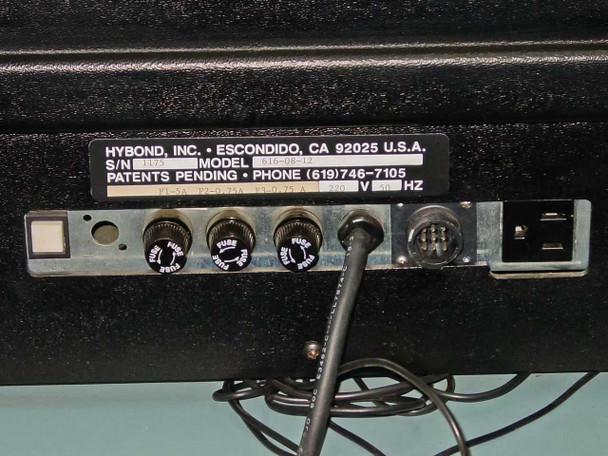

  • HyBond 616 rear label close-up: HyBond Inc. Escondido CA 92025 USA, Model 616, serial number, fuse ratings, voltage and Hz markings
  • OEM 6200 control cabinet door showing Main Isolator lockout switch (yellow/red), Power On amber indicator, and DB9 connector
$1,200.00
Was: $2,400.00
Current Stock: 1

Sold Out

Description

HyBond 616 Ultrasonic Wire Peg Bonder X-Y Linear Stage 220V Joystick OEM 6200

Benchtop ultrasonic wire and peg bonder system designed for microelectronics and semiconductor packaging applications. Equipment features motorized X-Y linear stage with joystick control, adjustable bonding parameters, and digital bond counting.

Specifications & What's Included

  • Model: HyBond 616 (MPN: 616-12)
  • Power: 220V AC
  • X-Y Linear Stage with dual Digiplan stepper motor drives
  • OEM 6200 control cabinet interface
  • Joystick controller with Step Down and Start buttons
  • Foot pedals included
  • Adjustable ultrasonic power, time, and force parameters
  • Digital bond count display
  • Workstation table mount
  • Vermaison Earth Bonding Point panel

Applications

Wire peg bonding equipment is used in semiconductor manufacturing for interconnecting microelectronic components and creating solder connections in integrated circuit packaging. The HyBond 616 supports both wire and peg bonding processes with programmable search, home, and bond sequences. Compatible with optional fiber-optic illumination and microscope systems for enhanced visibility during bonding operations.

Condition: For Parts or Not Working
This HyBond Model 616 Ultrasonic Peg Wire Bonder is being sold AS-IS for parts or repair. Due to its age, we are not able to verify functionality, and no working guarantee is made. The bonder head, X-Y linear stage, joystick controller, foot pedals, work table, and OEM 6200 controller cabinet with Digiplan stepper motor drives are all present and appear complete. Cosmetically the unit looks good overall — the table surface has light wear, the bonder chassis shows normal age-related patina, and the control panels appear intact with labels legible. The fiber-optic light source and microscope head are not included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
HyBond
Model:
616
MPN:
616-12
Type:
Ultrasonic Peg Wire Bonder
SKU:
39856
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes X-Y stage, joystick controller, foot pedals, table, and OEM 6200 cabinet. No fiber-optic light or microscope.
Country/Region of Manufacture:
United States
Power Requirements:
220V AC
Form Factor:
Benchtop / Workstation Table-Mounted
Controller:
OEM 6200 Interface Module cabinet
Motor Drives:
Digiplan stepper motor drives (x2)
Stage Type:
X-Y Linear Stage
Input Controls:
Joystick controller with Step Down and Start buttons
Foot Pedals:
Included
Bond Parameters:
Home, Search, Bond; U/S Power, Time, Force adjustable
Bond Count Display:
Digital bond count display on front panel
Application:
Ultrasonic wire/peg bonding, microelectronics, semiconductor packaging
Manufacturer Location:
HyBond Inc., Escondido, CA 92025 USA
Compatible With:
Fiber-optic illuminator and microscope head (not included)
Earthing / Grounding:
Vermaison Earth Bonding Point panel with 1MΩ resistors
Condition Notes:
HyBond 616 Ultrasonic Peg Wire Bonder sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Includes X-Y stage, joystick, foot pedals, table, OEM 6200 cabinet. No microscope or fiber-optic light.
