Hiden Analytical LMC Linear Motion Driver 100-240V 300VA Max LMD-01 LMD-02

(No reviews yet) Write a Review
SKU:
53320
MPN:
LMC
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout
  • Hiden Analytical LMC Linear Motion Driver – front panel with power switch and asset label, slight top surface wear
  • Hiden Analytical LMC Linear Motion Driver – front three-quarter view showing Hiden Analytical branding and asset tag

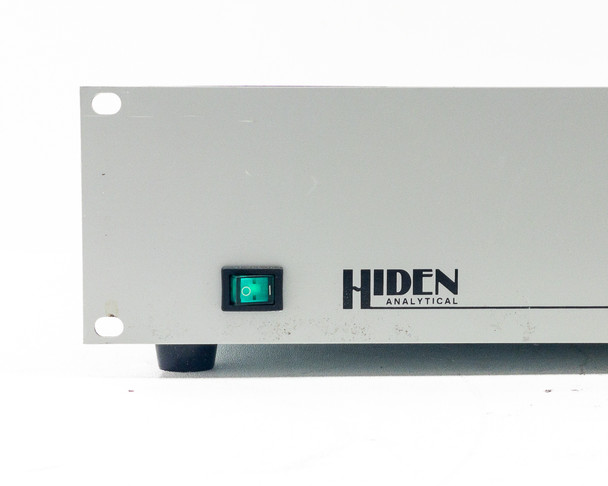

  • Hiden Analytical LMC Linear Motion Driver – close-up of front panel green power switch and Hiden Analytical logo

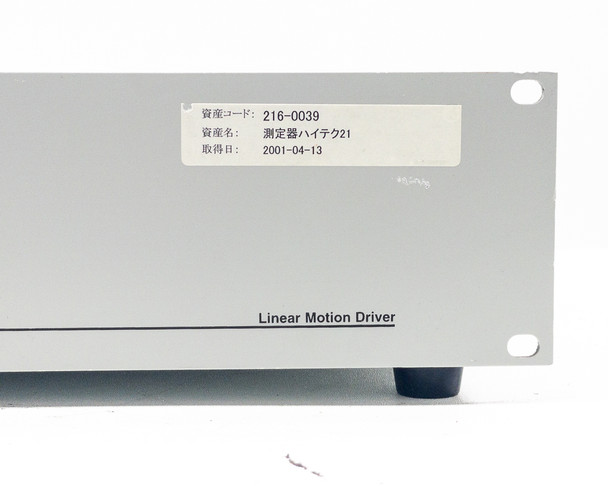

  • Hiden Analytical LMC Linear Motion Driver – front lower panel showing 'Linear Motion Driver' model designation and asset label with acquisition date 2001-04-13

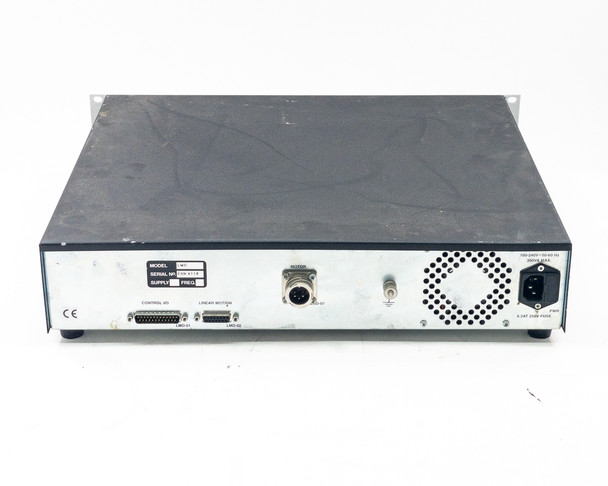

  • Hiden Analytical LMC Linear Motion Driver – full rear panel view showing Control I/O ports, motor connector, power inlet, and fan
  • Hiden Analytical LMC Linear Motion Driver – rear label close-up showing Model LMC, Serial No. ESN 4118, with Control I/O LMD-01 and Linear Motion LMD-02 DB connectors
  • Hiden Analytical LMC Linear Motion Driver – close-up of Model LMC label and LMD-01 / LMD-02 D-sub connector ports

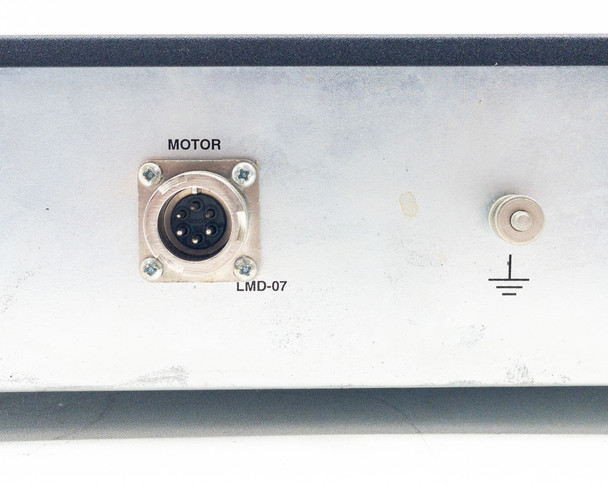

  • Hiden Analytical LMC Linear Motion Driver – rear panel Motor connector LMD-07 (4-pin circular) and ground terminal
  • Hiden Analytical LMC Linear Motion Driver – rear panel power section showing IEC inlet, fan grille, 100-240V 50-60Hz 300VA Max label, and 6.3AT 250V fuse
  • Hiden Analytical LMC Linear Motion Driver – side/bottom view showing ventilation slots and rubber feet

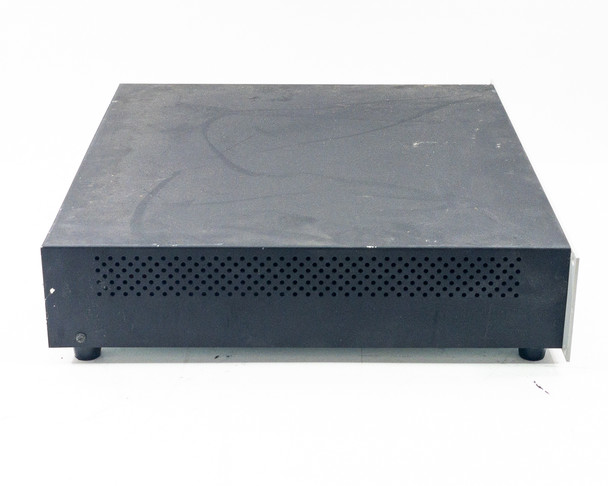

  • Hiden Analytical LMC Linear Motion Driver 100-240VAC, 300VA Max.
$1,500.00
Was: $3,000.00
Current Stock: 1

Sold Out

Description

Hiden Analytical LMC Linear Motion Driver 100-240V 300VA Max LMD-01 LMD-02

2U rackmount linear motion driver manufactured by Hiden Analytical in the United Kingdom. Controls stepper or servo motor positioning for precision analytical instrumentation via LMD-series connectors.

Specifications & What's Included

  • Power: 100-240V AC, 50-60Hz, 300VA max
  • Fuse: 6.3AT 250V
  • Control I/O: LMD-01 interface
  • Linear Motion: LMD-02 interface
  • Motor Connector: LMD-07 (4-pin circular)
  • Form Factor: 2U rackmount

Applications

Linear motion drivers are integral to analytical instruments requiring automated sample positioning or axis control. This unit was designed for integration into Hiden Analytical mass spectrometer systems and compatible laboratory equipment. Typical use involves precise sample stage movement, automated scanning, or detector positioning within vacuum or atmospheric analysis setups.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
Hiden Analytical LMC Linear Motion Driver 100-240V 300VA Max (LMD-01/LMD-02) in used condition. This unit has been tested and is in working order. Cosmetically, the silver front panel is clean with minor scuffing, while the black top cover shows noticeable surface marks and scratching consistent with lab/rack use. All rear connectors (Control I/O, Linear Motion, and Motor ports) are intact with no physical damage. The IEC power inlet and fan grille are present and undamaged. A reliable device suitable for continued operation or integration into existing systems.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hiden Analytical
Model:
LMC
MPN:
LMC
SKU:
53320
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Sold as-is for parts or repair. Not tested.
Form Factor:
Rackmount, 2U
Power Requirements:
100-240V AC, 50-60Hz, 300VA Max
Fuse Rating:
6.3AT 250V
Interface / Connectors:
Control I/O (LMD-01), Linear Motion (LMD-02)
Motor Connector:
LMD-07 (4-pin circular)
Application / Use Case:
Linear motion control for analytical instruments
Compatible With:
Hiden Analytical mass spectrometer systems
Country of Manufacture:
United Kingdom
Condition Notes:
Hiden Analytical LMC Linear Motion Driver, tested and working. Minor cosmetic wear on silver panel and scratched black cover from lab use. All connectors and power inlet intact. Ready for use.
