Description
Hiden Analytical ESPION Advanced Langmuir Probe Controller 115V 300VA
Rackmount controller unit for Langmuir probe plasma diagnostics. Measures plasma parameters in discharge chambers and etch systems using external probe hardware.
Specifications & What's Included
- Model: ESPION; Manufacturer: Hiden Analytical (UK)
- Form Factor: 2U rackmount
- Power: 115V AC, 300VA max, 6.3A 250V fuse
- Interfaces: RS232, RS485/RS422, 10Base2 Ethernet, DIN analogue input
- Rear Ports: ESP-01 Trigger, ESP-02 Z-Drive, ESP-03 AUX I/O, ESP-04 Probe, MC-04 RS232, MC-03 RS485/RS422, MC-02 10Base2, ESP-07 analogue input
- Unit only—no probe or accessories included
Applications
Used in plasma diagnostics and process monitoring for plasma etch chambers and laboratory discharge systems. Compatible with Hiden Langmuir probe measurement systems. Interfaces with data acquisition and process control networks via serial and Ethernet connections.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
Condition: Used

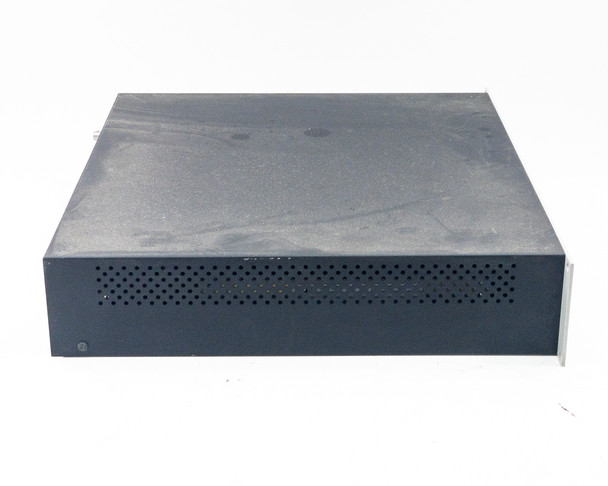

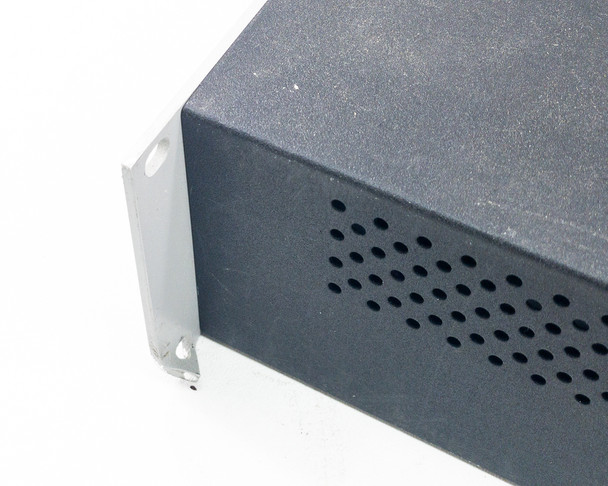

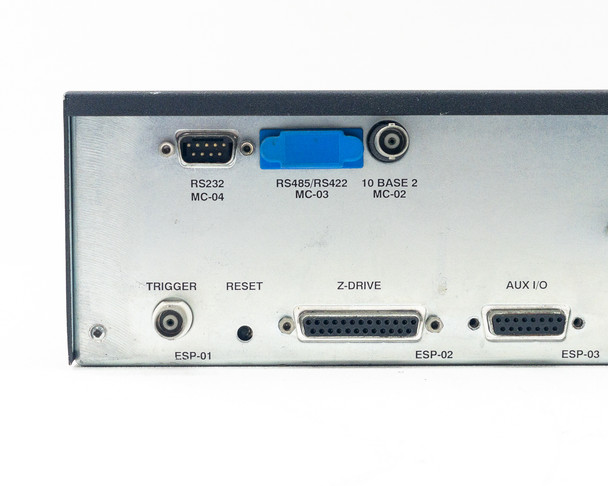

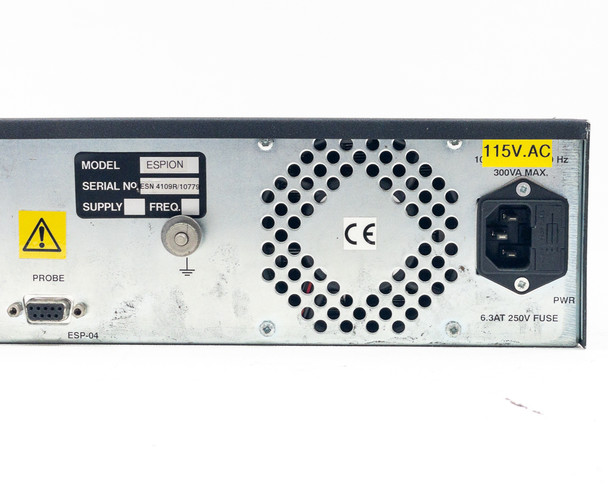

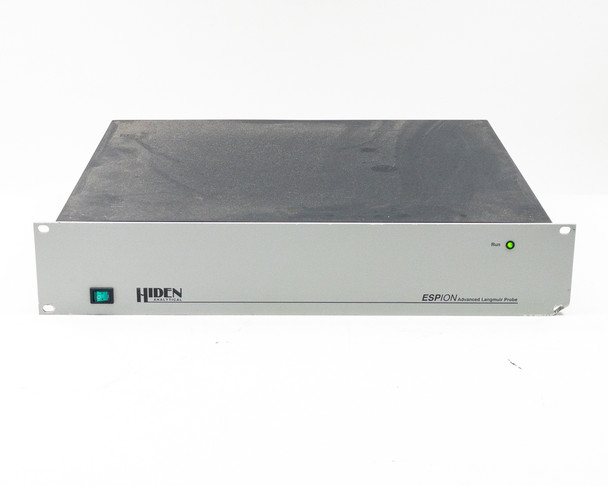

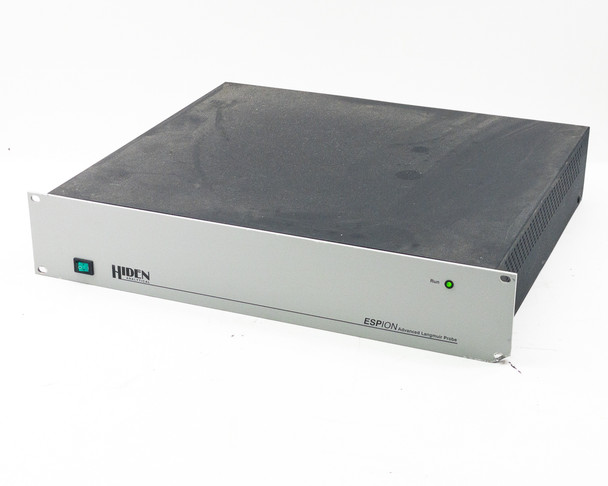

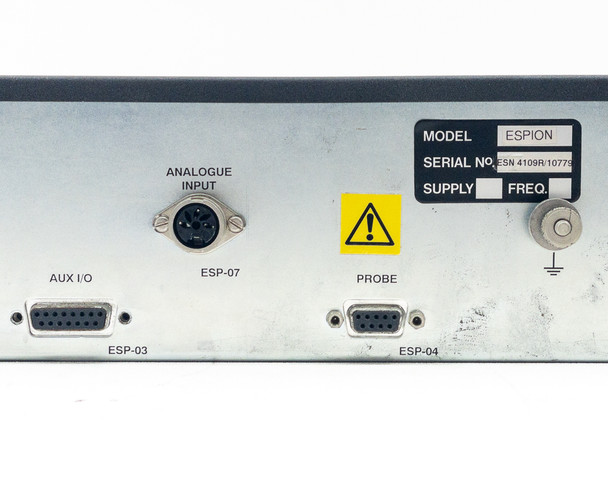

Hiden Analytical ESPION Advanced Langmuir Probe Controller 115V 300VA in used condition. This unit was removed from a working laboratory environment during a system upgrade and has been tested and verified to power on and function properly. The silver front panel is clean with light scuffing near the rack ears; the black top cover shows dust accumulation and minor surface soiling consistent with lab use. All rear connectors (RS232 MC-04, RS485/RS422 MC-03, 10Base2 MC-02, Trigger ESP-01, Z-Drive ESP-02, AUX I/O ESP-03, Probe ESP-04, and Analogue Input ESP-07) are intact with no visibly bent pins or damaged housings. The IEC power inlet and fuse holder are present and functional.
Hiden Analytical ESPION Advanced Langmuir Probe Controller 115V 300VA in used condition. This unit was removed from a working laboratory environment during a system upgrade and has been tested and verified to power on and function properly. The silver front panel is clean with light scuffing near the rack ears; the black top cover shows dust accumulation and minor surface soiling consistent with lab use. All rear connectors (RS232 MC-04, RS485/RS422 MC-03, 10Base2 MC-02, Trigger ESP-01, Z-Drive ESP-02, AUX I/O ESP-03, Probe ESP-04, and Analogue Input ESP-07) are intact with no visibly bent pins or damaged housings. The IEC power inlet and fuse holder are present and functional.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Hiden Analytical |
Model: |
ESPION |
MPN: |
ESPION |
SKU: |
53319 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no probe or accessories included |
Form Factor: |
Rackmount, 2U |
Power Requirements: |
115V AC, 300VA Max, 6.3AT 250V Fuse |
Country of Manufacture: |
United Kingdom |
Application / Use Case: |
Langmuir probe plasma diagnostics |
Interface Type: |
RS232, RS485/RS422, 10 Base 2, AUX I/O |
Connector Types: |
DB-9, DB-25, BNC, DIN Analogue Input |
Rear Ports: |
ESP-01 Trigger, ESP-02 Z-Drive, ESP-03 AUX I/O, ESP-04 Probe |
Communication Ports: |
MC-04 RS232, MC-03 RS485/RS422, MC-02 10Base2 |
Analogue Input: |
ESP-07 DIN connector |
Compatible With: |
Hiden Langmuir probe systems, plasma etch chambers |
Measurement Type: |
Plasma parameter measurement via Langmuir probe |
Condition Notes: |
Hiden Analytical ESPION Advanced Langmuir Probe Controller 115V 300VA. Tested, powers on and functions. Lab-used cosmetics: light scuffing on silver front panel, dust on black cover. All connectors intact. Ready for operation. |
