Description
GNP PDSi 3U cPSB 8FE+2GE Switch RTM 1-503753C1 Rev B CompactPCI RTM
Rear Transition Module (RTM) for CompactPCI systems providing integrated Ethernet switching. This card plugs into a 3U CompactPCI (cPSB) backplane and supplies network connectivity to the host chassis.
Specifications & What's Included
- 8 Fast Ethernet (FE) ports, 2 Gigabit Ethernet (GE) ports—all RJ45
- 3U CompactPCI (cPSB) RTM form factor
- CompactPCI backplane connector interface
- Console port (RJ45)
- Hardware Revision B; manufactured August 2003
- RTM card only; no chassis or accessories
Applications
CompactPCI RTM switches were deployed in telecom, industrial control, and embedded systems requiring onboard Ethernet distribution. This module integrates into GNP PDSi and compatible 3U cPSB chassis to supply managed or unmanaged switching for distributed I/O and interconnect. Typical use includes carrier-grade telecom shelves, industrial automation racks, and military/aerospace computing platforms.
Condition: Used

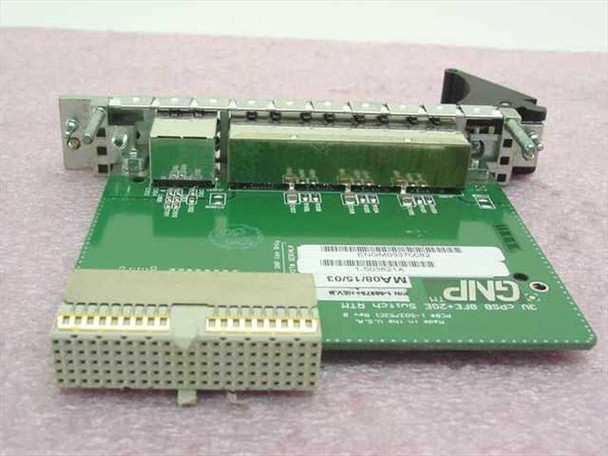

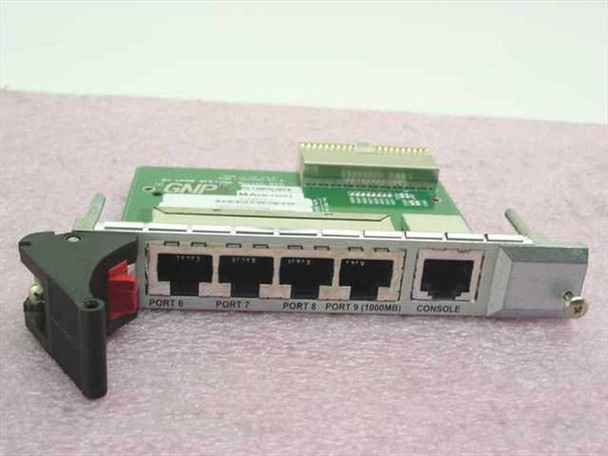

This GNP PDSi 3U cPSB 8FE+2GE Switch RTM (P/N 1-503753C1 Rev B) has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or missing components. The RJ45 ports and console port on the front panel appear intact and undamaged. The CompactPCI backplane connectors on the reverse side look clean and properly seated. Normal light handling wear is present consistent with a card that was previously installed in a system. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This GNP PDSi 3U cPSB 8FE+2GE Switch RTM (P/N 1-503753C1 Rev B) has been inspected and is in good condition. The PCB is clean with no visible damage, cracked traces, or missing components. The RJ45 ports and console port on the front panel appear intact and undamaged. The CompactPCI backplane connectors on the reverse side look clean and properly seated. Normal light handling wear is present consistent with a card that was previously installed in a system. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
GNP PDSi |
Model: |
1-503753C1 |
MPN: |
1-503753C1 |
Secondary Model: |
1-503753+1 Rev B |
Type: |
CompactPCI Rear Transition Module (RTM) |
SKU: |
24413 |
Form Factor: |
3U CompactPCI (cPSB) RTM |
Number of Ports: |
8 Fast Ethernet (FE) + 2 Gigabit Ethernet (GE) |
Port Type: |
RJ45 (Fast Ethernet); RJ45 1000MB (Gigabit); Console |
Switch Type: |
8FE + 2GE Ethernet Switch RTM |
Connector Type: |
RJ45 |
Hardware Revision: |
Rev B |
PCB Number: |
PCB# 1-503753C1 Rev B |
Manufacture Date: |
August 15, 2003 |
Country/Region of Manufacture: |
United States |
Interface: |
CompactPCI (cPSB) backplane connector |
Condition: |
Used – Inspected, Good Condition |
Seller Notes: |
RTM card only; no chassis or accessories included. |
Condition Notes: |
GNP PDSi 1-503753C1 3U cPSB 8FE+2GE Switch RTM Rev B. Inspected, in good condition. PCB clean, RJ45 and console ports intact, backplane connectors undamaged. Normal light wear from prior installation. |
