GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board J2 PDSi Module

(No reviews yet) Write a Review
SKU:
24331
MPN:
1-503285 AM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board — front view showing four RJ-45 ports (Port 1, Port 2, Port 3, MGT Port) and ejector handle
  • GNP 1-503285 AM cPCI Switch Board — rear/top view showing J2 connector, GNP label, board traces, and RJ-45 port array

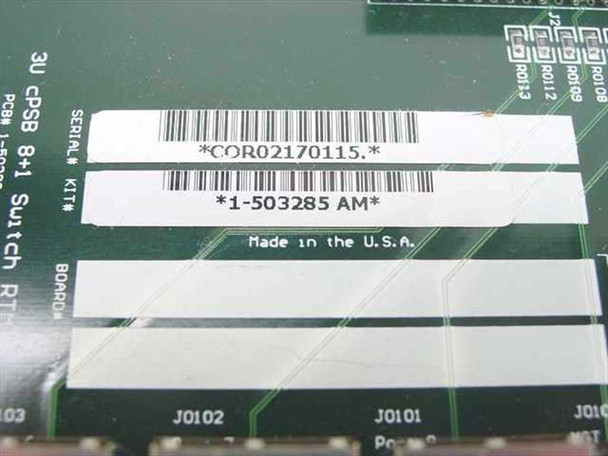

  • GNP 1-503285 AM board label closeup showing serial number COR02170115, part number 1-503285 AM, and Made in the U.S.A. markings
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board J2 PDSi Module

The GNP 1-503285 AM is a 3U CompactPCI (cPCI) Peripheral Switch Board (cPSB) configured as an 8+1 Rear Transition Module (RTM) with a J2 bus connection. It is part of GNP Computers' PDSi (Packet Data Switch Interface) product line, designed to provide switched connectivity within 3U cPCI chassis environments. The board features four front-panel RJ-45 ports — three data ports (Port 1, Port 2, Port 3) and one dedicated management port (MGT Port) — along with a rear J2 connector for backplane integration. Manufactured in the U.S.A.

Specifications & What's Included

  • Part Number: 1-503285 AM
  • Form Factor: 3U CompactPCI (cPCI)
  • Module Type: Peripheral Switch Board (cPSB) / Rear Transition Module (RTM)
  • Configuration: 8+1 Switch
  • Bus Interface: CompactPCI Standard Bus, J2 Connector
  • Front Panel Ports: 3x RJ-45 data ports (Port 1, Port 2, Port 3) + 1x RJ-45 management port (MGT Port)
  • Rear Connector: J2 backplane interface
  • Board includes ejector/extraction handle (black lever with red tab)
  • Country of Manufacture: United States
  • Included: Board only

Applications

CompactPCI (cPCI) is a ruggedized, rack-oriented variant of the PCI bus standard defined by the PICMG consortium, widely adopted in telecommunications, industrial automation, military, and embedded computing applications from the mid-1990s onward. The 3U form factor is common in carrier-grade and telecom equipment where board density and hot-swap capability are priorities. Rear Transition Modules (RTMs) like this board extend signal and connectivity from the front card through the backplane's J2 connector to rear-panel I/O — a standard cPCI architecture that keeps front panels clean and cabling at the rear of the chassis. The 8+1 peripheral switch configuration is typical of platforms managing multiple subsystem connections with one supervisory or management path. This type of board is found in telecom switching systems, signal processing platforms, defense electronics, and industrial control chassis requiring the reliability and high-availability characteristics of the cPCI standard.

Condition: Used
This GNP 1-503285 AM 3U cPSB 8+1 RTM CompactPCI Switch Board has been inspected and appears to be in good condition. It was pulled from a working cPCI system environment where it was previously in active use. The board shows normal handling wear consistent with prior installation. The RJ-45 ports and J2 connector appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP Computers
Model:
1-503285 AM
MPN:
1-503285 AM
Type:
3U CompactPCI Peripheral Switch Board / RTM
SKU:
24331
Form Factor:
3U CompactPCI (cPCI)
Bus Type:
CompactPCI (cPCI)
Configuration:
8+1 Switch
Module Type:
Rear Transition Module (RTM)
Connector:
J2
Interface:
cPCI Standard Bus with J2 Connection
Number of Ports:
3 data ports + 1 management port (RJ-45)
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from a working cPCI system environment.
Compatible With:
CompactPCI (cPCI) 3U chassis and backplane systems
Condition Notes:
GNP 1-503285 AM 3U cPSB cPCI Switch Board. Inspected, in good condition. Pulled from a working cPCI system environment. Normal handling wear. RJ-45 ports and J2 connector appear intact. View photos; contact us with questions.
View AllClose

Related Products

Related Products

GNP 1-503821A 3U cPSB 8FE+2GE Switch RTM front panel showing RJ45 Fast Ethernet ports, two Gigabit Ethernet ports, and console port with ejector handle GNP 1-503821A cPCI Rear Transition Module PCB reverse side showing J2 backplane connector and board layout
Add to Cart
Quick view

GNP 1-503821A PDSi 3U cPSB 8FE+2GE Switch RTM cPCI Rear Transition Module

GNP

$95.00
Was: $200.00
GNP 1-503821A PDSi 3U cPSB 8FE+2GE Switch RTM cPCI Rear Transition ModuleThis is a CompactPCI rear transition module designed for GNP PDSi chassis systems. It provides network switching and...
24332
SKU:
24332
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
GNP
Model:
1-503821A
MPN:
1-503821A
Secondary Model:
1-503754 Rev B
Type:
cPCI Rear Transition Module (RTM)
SKU:
24332
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no additional accessories included.
Country/Region of Manufacture:
United States
Form Factor:
3U CompactPCI (cPCI) Module
Bus Type:
CompactPCI (cPCI) Standard Bus
Connector:
J2 Connection
Number of Ports:
10 (8x Fast Ethernet + 2x Gigabit Ethernet + Console)
Port Types:
8x 10/100 FE RJ45, 2x GE (1000MB) RJ45, 1x Console RJ45
Interface Type:
Fast Ethernet, Gigabit Ethernet
PCB Number:
1-503753C1 Rev B
Manufacture Date:
August 15, 2003
Compatible With:
GNP PDSi CompactPCI chassis systems
Condition Notes:
GNP 1-503821A 3U cPSB 8FE+2GE Switch RTM. Inspected, in good condition. Pulled from a working environment where it was in use. Normal handling wear. Please view photos and contact us with questions.

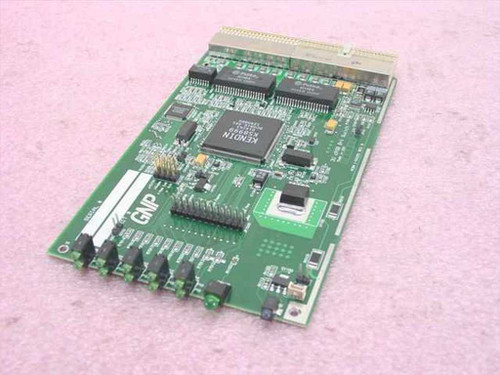

GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card – angled top view showing Kendin controller IC, memory chips, and J1/J2 CompactPCI edge connectors GNP PDSi 1-503252CN CompactPCI Switch Card – side-angle view showing full board layout with Kendin IC, header pins, and cPCI edge connector detail
Add to Cart
Quick view

GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card CompactPCI J1 J2 Bus

GNP

$40.00
Was: $125.00
GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card CompactPCI J1 J2 BusA 3U CompactPCI bus switch card with 8+1 switching configuration. This card routes and manages data traffic across CompactPCI...
24330
SKU:
24330
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Brand:
GNP PDSi
Model:
1-503252CN
MPN:
1-503252CN
Type:
CompactPCI cPSB 8+1 Bus Switch Card
SKU:
24330
Bus Standard:
CompactPCI (cPCI) / cPSB
Form Factor:
3U CompactPCI Card/Module
Switch Configuration:
8+1
Connector Type:
J1 and J2 CompactPCI Bus Connectors
Main Controller Chip:
Kendin (large QFP IC, part number partially legible)
Condition:
Used – Inspected
Seller Notes:
Card only; no additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card. Inspected, in good used condition. Board is clean; J1/J2 connectors intact. Pulled from a working environment.

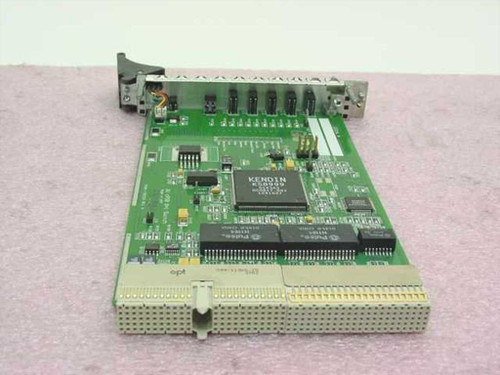

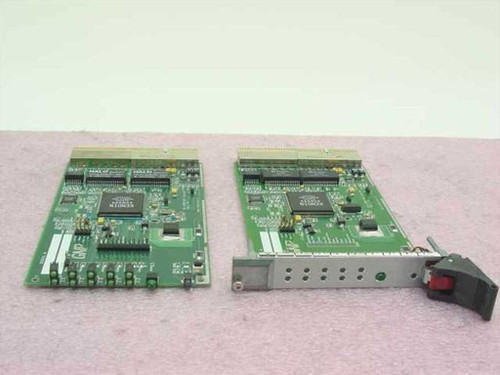

GNP PDSi 3U cPSB 8+1 Switch 1-503251 – two PCB modules and front panel bracket, top view GNP PDSi 3U cPSB 8+1 Switch 1-503251 Rev A – single module angled view showing Kendin K38999 controller chip and edge connector
Add to Cart
Quick view

GNP PDSi 3U cPSB 8+1 Switch Module 1-503251 Rev A cPCI Backplane Card

GNP

$35.00
Was: $70.00
GNP PDSi 3U cPSB 8+1 Switch Module 1-503251 Rev A cPCI Backplane CardA 3U CompactPCI switch module designed for cPSB (CompactPCI Switched Backplane) systems. This 8+1 configuration provides switching...
24414
SKU:
24414
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
GNP PDSi
Model:
1-503251
MPN:
1-503251
Secondary Model:
PCB# 1-503251 REV. A
Type:
3U CompactPCI cPSB 8+1 Switch Module
SKU:
24414
Form Factor:
3U CompactPCI (cPCI) Card/Module
Hardware Revision:
Rev A
Bus Interface:
CompactPCI (cPCI) / cPSB
Switch Configuration:
8+1
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Two PCBs and one front panel bracket visible in photos; qty may vary
Compatible With:
CompactPCI / cPSB 3U chassis systems
Condition Notes:
GNP PDSi 3U cPSB 8+1 Switch 1-503251 Rev A. Inspected and in good used condition. Boards appear clean with no visible damage. See photos for exact contents.

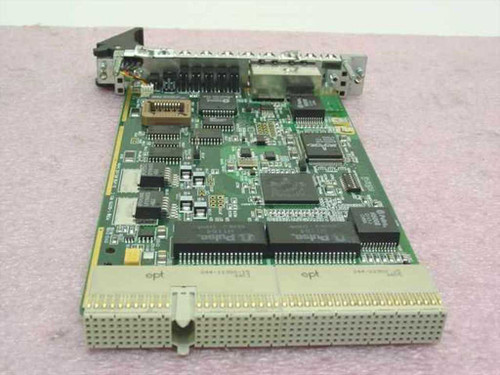

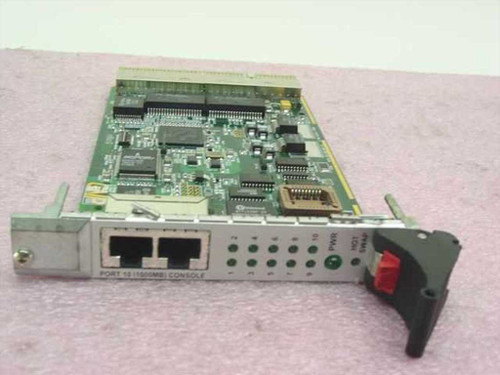

GNP PDSi 1-503751 3U cPSB 8FE+2GE Switch Module — front panel view showing RJ-45 ports, LED indicators, and power LED GNP PDSi 1-503751 Ethernet Switch Module — rear/board view showing PCB components, ICs, and CompactPCI edge connector
Add to Cart
Quick view

GNP PDSi 1-503751 Rev C 3U cPCI cPSB 8FE 2GE Ethernet Switch Module

GNP

$95.00
Was: $200.00
GNP PDSi 1-503751 Rev C 3U cPCI cPSB 8FE 2GE Ethernet Switch ModuleManaged Ethernet switch module for 3U CompactPCI systems. This PCB provides network connectivity with 8 Fast Ethernet ports and 2...
24415
SKU:
24415
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
GNP PDSi
Model:
1-503751
MPN:
1-503751
PCB Revision:
Rev C
Type:
Embedded Ethernet Switch Module
SKU:
24415
Form Factor:
3U CompactPCI / cPSB
Number of Ports:
10 (8x Fast Ethernet + 2x Gigabit Ethernet)
Fast Ethernet Ports:
8
Gigabit Ethernet Ports:
2
Port Speed:
10/100 Mbps (FE), 1 Gbps (GE)
Bus Interface:
cPSB / CompactPCI
Management Type:
Managed
Interface Type:
Ethernet, Fast Ethernet, Gigabit Ethernet
Connector Type:
RJ-45, CompactPCI backplane
Condition:
Used – Inspected and in Good Condition
Seller Notes:
PCB only — no chassis or accessories included
Compatible With:
3U cPSB / CompactPCI chassis and backplanes
Condition Notes:
GNP PDSi 1-503751 Rev C 3U cPSB 8FE+2GE Switch Module. Inspected and in good used condition. Normal light wear from prior installation. Ports and edge connector appear intact and undamaged.

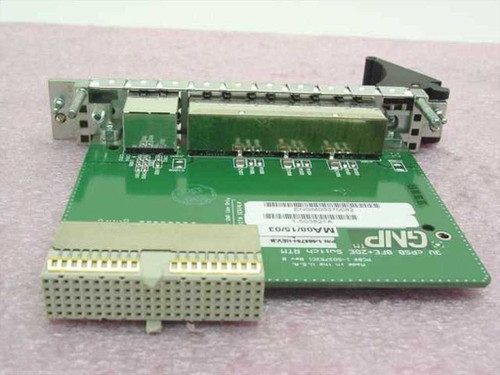

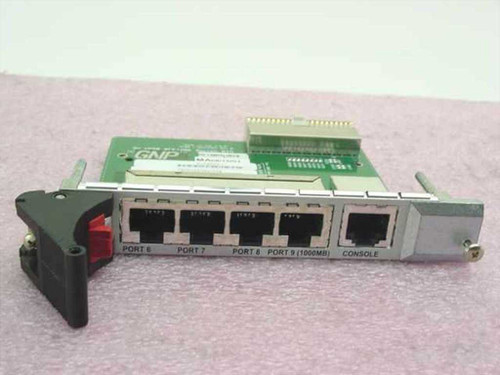

GNP PDSi 1-503753C1 3U cPSB Switch RTM – front panel view showing Port 6, 7, 8, Port 9 (1000MB) RJ45 ports and Console port GNP PDSi 1-503753C1 3U cPSB Switch RTM – rear/board view showing CompactPCI backplane connectors and PCB layout
