GNP 1-503821A PDSi 3U cPSB 8FE+2GE Switch RTM cPCI Rear Transition Module

(No reviews yet) Write a Review
SKU:
24332
MPN:
1-503821A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

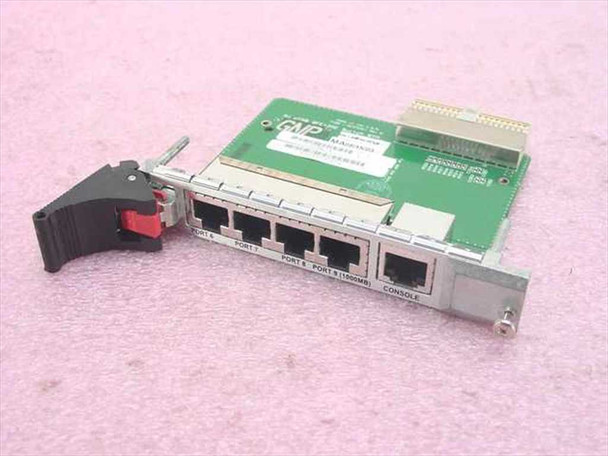

  • GNP 1-503821A 3U cPSB 8FE+2GE Switch RTM front panel showing RJ45 Fast Ethernet ports, two Gigabit Ethernet ports, and console port with ejector handle

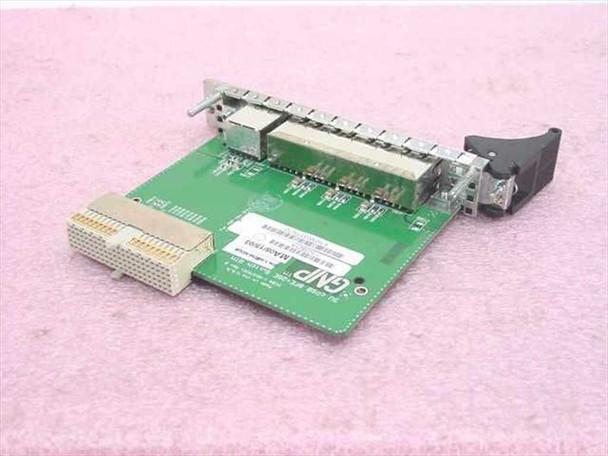

  • GNP 1-503821A cPCI Rear Transition Module PCB reverse side showing J2 backplane connector and board layout

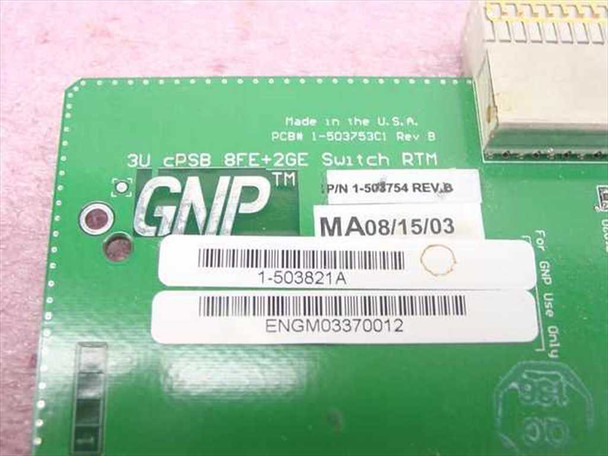

  • GNP 1-503821A RTM PCB label showing part number 1-503821A, PCB number 1-503753C1 Rev B, manufacture date MA08/15/03, and Made in USA marking
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

GNP 1-503821A PDSi 3U cPSB 8FE+2GE Switch RTM cPCI Rear Transition Module

This is a CompactPCI rear transition module designed for GNP PDSi chassis systems. It provides network switching and connectivity for industrial and telecom applications using the cPCI standard bus architecture.

Specifications & What's Included

  • Model: GNP 1-503821A (PCB 1-503753C1 Rev B)
  • Form Factor: 3U CompactPCI module
  • Ports: 8x Fast Ethernet (10/100), 2x Gigabit Ethernet (1000MB), 1x Console
  • Connector: J2 CompactPCI standard bus
  • Manufactured: August 15, 2003
  • Unit only; no accessories included

Applications

RTM modules are used in CompactPCI systems for industrial networking, telecom infrastructure, and embedded computing applications. This unit was deployed in GNP PDSi chassis systems to provide Ethernet switching and management connectivity. CompactPCI architecture was widely adopted in telecommunications equipment, network infrastructure, and ruggedized industrial systems through the 2000s.

Condition: Used
This GNP 1-503821A PDSi 3U cPSB 8FE+2GE Switch Rear Transition Module has been inspected and is in good condition. It was pulled from a working environment where it was in use. The board and front panel are clean with normal handling wear consistent with prior installation. The RJ45 ports and ejector hardware appear intact. Please view our photos and contact us with any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP
Model:
1-503821A
MPN:
1-503821A
Secondary Model:
1-503754 Rev B
Type:
cPCI Rear Transition Module (RTM)
SKU:
24332
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no additional accessories included.
Country/Region of Manufacture:
United States
Form Factor:
3U CompactPCI (cPCI) Module
Bus Type:
CompactPCI (cPCI) Standard Bus
Connector:
J2 Connection
Number of Ports:
10 (8x Fast Ethernet + 2x Gigabit Ethernet + Console)
Port Types:
8x 10/100 FE RJ45, 2x GE (1000MB) RJ45, 1x Console RJ45
Interface Type:
Fast Ethernet, Gigabit Ethernet
PCB Number:
1-503753C1 Rev B
Manufacture Date:
August 15, 2003
Compatible With:
GNP PDSi CompactPCI chassis systems
Condition Notes:
GNP 1-503821A 3U cPSB 8FE+2GE Switch RTM. Inspected, in good condition. Pulled from a working environment where it was in use. Normal handling wear. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

GNP PDSi 1-503751 3U cPSB 8FE+2GE Switch Module — front panel view showing RJ-45 ports, LED indicators, and power LED GNP PDSi 1-503751 Ethernet Switch Module — rear/board view showing PCB components, ICs, and CompactPCI edge connector
Add to Cart
Quick view

GNP PDSi 1-503751 Rev C 3U cPCI cPSB 8FE 2GE Ethernet Switch Module

GNP

$95.00
Was: $200.00
GNP PDSi 1-503751 Rev C 3U cPCI cPSB 8FE 2GE Ethernet Switch ModuleManaged Ethernet switch module for 3U CompactPCI systems. This PCB provides network connectivity with 8 Fast Ethernet ports and 2...
24415
SKU:
24415
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
GNP PDSi
Model:
1-503751
MPN:
1-503751
PCB Revision:
Rev C
Type:
Embedded Ethernet Switch Module
SKU:
24415
Form Factor:
3U CompactPCI / cPSB
Number of Ports:
10 (8x Fast Ethernet + 2x Gigabit Ethernet)
Fast Ethernet Ports:
8
Gigabit Ethernet Ports:
2
Port Speed:
10/100 Mbps (FE), 1 Gbps (GE)
Bus Interface:
cPSB / CompactPCI
Management Type:
Managed
Interface Type:
Ethernet, Fast Ethernet, Gigabit Ethernet
Connector Type:
RJ-45, CompactPCI backplane
Condition:
Used – Inspected and in Good Condition
Seller Notes:
PCB only — no chassis or accessories included
Compatible With:
3U cPSB / CompactPCI chassis and backplanes
Condition Notes:
GNP PDSi 1-503751 Rev C 3U cPSB 8FE+2GE Switch Module. Inspected and in good used condition. Normal light wear from prior installation. Ports and edge connector appear intact and undamaged.
GNP PDSi 1-503753C1 3U cPSB Switch RTM – front panel view showing Port 6, 7, 8, Port 9 (1000MB) RJ45 ports and Console port GNP PDSi 1-503753C1 3U cPSB Switch RTM – rear/board view showing CompactPCI backplane connectors and PCB layout
Add to Cart
Quick view

GNP PDSi 3U cPSB 8FE+2GE Switch RTM 1-503753C1 Rev B CompactPCI RTM

GNP

$65.00
Was: $125.00
GNP PDSi 3U cPSB 8FE+2GE Switch RTM 1-503753C1 Rev B CompactPCI RTMRear Transition Module (RTM) for CompactPCI systems providing integrated Ethernet switching. This card plugs into a 3U CompactPCI...
24413
SKU:
24413
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
GNP PDSi
Model:
1-503753C1
MPN:
1-503753C1
Secondary Model:
1-503753+1 Rev B
Type:
CompactPCI Rear Transition Module (RTM)
SKU:
24413
Form Factor:
3U CompactPCI (cPSB) RTM
Number of Ports:
8 Fast Ethernet (FE) + 2 Gigabit Ethernet (GE)
Port Type:
RJ45 (Fast Ethernet); RJ45 1000MB (Gigabit); Console
Switch Type:
8FE + 2GE Ethernet Switch RTM
Connector Type:
RJ45
Hardware Revision:
Rev B
PCB Number:
PCB# 1-503753C1 Rev B
Manufacture Date:
August 15, 2003
Country/Region of Manufacture:
United States
Interface:
CompactPCI (cPSB) backplane connector
Condition:
Used – Inspected, Good Condition
Seller Notes:
RTM card only; no chassis or accessories included.
Condition Notes:
GNP PDSi 1-503753C1 3U cPSB 8FE+2GE Switch RTM Rev B. Inspected, in good condition. PCB clean, RJ45 and console ports intact, backplane connectors undamaged. Normal light wear from prior installation.
GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board — front view showing four RJ-45 ports (Port 1, Port 2, Port 3, MGT Port) and ejector handle GNP 1-503285 AM cPCI Switch Board — rear/top view showing J2 connector, GNP label, board traces, and RJ-45 port array
Add to Cart
Quick view

GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board J2 PDSi Module

GNP

$65.00
Was: $125.00
GNP 1-503285 AM 3U cPSB 8+1 RTM cPCI Switch Board J2 PDSi ModuleThe GNP 1-503285 AM is a 3U CompactPCI (cPCI) Peripheral Switch Board (cPSB) configured as an 8+1 Rear Transition Module (RTM) with a...
24331
SKU:
24331
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
GNP Computers
Model:
1-503285 AM
MPN:
1-503285 AM
Type:
3U CompactPCI Peripheral Switch Board / RTM
SKU:
24331
Form Factor:
3U CompactPCI (cPCI)
Bus Type:
CompactPCI (cPCI)
Configuration:
8+1 Switch
Module Type:
Rear Transition Module (RTM)
Connector:
J2
Interface:
cPCI Standard Bus with J2 Connection
Number of Ports:
3 data ports + 1 management port (RJ-45)
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from a working cPCI system environment.
Compatible With:
CompactPCI (cPCI) 3U chassis and backplane systems
Condition Notes:
GNP 1-503285 AM 3U cPSB cPCI Switch Board. Inspected, in good condition. Pulled from a working cPCI system environment. Normal handling wear. RJ-45 ports and J2 connector appear intact. View photos; contact us with questions.
GNP PDSi 3U cPSB 8+1 Switch 1-503251 – two PCB modules and front panel bracket, top view GNP PDSi 3U cPSB 8+1 Switch 1-503251 Rev A – single module angled view showing Kendin K38999 controller chip and edge connector
Add to Cart
Quick view

GNP PDSi 3U cPSB 8+1 Switch Module 1-503251 Rev A cPCI Backplane Card

GNP

$35.00
Was: $70.00
GNP PDSi 3U cPSB 8+1 Switch Module 1-503251 Rev A cPCI Backplane CardA 3U CompactPCI switch module designed for cPSB (CompactPCI Switched Backplane) systems. This 8+1 configuration provides switching...
24414
SKU:
24414
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
GNP PDSi
Model:
1-503251
MPN:
1-503251
Secondary Model:
PCB# 1-503251 REV. A
Type:
3U CompactPCI cPSB 8+1 Switch Module
SKU:
24414
Form Factor:
3U CompactPCI (cPCI) Card/Module
Hardware Revision:
Rev A
Bus Interface:
CompactPCI (cPCI) / cPSB
Switch Configuration:
8+1
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Two PCBs and one front panel bracket visible in photos; qty may vary
Compatible With:
CompactPCI / cPSB 3U chassis systems
Condition Notes:
GNP PDSi 3U cPSB 8+1 Switch 1-503251 Rev A. Inspected and in good used condition. Boards appear clean with no visible damage. See photos for exact contents.

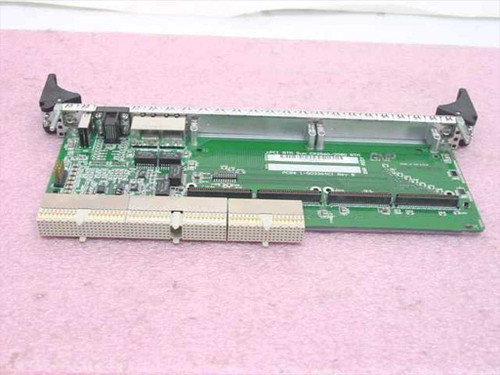

GNP 1-503364C1 PDSi cPCI Rear Transition Module – angled top view showing PCB, edge connectors, and front panel with dual RJ45 ports and ejector handles GNP 1-503364C1 cPCI RTM – rear/underside view showing J3/J4/J5 cPCI bus connectors and secondary PCB interconnect area
