GNP PDSi 3U cPSB 8+1 Switch RTM PCB 1-503284C1 Rev A 4-Port RJ-45 MGT

(No reviews yet) Write a Review
SKU:
24412
MPN:
1-503284C1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

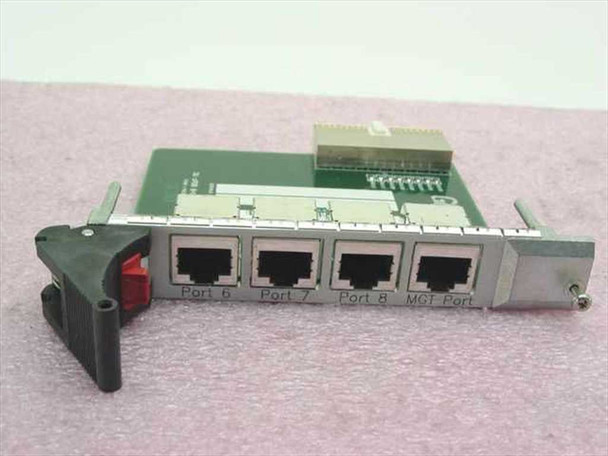

  • GNP PDSi 3U cPSB 8+1 Switch RTM 1-503284C1 front panel showing four RJ-45 ports labeled Port 6, Port 7, Port 8, and MGT Port

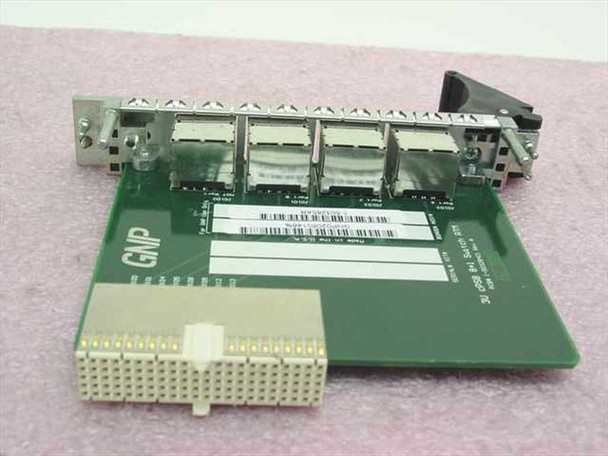

  • GNP PDSi 3U cPSB Switch RTM rear/top view showing SFP-style connector rows, GNP logo, PCB label, and backplane edge connector
  • GNP PDSi 3U cPSB 8+1 Switch RTM PCB label showing PCB# 1-503284C1 Rev A with serial and board number fields
$75.00
Was: $150.00
Current Stock: 13

Sold Out

Description

GNP PDSi 3U cPSB 8+1 Switch RTM PCB 1-503284C1 Rev A 4-Port RJ-45 MGT

This is a Rear Transition Module (RTM) designed for GNP PDSi 3U CompactPCI Switched Backplane systems. The RTM provides four RJ-45 Ethernet ports plus a dedicated management port for network connectivity in industrial and telecom applications.

Specifications & What's Included

  • Brand: GNP PDSi
  • Model: 1-503284C1 Rev A
  • Form Factor: 3U cPSB
  • Configuration: 8+1 Switch with 4 RJ-45 ports (Ports 6, 7, 8, MGT)
  • Interface: RJ-45 Ethernet + Management Port
  • Module only; no accessories included

Applications

RTM modules like this are used in CompactPCI switching systems for industrial networking, telecommunications infrastructure, and embedded systems requiring managed Ethernet connectivity. The unit mounts to the rear of 3U cPSB chassis and provides external network access. Compatible with GNP PDSi 3U cPSB 8+1 Switch chassis.

Condition: Used
This GNP PDSi 3U cPSB 8+1 Switch RTM (PCB# 1-503284C1 Rev A) has been inspected and is in good used condition. The board shows normal handling wear consistent with prior use in a system chassis. All four RJ-45 ports (Port 6, Port 7, Port 8, and MGT Port) appear intact with no visible damage to the connectors or the PCB. The backplane edge connector is present and appears undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
