GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card CompactPCI J1 J2 Bus

(No reviews yet) Write a Review
SKU:
24330
MPN:
1-503252CN
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

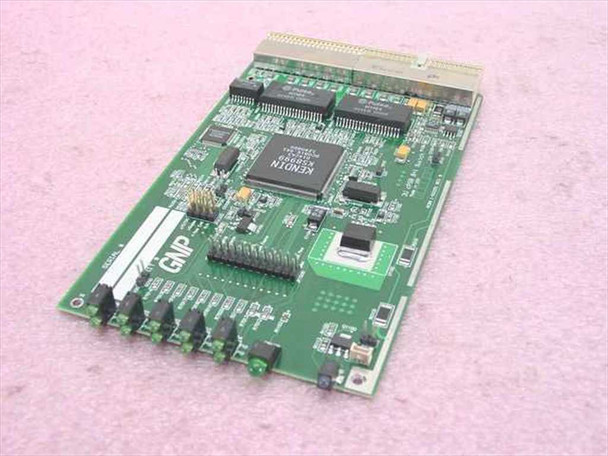

  • GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card – angled top view showing Kendin controller IC, memory chips, and J1/J2 CompactPCI edge connectors
  • GNP PDSi 1-503252CN CompactPCI Switch Card – side-angle view showing full board layout with Kendin IC, header pins, and cPCI edge connector detail
  • GNP PDSi 1-503252CN – PCB rear label view showing barcode, part number 1-503252CN, asset barcode COR021900640, and resistor network designators
$40.00
Was: $125.00
Current Stock: 2

Sold Out

Description

GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card CompactPCI J1 J2 Bus

A 3U CompactPCI bus switch card with 8+1 switching configuration. This card routes and manages data traffic across CompactPCI backplane connections using J1 and J2 bus connectors.

Specifications & What's Included

  • Brand: GNP PDSi
  • Model: 1-503252CN
  • Form Factor: 3U CompactPCI Card/Module
  • Bus Standard: CompactPCI (cPCI) / cPSB
  • Switch Configuration: 8+1
  • Connectors: J1 and J2 CompactPCI Bus Connectors
  • Main Controller: Kendin QFP IC
  • Manufactured in the United States
  • Card only; no additional accessories included

Applications

CompactPCI switch cards are used in telecom, industrial control, military, and embedded computing systems. This 8+1 configuration manages multiple slot connections within cPCI chassis, supporting data switching and routing across distributed modules. Typical applications include telecommunications infrastructure, signal processing platforms, and industrial automation equipment that use CompactPCI backplane architecture.

Condition: Used
This GNP PDSi 1-503252CN 3U CompactPCI cPSB 8+1 Switch Card has been inspected and appears to be in good used condition. The board is clean with no visible damage to the PCB, connectors, or components. The J1 and J2 edge connectors look intact with no bent or missing pins. It was pulled from a working environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP PDSi
Model:
1-503252CN
MPN:
1-503252CN
Type:
CompactPCI cPSB 8+1 Bus Switch Card
SKU:
24330
Bus Standard:
CompactPCI (cPCI) / cPSB
Form Factor:
3U CompactPCI Card/Module
Switch Configuration:
8+1
Connector Type:
J1 and J2 CompactPCI Bus Connectors
Main Controller Chip:
Kendin (large QFP IC, part number partially legible)
Condition:
Used – Inspected
Seller Notes:
Card only; no additional accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
GNP PDSi 1-503252CN 3U cPCI cPSB 8+1 Switch Card. Inspected, in good used condition. Board is clean; J1/J2 connectors intact. Pulled from a working environment.
View AllClose
