Description
GNP Computers Soft-Switch Control Board PCB 1-501146 Rev D SMTK98467124B
The GNP Computers Soft-Switch Control Board is a compact PCB designed to handle soft-switching control logic within GNP Computers systems. Marked Rev D with a date code of 970724, this board was manufactured in the USA and carries part number 1-501146. It interfaces via an RJ-style connector on one edge and an external wire harness connector, allowing it to connect to a host system or chassis backplane.
Specifications & What's Included
- Manufacturer: GNP Computers
- Board Description: Soft-Switch Control Board
- PCB Part Number: 1-501146
- Assembly / SKU Label: SMTK98467124B
- Secondary Reference: 1-501147FR
- Revision: Rev D
- Date Code: 970724
- Country of Manufacture: Made in the USA
- Connectors: RJ-style connector (front edge), multi-pin wire harness connector (attached)
- Main IC: Large DIP integrated circuit (markings not fully legible in photos)
- Additional components: through-hole resistors, capacitors, smaller ICs, status indicator LEDs
- Board only — wire harness connector attached as shown
Applications
GNP Computers was a US-based manufacturer of embedded computing and industrial control boards, primarily active in the 1980s and 1990s. Their products were used in industrial automation, VME and proprietary-bus embedded systems, and specialized OEM applications. A soft-switch control board of this type typically manages power sequencing, system reset logic, or mode-switching functions within a larger embedded or industrial computing platform. The Rev D date code of 970724 places this board in the mid-to-late 1990s era of GNP's product line. This board is suited for use as a spare or replacement in systems that originally used the 1-501146 assembly, or for engineers working on legacy GNP Computers platforms.

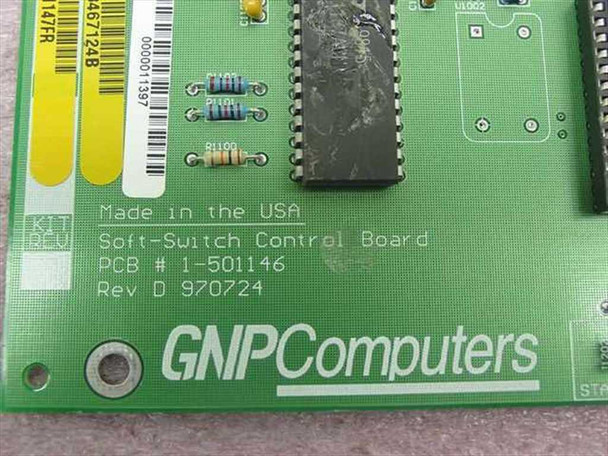

This GNP Computers Soft-Switch Control Board (PCB 1-501146, Rev D) has been inspected and is in good condition. The board is clean overall with no visible cracked traces, burned components, or physical damage noted. The DIP IC and through-hole components appear intact. A yellow asset label (SMTK98467124B / 1-501147FR) is affixed to the board as shown in the photos. The attached wire harness connector is present. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
GNP Computers |
Model: |
SMTK98467124B |
MPN: |
1-501146 |
Secondary Model: |
1-501147FR |
Type: |
Soft-Switch Control Board (PCB) |
SKU: |
24669 |
Revision: |
Rev D |
Date Code: |
970724 |
Country/Region of Manufacture: |
United States |
Form Factor: |
PCB / Card Module |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Board only; includes attached wire harness connector as shown in photos. |
Condition Notes: |
GNP Computers Soft-Switch Control Board 1-501146 Rev D inspected and in good condition. Board is clean, no visible damage. DIP IC and components intact. Wire harness connector present. |
