GNP Computers Soft-Switch Control Board PCB 1-501146 SMTK98467106B Rev D

(No reviews yet) Write a Review
SKU:
34470
MPN:
SMTK98467106B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • GNP Computers Soft-Switch Control Board PCB 1-501146 SMTK98467106B Rev D — top component side showing ICs, connectors, Status LED and Power LED labels
  • GNP Computers Soft-Switch Control Board close-up of PCB silkscreen showing PCB # 1-501146, Rev D, date code 970724, and Made in the USA marking

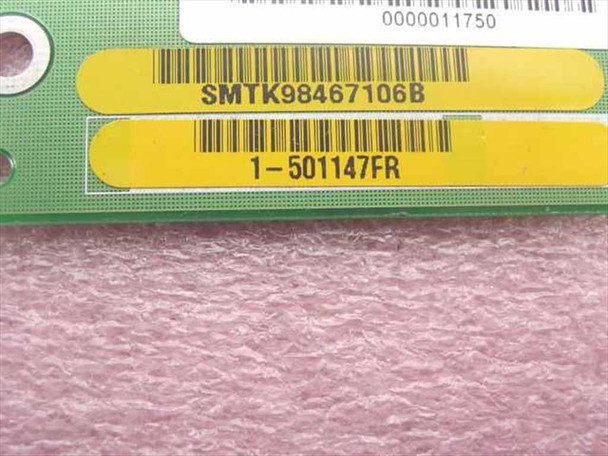

  • Close-up of yellow labels on GNP Computers control board showing SMTK98467106B and 1-501147FR part number barcodes
  • Close-up of 2-pin Molex-style power connector attached to GNP Computers Soft-Switch Control Board

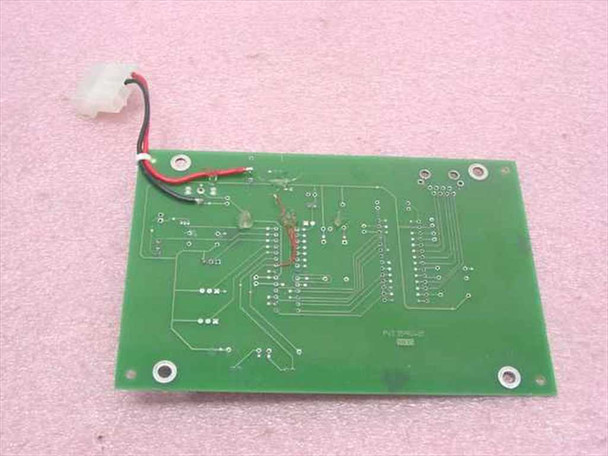

  • GNP Computers Soft-Switch Control Board PCB 1-501146 — solder side (bottom) view showing trace layout and mounting holes
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

GNP Computers Soft-Switch Control Board PCB 1-501146 SMTK98467106B Rev D

Used soft-switch control board PCB from GNP Computers. This board functioned as a control module for telecommunications and industrial switching systems, managing signal routing and system logic through its onboard circuitry.

Specifications & What's Included

  • Model: 1-501146 | MPN: SMTK98467106B
  • Secondary Model: 1-501147FR
  • Revision: Rev D | Date Code: 970724
  • Connector: Molex-style 2-pin power connector
  • Features: Status LED and Power LED indicators
  • Includes attached 2-pin Molex-style power harness
  • Manufactured in United States

Applications

Soft-switch control boards of this type were used in telecommunications switching systems, call routing equipment, and industrial control applications during the 1990s and early 2000s. These boards typically managed call processing, line switching, and system state logic. They were compatible with GNP Computers switching platforms and similar telecom infrastructure systems of that era.

Condition: Used
This GNP Computers Soft-Switch Control Board (PCB 1-501146, SMTK98467106B, Rev D) has been inspected and appears to be in good condition. The board shows normal handling wear consistent with prior use. The PCB traces, components, and solder joints look intact with no visible damage, burn marks, or missing components. The attached 2-pin Molex-style power harness is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
GNP Computers
Model:
1-501146
MPN:
SMTK98467106B
Secondary Model:
1-501147FR
Type:
Soft-Switch Control Board
PCB Number:
1-501146
Revision:
Rev D
Date Code:
970724
SKU:
34470
Condition:
Used – Inspected
Form Factor:
PCB / Card Module
Country/Region of Manufacture:
United States
Connector Type:
Molex-style 2-pin power connector
Features:
Status LED, Power LED indicators
Seller Notes:
Includes attached 2-pin Molex-style power harness
Condition Notes:
GNP Computers Soft-Switch Control Board 1-501146 SMTK98467106B Rev D. Inspected and in good condition. Normal handling wear; no visible damage, burn marks, or missing components. Power harness included.
