Festo

Festo IFB8-02 Bus Interface Unit w/ JMVH-5 D502 D702 MVH-5 Solenoid Valve Bank

(No reviews yet) Write a Review
SKU:
46457
MPN:
IFB8-02
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
36.00 LBS
Shipping:
Calculated at Checkout

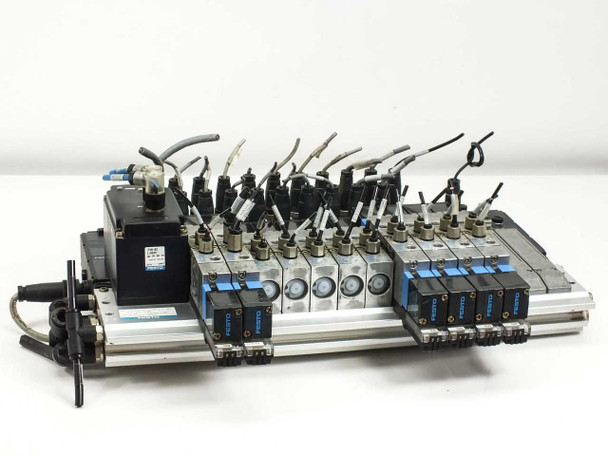

  • Festo IFB8-02 bus interface unit with full solenoid valve manifold assembly — angled front-left overview showing all valves and pneumatic fittings
  • Festo IFB8-02 solenoid valve bank — rear-right angled view showing I/O connectors along base rail and multi-conductor wiring harness
  • Festo IFB8-02 label close-up showing model IFB8-02, part number 116839, HW 25.06.92, SW 01.09.93; and IIFG-02-1/8-14-BU mounting plate label showing max 10 BAR / 145 PSI, Serie D202 55448, 24V DC
  • Festo IFB8-02 bus interface unit top close-up showing POWER and BUS indicator lights and two M12 circular bus connectors with blue-labeled cables
  • Close-up of MVH-5 D702 solenoid valve body row showing push-in pneumatic fittings, valve bodies, and D702 series markings
  • Two Festo JMVH-5 D702 solenoid valves side by side on manifold rail, showing blue valve bodies and 0.07 coil indicators
  • Row of four Festo JMVH-5 solenoid valves on manifold showing coil indicator windows labeled 0.15, 0.05, 0.03, and 0.07
  • Festo IFB8-02 interface unit side and pneumatic manifold port cluster close-up showing multiple push-in tube fittings and wiring connections
  • Underside/base of manifold assembly showing aluminum rail, manifold block outlet ports, and roller/guide track hardware
  • Base rail I/O connector panel close-up showing labeled M12 circular connectors for I:02 through I:13 and O:08 through O:12 channels with wiring leads
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

Festo IFB8-02 Bus Interface Unit w/ JMVH-5 D502 D702 MVH-5 Solenoid Valve Bank

Pneumatic solenoid valve manifold assembly with integrated fieldbus interface for industrial automation control. The IFB8-02 bus interface unit coordinates 11 solenoid valves across a rail-mounted manifold platform rated for 24V DC operation at up to 145 PSI (10 BAR).

Specifications & What's Included

  • Festo IFB8-02 Bus Interface Unit (HW 25.06.92, SW 01.09.93)
  • 11 Solenoid Valves: 4x JMVH-5 D502, 2x JMVH-5 D702, 5x MVH-5 D702
  • Mounting Plate IIFG-02-1/8-14-BU with D202/D502/D702 series compatibility
  • Port Size: 1/8 inch; Voltage: 24V DC; Max Pressure: 145 PSI
  • Fieldbus/Bus Interface for networked valve control

Applications

Used in factory automation, pneumatic control systems, and industrial valve terminal networks. Supports networked solenoid valve switching in manufacturing and process control environments. Compatible with Festo fieldbus integration platforms and legacy industrial pneumatic automation setups requiring centralized manifold control.

Condition: Used
This Festo IFB8-02 Bus Interface Unit and solenoid valve manifold assembly has been inspected and appears to be in good physical condition overall. We were unable to functionally test this assembly at our facility. The valve bodies, bus interface unit, and mounting plate are all present. The unit shows normal wear consistent with prior industrial use — some surface grime and minor scuffing on the manifold base rail and I/O connector panel are visible in the photos. All 11 solenoid valves are installed (four JMVH-5 D502, two JMVH-5 D702, and five MVH-5 D702). Multiple pneumatic push-in fittings and wiring leads are attached and appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Festo
Model:
IFB8-02
MPN:
116839
Type:
Pneumatic Solenoid Valve Manifold with Bus Interface
Secondary Model:
IIFG-02-1/8-14-BU
SKU:
46457
Seller Notes:
Includes IFB8-02 bus interface unit, mounting plate, and 11 solenoid valves (JMVH-5 D502 x4, JMVH-5 D702 x2, MVH-5 D702 x5)
Condition:
Used – Inspected, Unable to Test
Country/Region of Manufacture:
Germany
Voltage:
24V DC
Max Pressure (PSI):
145 PSI
Max Pressure (BAR):
10 BAR
Port Size:
1/8 inch
Valve Series:
D202 / D502 / D702
Interface Type:
Fieldbus / Bus Interface
Number of Solenoid Valves:
11
Solenoid Valve Model 1:
Festo JMVH-5 1/8 B-VI, PN 110512, D502 – Qty 4
Solenoid Valve Model 2:
Festo JMVH-5 1/8 B-VI, PN 110512, D702 – Qty 2
Solenoid Valve Model 3:
Festo MVH-5 1/8 B-VI, PN 114909, D702 – Qty 5
Mounting Plate Model:
IIFG-02-1/8-14-BU, TN 18 755
Serie (Mounting Plate):
D202 55448
Hardware Revision (IFB8-02):
HW 25.06.92, SW 01.09.93
Application:
Industrial pneumatic automation, valve terminal control
Form Factor:
Manifold / Rail-Mounted Assembly
Condition Notes:
Festo IFB8-02 Bus Interface Unit w/ solenoid valve manifold. Inspected, appears in good physical condition. Unable to functionally test. Normal industrial wear visible. All 11 valves present. Sold as-is.
