Festo 161415 S202 & 161414 RD02 5/2-Way Solenoid Valve Manifold Assembly

Festo 161415 S202 & 161414 RD02 5/2-Way Solenoid Valve Manifold Assembly

This is a complete Festo pneumatic solenoid valve manifold assembly built on a shared manifold base. The assembly combines one 161415 S202 double-solenoid 5/2-way piston spool valve with six 161414 RD02 single-solenoid 5/2-way piston spool valves, along with a blanking plate and left and right end plates. The manifold provides a compact, multi-station pneumatic control block for directing compressed air to actuators in automated machinery.

Specifications & What's Included

• Qty 1: Festo 161415 (161 415) — S202, 5/2-way double solenoid piston spool valve
• Qty 6: Festo 161414 (161 414) — RD02, 5/2-way single solenoid piston spool valve
• Qty 1: Festo 161368 (161 368) — R902 blanking plate
• Qty 1: Festo 161376 (161 376) — Left-hand end plate
• Qty 1: Festo 161379 (161 379) — Right-hand end plate
• Shared manifold base body with integrated porting

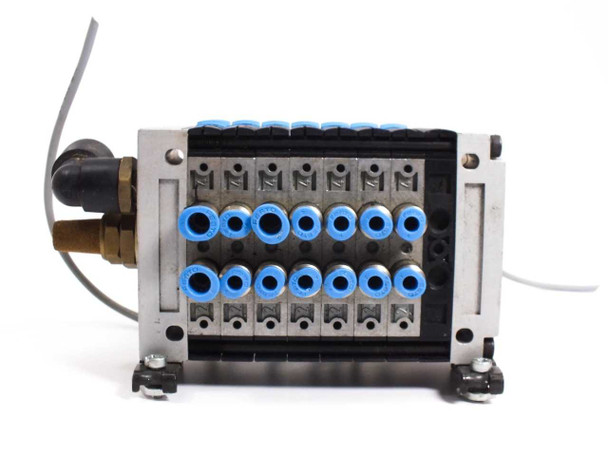

• Blue push-in pneumatic fittings on working ports (two rows, visible on front face)
• Brass exhaust/supply port fitting on left end plate
• Push-in pneumatic supply fitting on left end plate

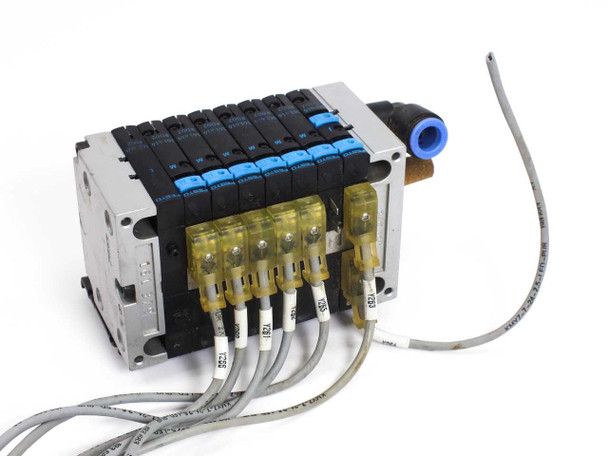

• Gray multi-conductor cable wiring harness with yellow terminal connectors attached
• Valve type: Piston spool, 5/2-way directional control
• Brand: Festo (Germany)

Applications

Festo 5/2-way piston spool solenoid valves are directional control valves used throughout pneumatic automation to switch the flow of compressed air to double-acting cylinders, grippers, rotary actuators, and other pneumatic devices. The 5/2-way designation means five ports and two positions — the valve directs supply air alternately to one of two actuator ports while exhausting the other. A double-solenoid valve (S202) holds its last position when de-energized, making it fail-safe in both directions; single-solenoid valves (RD02) spring-return to a default position when the solenoid is released. Manifold-mounted valve systems like this assembly are standard in automated production lines, robotic work cells, packaging machinery, assembly automation, and industrial pick-and-place equipment where multiple pneumatic axes need to be controlled from a single, compact valve station. Festo is one of the leading manufacturers of pneumatic automation components, and their Type 161 series valve/manifold systems are widely used in European and global factory automation. This manifold assembly dates from Festo's mid-to-late 1990s–2000s pneumatic series and remains compatible with current push-in tubing and standard sub-base pneumatic systems.
