SMC EX120-SSH1 Serial Interface Unit w/ Manifold 8x VQ1100-5 Solenoid Valves

(No reviews yet) Write a Review
SKU:
47879
MPN:
EX120-SSH1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • SMC EX120-SSH1 serial interface unit with 8x VQ1100-5 solenoid valves mounted on manifold — angled front-right view showing orange indicator flags and solenoid coil bodies

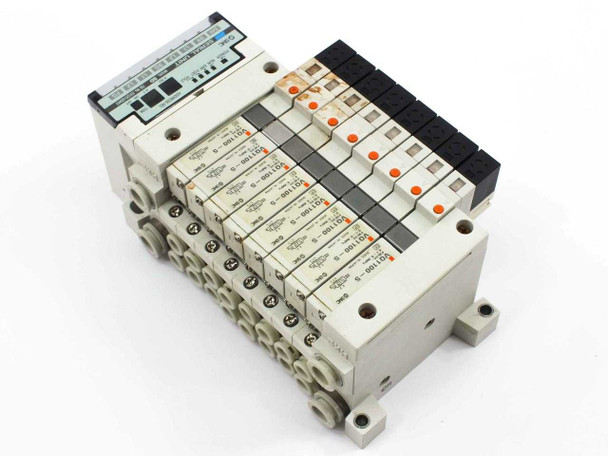

  • SMC EX120-SSH1 serial interface unit with VQ1100-5 solenoid valve manifold — angled front-left view showing EX120 controller module and full valve bank assembly
  • SMC EX120-SSH1 label closeup showing MODEL SD designation, SI No. EX120-SSH1, address rotary switches x10 and x1, ON/OFF switch, and terminal labels SG L1 L2 FG
  • SMC EX120-SSH1 solenoid valve manifold — front port face showing 16 pneumatic push-in fittings and EXH exhaust ports across the manifold base
  • SMC VQ1100-5 solenoid valve assembly — rear/bottom view showing 8 solenoid coil housings with visible oxidation and surface discoloration on valve body plates

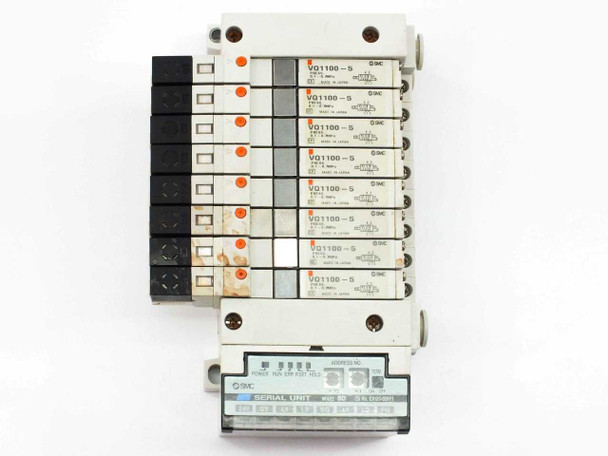

  • SMC EX120-SSH1 Serial Interface Unit with Manifold & 8 VQ1100-5 Solenoid Valves
  • SMC EX120-SSH1 Serial Interface Unit with Manifold & 8 VQ1100-5 Solenoid Valves
$150.00
Was: $300.00
Current Stock: 3

Sold Out

Description

SMC EX120-SSH1 Serial Interface Unit w/ Manifold 8x VQ1100-5 Solenoid Valves

Serial interface control unit for pneumatic solenoid valve manifolds. Manages eight VQ1100-5 solenoid valves via SD Mode serial communication for industrial automation applications.

Specifications & What's Included

  • Brand: SMC; Model: EX120-SSH1
  • 8x VQ1100-5 solenoid valves on integrated manifold
  • DIN rail / panel mount form factor
  • Serial interface (SD Mode) with address x10/x1 rotary switches
  • Terminal connections: SG, L1, L2, FG
  • Manufactured in Japan

Applications

Pneumatic solenoid valve control and switching in industrial automation systems compatible with SMC EX120 Series serial interface equipment.

Condition: Used
This SMC EX120-SSH1 Serial Interface Unit with VQ1100-5 solenoid valve manifold has been visually inspected. The unit shows moderate surface oxidation and discoloration on the valve body plates visible in the photos — please review the images carefully. It has not been powered up or bench-tested at our facility. Please view our photo set and contact us with any questions before purchasing. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
EX120-SSH1
Secondary Model:
VQ1100-5
MPN:
EX120-SSH1
SKU:
47879
Condition:
Used – Inspected
Seller Notes:
Includes EX120-SSH1 serial interface unit, manifold, and 8x VQ1100-5 solenoid valves
Form Factor:
DIN Rail / Panel Mount
Number of Valves:
8
Valve Model:
VQ1100-5
Interface Type:
Serial (SD Mode)
Serial Interface Number:
EX120-SSH1
Terminal Connections:
SG, L1, L2, FG
Address Setting:
x10 / x1 rotary switches
Application:
Pneumatic solenoid valve control, industrial automation
Compatible With:
SMC EX120 Series Serial Interface Systems
Country of Manufacture:
Japan
Condition Notes:
This SMC EX120-SSH1 Serial Interface Unit with VQ1100-5 solenoid valve manifold has been visually inspected. The unit shows moderate surface oxidation and discoloration on the valve body plates visible in the photos — please review the images
View AllClose

Related Products

Related Products

SMC EX120-SSH1 serial interface unit with 8-station VQ1200-5 solenoid valve manifold – angled front-left view showing indicator LEDs and valve bodies SMC EX120-SSH1 serial interface unit and VQ1200-5 valve manifold assembly – angled rear-right view showing full assembly profile and DIN rail mount
Add to Cart
Quick view

SMC EX120-SSH1 Serial Interface Unit Manifold 8x VQ1200-5 Solenoid Valve Bank

SMC

$90.00
Was: $250.00
SMC EX120-SSH1 Serial Interface Unit Manifold 8x VQ1200-5 Solenoid Valve Bank Serial interface unit and manifold block assembly with eight integrated VQ1200-5 solenoid valves. Controls pneumatic...
47878
SKU:
47878
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
SMC
Model:
EX120-SSH1
Secondary Model:
VQ1200-5
MPN:
EX120-SSH1
SKU:
47878
Condition:
Used – Inspected
Seller Notes:
Includes EX120-SSH1 serial interface unit, manifold, and 8x VQ1200-5 solenoid valves
Form Factor:
DIN Rail / Manifold Block Assembly
Number of Valve Stations:
8
Interface Type:
Serial (SD Bus)
Valve Model:
VQ1200-5
Series:
EX120 Series
Address Configuration:
Rotary switch (x10 / x1), Terminal ON/OFF
Connections:
SG, L1, L2, FG terminal block
Compatible With:
SMC VQ1000/VQ1200 Series Valve Manifolds
Application:
Pneumatic automation, valve control via serial fieldbus
Country of Manufacture:
Japan
Condition Notes:
This SMC EX120-SSH1 Serial Interface Unit with VQ1200-5 solenoid valve manifold has been inspected and shows moderate surface soiling and rust staining consistent with industrial service use — visible on the manifold housing and interface unit

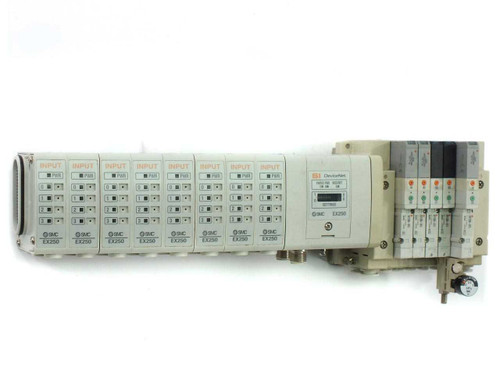

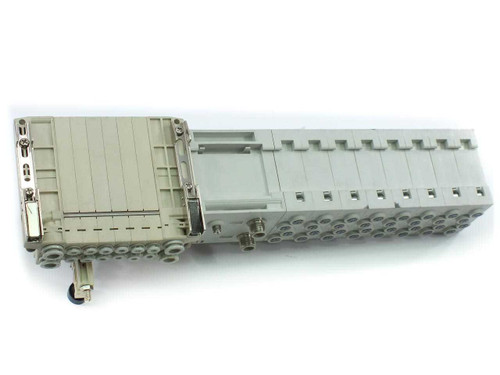

SMC EX250-SDN1 DeviceNet serial interface unit with 8 EX250-IE3 input modules and SS5V1 manifold assembly — full front view SMC SS5V1 manifold base with SV1200-5FU solenoid valves — bottom and rear view showing pneumatic port array
