Description
SMC EX250-SDN1 DeviceNet Serial Interface 8 EX250-IE3 Input Units SS5V1 Manifold
DeviceNet serial interface unit with 8 input modules and integrated manifold assembly. Provides digital input handling and valve control in industrial automation systems using DeviceNet protocol communication.
Specifications & What's Included
- EX250-SDN1 serial interface unit with 24 VDC, 100 mA operation
- 8x EX250-IE3 input units (4 points each, 120 mA per unit)
- SS5V1 manifold with SV1200-5FU valves (0.1–0.7 MPa pressure range)
- 32-point input and output capacity
- IP67 enclosure rating on SI unit; DIN rail modular assembly
- M8/M12 sensor connectors
Applications
This interface unit manages discrete input signals in industrial control networks running DeviceNet, PROFIBUS DP, CC-Link, AS-i, CANopen, or EtherNet/IP. Commonly deployed in manufacturing, process automation, and machine control systems where multiple input points require centralized communication and valve actuation. Compatible with SMC VQC and SV valve series for pneumatic and hydraulic control.
Condition: Used

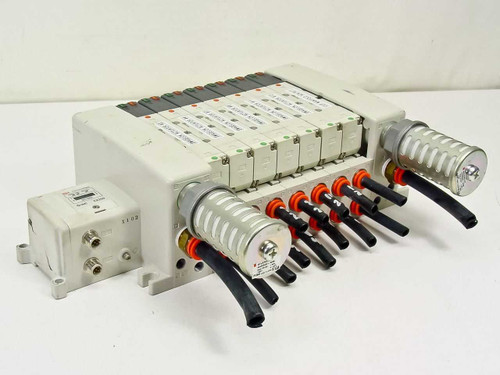

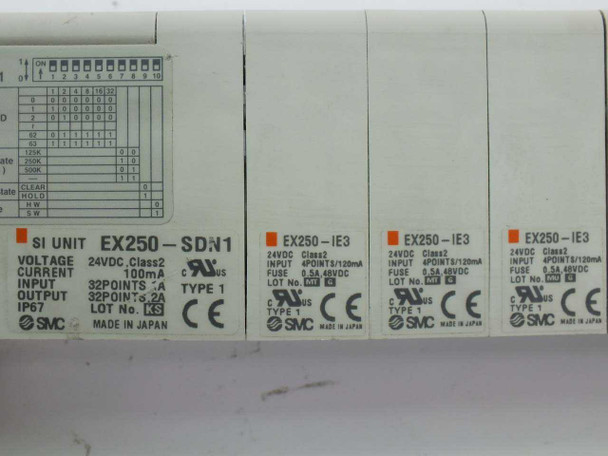

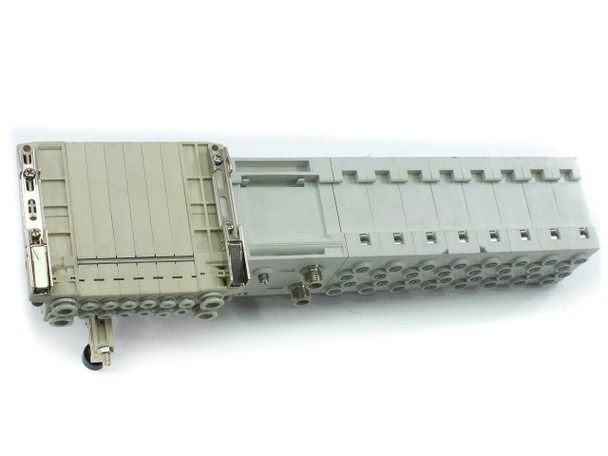

This SMC EX250-SDN1 DeviceNet Serial Interface assembly — including the SI unit, 8 EX250-IE3 input modules, and SS5V1 manifold with SV1200-5FU solenoid valves — has been inspected and is in good used condition. The assembly was pulled from a working environment where it was actively in use. Labels on the units are clean and legible, the modules appear intact with no visible damage, and the manifold and valve bodies show normal wear consistent with industrial service. Please view our photo set and contact us if you have any questions.
This SMC EX250-SDN1 DeviceNet Serial Interface assembly — including the SI unit, 8 EX250-IE3 input modules, and SS5V1 manifold with SV1200-5FU solenoid valves — has been inspected and is in good used condition. The assembly was pulled from a working environment where it was actively in use. Labels on the units are clean and legible, the modules appear intact with no visible damage, and the manifold and valve bodies show normal wear consistent with industrial service. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
SMC |
Model: |
EX250-SDN1 |
MPN: |
EX250-SDN1 |
Secondary Model: |
EX250-IE3 |
Type: |
DeviceNet Serial Interface Unit with Input Modules |
SKU: |
51966 |
Seller Notes: |
Includes EX250-SDN1 SI unit, 8x EX250-IE3 input units, SS5V1 manifold with SV1200-5FU valves |
Country/Region of Manufacture: |
Japan |
Communication Protocol: |
DeviceNet |
Compatible Protocols: |
DeviceNet, PROFIBUS DP, CC-Link, AS-i, CANopen, EtherNet/IP |
Compatible Valves 1: |
VQC1000, VQC2000, VQC4000 |
Compatible Valves 2: |
SV1000, SV2000, SV3000, S0700 |
Max Inputs: |
32 |
Max Outputs: |
32 |
Number of Input Units: |
8 |
Input Unit Model: |
EX250-IE3 |
Manifold Model: |
SS5V1 |
Valve Model: |
SV1200-5FU |
Valve Pressure Range: |
0.1 - 0.7 MPa |
SI Unit Voltage: |
24 VDC, Class 2 |
SI Unit Current: |
100 mA |
Input Rating: |
32 Points, Type A |
Output Rating: |
32 Points, 2A |
Input Unit Voltage: |
24 VDC, Class 2 |
Input Unit Points: |
4 Points / 120 mA |
Input Unit Fuse: |
0.5A, 48 VDC |
Sensor Connector: |
M8 / M12 |
Enclosure Rating: |
IP67 (SI unit); IP40 for ControlNet-compatible SI unit |
Form Factor: |
DIN Rail / Modular Assembly |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
SMC EX250-SDN1 serial interface with 8 EX250-IE3 input units and SS5V1 manifold. Pulled from a working environment, inspected, and in good used condition. Normal wear from industrial use. |
