SMC EX250-SDN1 DeviceNet SI Air Valve Manifold 24VDC 9-Station PLC Controlled

(No reviews yet) Write a Review
SKU:
44071
MPN:
EX250-SDN1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Shipping:
Calculated at Checkout
  • SMC EX250-SDN1 DeviceNet valve manifold full assembly — front-left view showing 9 solenoid valve stations, NAN500-N06 silencers, and M12 fieldbus junction box

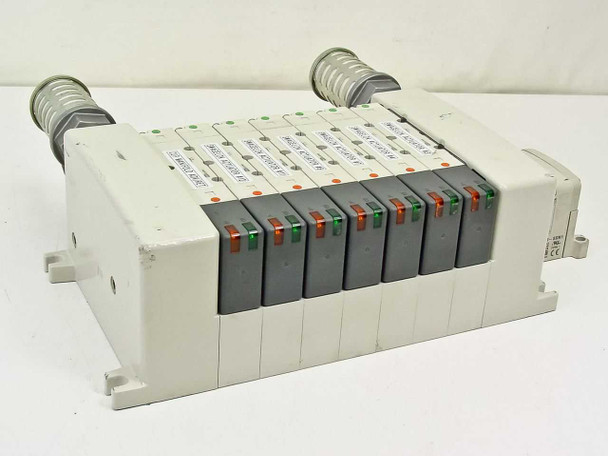

  • SMC EX250-SDN1 valve manifold — front view showing 9 individual solenoid valve modules with red and green LED indicators on manifold rail
  • SMC EX250 SI DeviceNet controller face — close-up of PWR(V), PWR, MOD/NET status LEDs and DIP switch settings block
  • SMC EX250-SDN1 manifold side panel — close-up showing X102 label, M12 BUS connector with mating cable, and lower M12 connector with blue cable
  • SMC EX250-SDN1 cracked plastic housing — close-up showing significant crack running across the bottom/side enclosure panel
  • SMC NAN500-N06 silencer label close-up — showing model number, max pressure 1 MPa, temperature range 5–60°C, Made in Japan markings
  • SMC EX250-SDN1 M12 connector panel — close-up of X102 side showing labeled BUS and PWR M12 male connectors and ground terminal

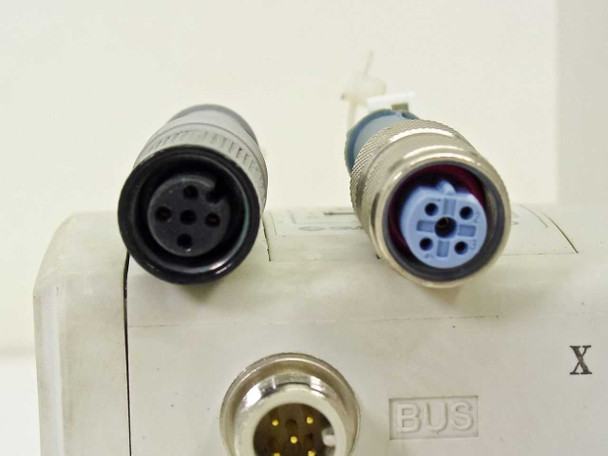

  • SMC EX250-SDN1 DeviceNet manifold — close-up of M12 female BUS connectors showing 5-pin configuration with mating connectors attached
  • SMC EX250-SDN1 pneumatic valve manifold — bottom view showing 9 sets of orange push-in pneumatic tube fittings across all stations
  • SMC EX250-SDN1 DeviceNet valve manifold — rear three-quarter view showing full 9-station assembly with NAN500-N06 silencers on both ends

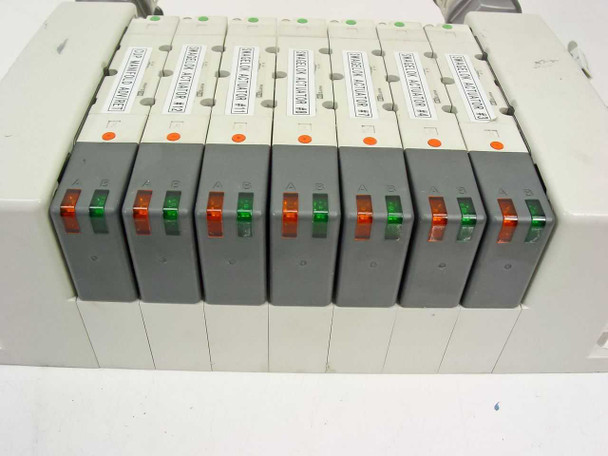

  • SMC EX250-SDN1 SI DeviceNet PLC Air Valve Manifold - Crack in Plastic

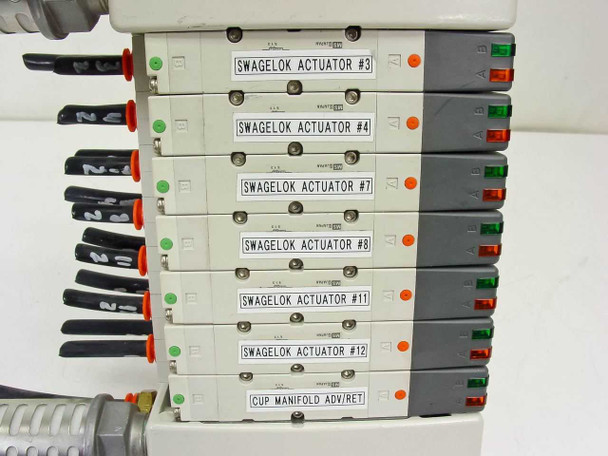

  • SMC EX250-SDN1 SI DeviceNet PLC Air Valve Manifold - Crack in Plastic
  • SMC EX250-SDN1 SI DeviceNet PLC Air Valve Manifold - Crack in Plastic
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

SMC EX250-SDN1 DeviceNet SI Air Valve Manifold 24VDC 9-Station PLC Controlled

The SMC EX250-SDN1 is a DeviceNet SI series fieldbus valve manifold designed for PLC-controlled pneumatic automation systems. It integrates a DeviceNet communications node directly into a multi-station solenoid valve bank, allowing a single network connection to control multiple pneumatic actuators — reducing wiring and centralizing control in automated industrial processes. This unit carries 9 valve stations mounted on a common manifold rail, with NAN500-N06 exhaust silencers at both ends and M12 circular connectors for the DeviceNet BUS and power (PWR) connections.

Specifications & What's Included

  • Model: SMC EX250-SDN1
  • Series: EX250 SI (Serial Interface) — DeviceNet protocol
  • Supply Voltage: 24VDC, Class 2
  • Current Draw: 100mA
  • Number of Valve Stations: 9
  • Fieldbus Interface: DeviceNet (M12 5-pin BUS connector)
  • Power Connector: M12 5-pin PWR connector
  • Status Indicators: PWR(V), PWR, MOD/NET LEDs on controller face
  • DIP switch node/address settings block on controller face
  • Exhaust Silencers: SMC NAN500-N06 (max pressure 1 MPa, temp range 5–60°C) — 2 included, one each end
  • Pneumatic fittings: Orange push-in tube fittings across all 9 stations (bottom ports)
  • Country of Manufacture: Japan
  • Notable defect: Significant crack in plastic side/bottom housing panel — clearly visible in photos

Applications

The SMC EX250 series DeviceNet valve manifolds are used in industrial factory automation where multiple pneumatic cylinders or actuators need to be controlled via a PLC over a DeviceNet fieldbus network. Common applications include robotic end-of-arm tooling, assembly line clamping and part-transfer systems, semiconductor handling equipment, automotive manufacturing jigs, and packaging machinery. DeviceNet, introduced in the early 1990s by Allen-Bradley (Rockwell Automation) and widely adopted through the 2000s and beyond, allows the manifold to receive valve open/close commands directly over the network, eliminating individual point-to-point wiring to each solenoid. The EX250-SDN1 specifically targets systems built around Allen-Bradley or other DeviceNet-compatible PLCs. These manifolds remain in active use in many installed industrial automation systems worldwide, and are a common replacement or spare part for production lines using DeviceNet fieldbus architecture.

Condition: Used
This SMC EX250-SDN1 DeviceNet SI Air Valve Manifold was pulled from a working industrial environment where it was in active use. The manifold assembly is intact and complete with all 9 valve stations, NAN500-N06 silencers on both ends, and M12 BUS and PWR connectors. The notable cosmetic issue is a significant crack in the plastic housing on one side panel — clearly visible in our photos. All valve solenoids and indicators appear physically intact. The crack is a cosmetic/structural defect in the enclosure only; it was in use and functional at time of removal. Please review our full photo set carefully before purchasing and contact us with any questions.
