SMC EX120-SSH1 Serial Interface Unit Manifold 8x VQ1200-5 Solenoid Valve Bank

(No reviews yet) Write a Review
SKU:
47878
MPN:
EX120-SSH1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

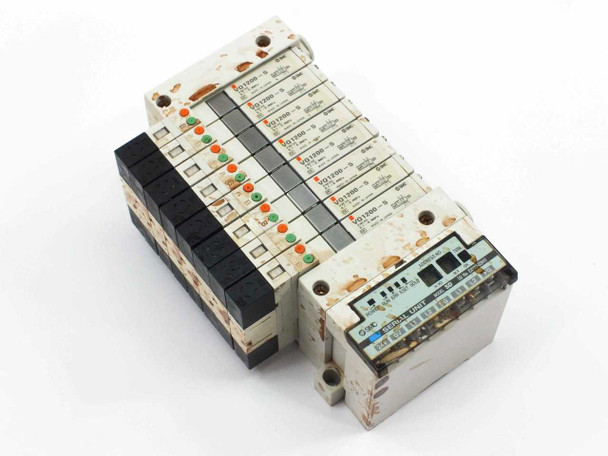

  • SMC EX120-SSH1 serial interface unit with 8-station VQ1200-5 solenoid valve manifold – angled front-left view showing indicator LEDs and valve bodies
  • SMC EX120-SSH1 serial interface unit and VQ1200-5 valve manifold assembly – angled rear-right view showing full assembly profile and DIN rail mount
  • SMC EX120-SSH1 label closeup showing Model SD, SI No. EX120-SSH1, address rotary switches x10 and x1, TERM ON/OFF switch, and SG L1 L2 FG terminal labels
  • SMC VQ1200-5 solenoid valve manifold front face – eight valve stations with red and green indicator LEDs, solenoid coil connectors, and serial unit at bottom
  • SMC EX120-SSH1 valve manifold assembly – bottom/port view showing 16 pneumatic push-in fittings ports across the manifold base and two EXH exhaust ports
  • SMC EX120-SSH1 Serial Interface Unit with Manifold & 8 VQ1200-5 Solenoid Valves
  • SMC EX120-SSH1 Serial Interface Unit with Manifold & 8 VQ1200-5 Solenoid Valves
$90.00
Was: $250.00
Current Stock: 5

Sold Out

Description

SMC EX120-SSH1 Serial Interface Unit Manifold 8x VQ1200-5 Solenoid Valve Bank

Serial interface unit and manifold block assembly with eight integrated VQ1200-5 solenoid valves. Controls pneumatic valve banks via SD Bus serial fieldbus communication.

Specifications & What's Included

  • Brand: SMC | Model: EX120-SSH1 | MPN: EX120-SSH1
  • Eight VQ1200-5 solenoid valve stations on single manifold
  • Serial interface: SD Bus fieldbus protocol
  • Address configuration: Rotary switch (x10/x1) with terminal ON/OFF
  • Terminal block connections: SG, L1, L2, FG
  • DIN rail/manifold block form factor
  • Made in Japan

Applications

Pneumatic automation systems and industrial valve control via serial fieldbus networks.

Condition: Used
This SMC EX120-SSH1 Serial Interface Unit with VQ1200-5 solenoid valve manifold has been inspected and shows moderate surface soiling and rust staining consistent with industrial service use — visible on the manifold housing and interface unit faceplate. The valve bodies and terminal connections appear intact. Not powered up or bench-tested at our facility. Please view our photo set and contact us with any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
EX120-SSH1
Secondary Model:
VQ1200-5
MPN:
EX120-SSH1
SKU:
47878
Condition:
Used – Inspected
Seller Notes:
Includes EX120-SSH1 serial interface unit, manifold, and 8x VQ1200-5 solenoid valves
Form Factor:
DIN Rail / Manifold Block Assembly
Number of Valve Stations:
8
Interface Type:
Serial (SD Bus)
Valve Model:
VQ1200-5
Series:
EX120 Series
Address Configuration:
Rotary switch (x10 / x1), Terminal ON/OFF
Connections:
SG, L1, L2, FG terminal block
Compatible With:
SMC VQ1000/VQ1200 Series Valve Manifolds
Application:
Pneumatic automation, valve control via serial fieldbus
Country of Manufacture:
Japan
Condition Notes:
This SMC EX120-SSH1 Serial Interface Unit with VQ1200-5 solenoid valve manifold has been inspected and shows moderate surface soiling and rust staining consistent with industrial service use — visible on the manifold housing and interface unit
