Crimson Tech

Crimson Tech CVS-3/W Coax Converter RGB BNC MULTI SYNC DB9 Video Signal

(No reviews yet) Write a Review
SKU:
26313
MPN:
CVS-3/W
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

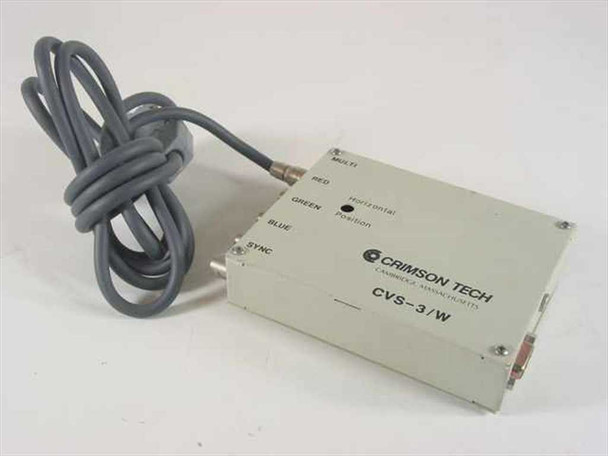

  • Crimson Tech CVS-3/W Coax Converter – front and top view showing BNC output labels and attached cable

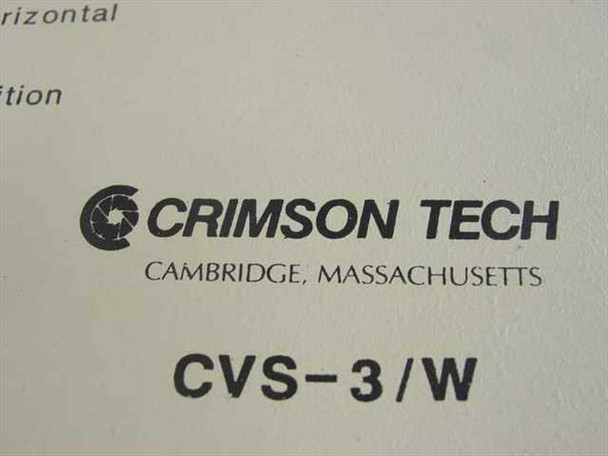

  • Crimson Tech CVS-3/W label closeup showing brand name and model number, Cambridge Massachusetts
  • Crimson Tech CVS-3/W rear panel showing DB9 female input connector and 3.5mm jack

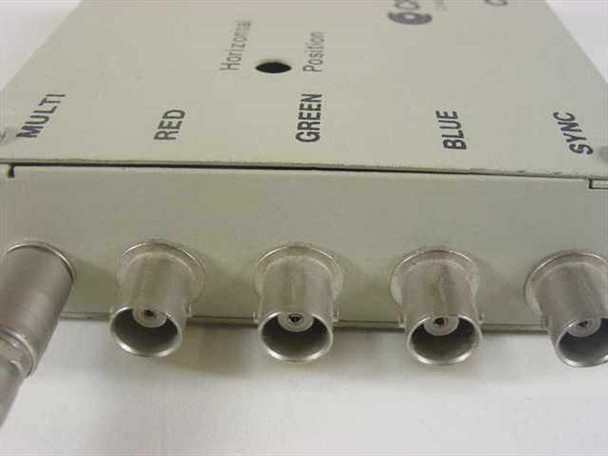

  • Crimson Tech CVS-3/W side panel showing five BNC output connectors labeled MULTI RED GREEN BLUE SYNC
  • Crimson Tech CVS-3/W attached cable end showing DB25 female 25-pin connector
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Crimson Tech CVS-3/W Coax Converter RGB BNC MULTI SYNC DB9 Video Signal

Coaxial video converter that converts RGB analog video signals with sync from DB9 input to five separate BNC coaxial outputs. Designed for routing and distributing component video signals across industrial and broadcast equipment.

Specifications & What's Included

  • Model: CVS-3/W (Made in USA)
  • Input: DB9 (9-pin female)
  • Outputs: 5x BNC connectors (MULTI, RED, GREEN, BLUE, SYNC)
  • Signal Type: RGB Analog with Sync
  • Form Factor: External desktop/handheld unit
  • Includes attached DB25 (25-pin female) cable

Applications

RGB to BNC converters were commonly used in professional video systems, telecom installations, and industrial control environments to interface legacy RGB sources with equipment requiring individual coaxial video channels. These converters supported both broadcast and closed-circuit video applications where component video separation was necessary for signal distribution or processing across multiple devices.

Condition: Used
This Crimson Tech CVS-3/W Coax Converter has been inspected and is in good used condition. The enclosure shows light surface wear consistent with normal use. All five BNC output connectors (MULTI, RED, GREEN, BLUE, SYNC) appear intact, and the DB9 input connector and attached DB25 cable are present and look good. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Crimson Tech
Model:
CVS-3/W
MPN:
CVS-3/W
Type:
Coaxial Video Converter
SKU:
26313
Condition:
Used – Inspected
Country/Region of Manufacture:
United States
Form Factor:
External Desktop / Handheld Unit
Input Connector:
DB9 (9-pin female)
Output Connectors:
5x BNC (MULTI, RED, GREEN, BLUE, SYNC)
Cable Included:
Attached DB25 (25-pin female) cable
Video Signal:
RGB Analog with Sync
Channels:
MULTI, RED, GREEN, BLUE, SYNC
Seller Notes:
Includes attached DB25 cable. Inspected and in good condition.
Condition Notes:
Crimson Tech CVS-3/W Coax Converter inspected and in good used condition. Light surface wear. All BNC outputs and DB9 connector intact. DB25 cable attached and present.
View AllClose

Related Products

Related Products

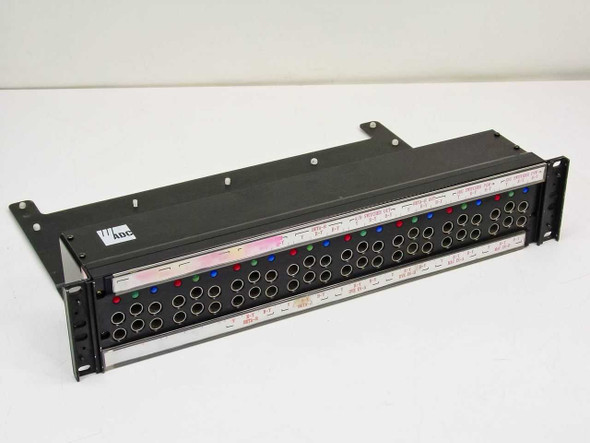

ADC CV-8-N RGB component video patch bay front view showing color-coded indicator lights and front-panel BNC jacks in 19-inch rackmount chassis ADC CV-8-N patch bay rear view showing rows of color-coded BNC coaxial connectors (blue, red, green, orange) on the rear panel
Add to Cart
Quick view

ADC CV-8-N RGB Component Video Patch Bay 19" Rackmount BNC Coax Broadcast

ADC

$40.00
Was: $80.00
ADC CV-8-N RGB Component Video Patch Bay 19" Rackmount BNC Coax Broadcast19" rackmount RGB component video patch bay with BNC coaxial connectors. Routes and switches Y, R-Y, and B-Y component video...
38876
SKU:
38876
Availability:
Usually ships within 1–2 business days.
Weight:
17.00 LBS
Brand:
ADC
Model:
CV-8-N
MPN:
CV-8-N
Secondary Model:
4-26792-0350
SKU:
38876
Type:
RGB Component Video Patch Bay
Connector Type:
BNC (Coaxial)
Signal Format:
RGB Component (Y, R-Y, B-Y)
Form Factor:
19" Rackmount
Compatible Sources:
A/B Switcher, Beta-B, DVE In-A, DVE In-B
Country/Region of Manufacture:
United States
Date Code:
970314 (March 1997)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from a working broadcast facility. BNC rear connectors, color-coded.
Condition Notes:
ADC CV-8-N RGB component video patch bay. Inspected and in good used condition. Pulled from a working broadcast environment. BNC rear connectors appear intact. Normal cosmetic wear.

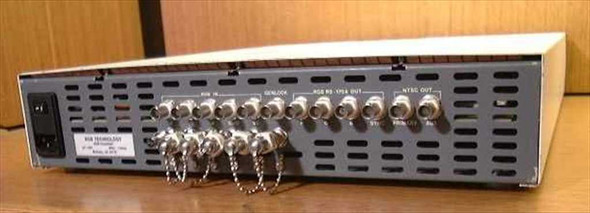

RGB Technology VideoLink 1400 SUN NTSC Converter — front panel showing power switch, Aspect Ratio, Freeze Frame, Filter, and Video Out controls with color bar indicator RGB Technology VideoLink 1400 SUN NTSC Converter — rear panel showing BNC connectors for RGB In, Genlock, RGB RS/CGA Out, NTSC Out, and S-VHS output with dust caps installed
Add to Cart
Quick view

RGB Technology VideoLink 1400 SUN NTSC Converter BNC RGB Sync NTSC Out

RGB Tech

$75.00
Was: $150.00
RGB Technology VideoLink 1400 SUN NTSC Converter BNC RGB Sync NTSC Out The RGB Technology VideoLink 1400 is a desktop video scan converter designed to take RGB video signals from SUN workstations...
10053
SKU:
10053
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Brand:
RGB Technology
Model:
VideoLink 1400
MPN:
VideoLink 1400
Type:
RGB to NTSC Video Scan Converter
SKU:
10053
Condition:
Used – Inspected
Form Factor:
Desktop / Benchtop
Input Signal:
RGB with Sync (BNC)
Output Signal:
NTSC, RGB/CGA Out (BNC)
Connector Type:
BNC
Compatible With:
SUN Workstations
Features:
Internal Color Bar Generator
Front Panel Controls:
Aspect Ratio, Freeze Frame, Filter, Video Out
Rear Panel:
RGB In, Genlock, RGB RS/CGA Out, NTSC Out, S-VHS
Seller Notes:
Unit only — no accessories included
Country/Region of Manufacture:
United States
Condition Notes:
RGB Technology VideoLink 1400 SUN NTSC Converter. Inspected, good used condition with light cosmetic wear. Rear BNC connectors intact, dust caps present. Not bench-tested at our facility. View photos and contact us with questions.

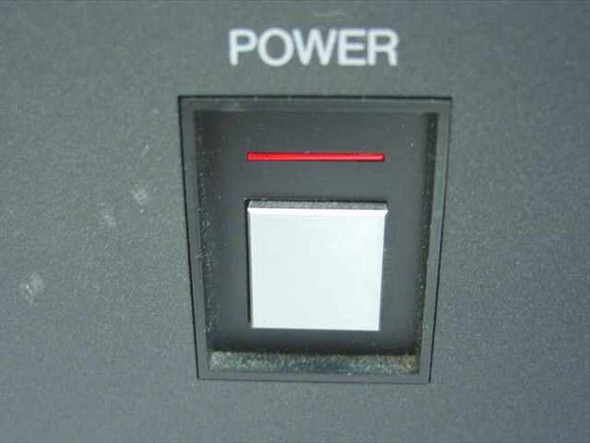

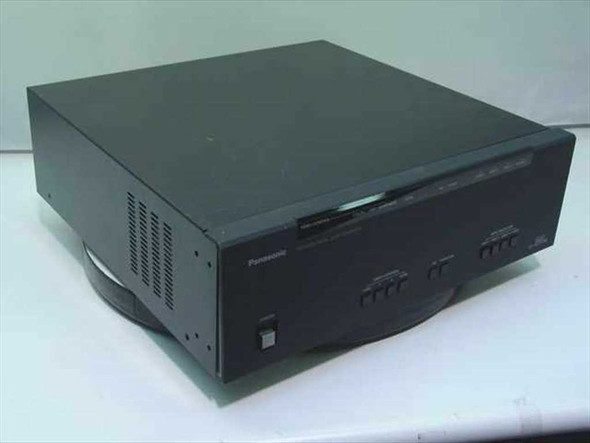

Panasonic ET-100DS Advanced Digital Scan Converter – front left three-quarter view showing dark desktop chassis Panasonic ET-100DS scan converter – close-up of front panel power button with red indicator strip
