ADC

ADC CV-8-N RGB Component Video Patch Bay 19" Rackmount BNC Coax Broadcast

(No reviews yet) Write a Review
SKU:
38876
MPN:
CV-8-N
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • ADC CV-8-N RGB component video patch bay front view showing color-coded indicator lights and front-panel BNC jacks in 19-inch rackmount chassis
  • ADC CV-8-N patch bay rear view showing rows of color-coded BNC coaxial connectors (blue, red, green, orange) on the rear panel

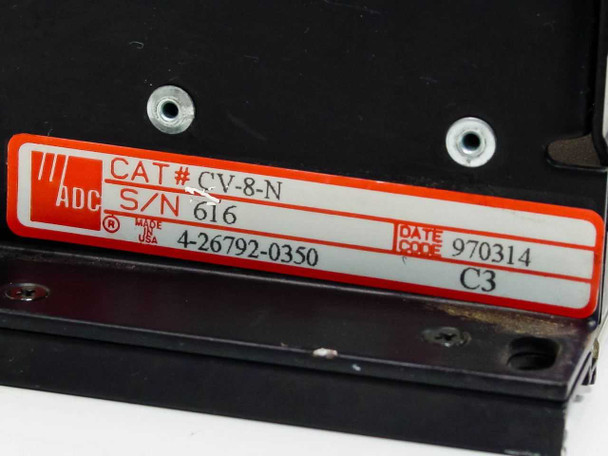

  • ADC CV-8-N label showing CAT# CV-8-N, S/N 616, part number 4-26792-0350, date code 970314, made in USA
  • ADC CV-8-N front panel close-up showing signal path labels including A/B Switcher Out, Beta-B Out, DVE In-A, DVE In-B with Y, R-Y, B-Y channel designations and LED indicators

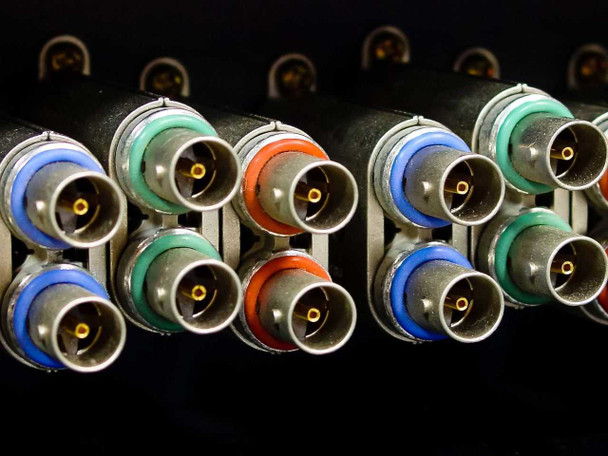

  • ADC CV-8-N rear BNC connector detail showing color-coded connectors — blue, green, red, and orange — for RGB component video signal routing
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

ADC CV-8-N RGB Component Video Patch Bay 19" Rackmount BNC Coax Broadcast

19" rackmount RGB component video patch bay with BNC coaxial connectors. Routes and switches Y, R-Y, and B-Y component video signals in broadcast and professional video environments.

Specifications & What's Included

  • Brand: ADC | Model: CV-8-N (MPN: CV-8-N)
  • Type: RGB Component Video Patch Bay
  • Connectors: BNC (coaxial), color-coded rear panel
  • Signal Format: RGB Component (Y, R-Y, B-Y)
  • Form Factor: 19" rackmount
  • Compatible with A/B Switcher, Beta-B, DVE In-A, DVE In-B sources
  • Manufactured: United States, March 1997

Applications

Component video patch bays were standard in broadcast facilities for routing high-quality RGB video signals between switchers, DVE units, and monitoring equipment. The CV-8-N handles professional component video workflows where signal integrity and clean switching were required. Commonly used in post-production suites, broadcast control rooms, and video routing systems during the 1990s-2000s era.

Condition: Used
This ADC CV-8-N RGB Component Video Patch Bay has been inspected and is in good used condition. It was pulled from a working broadcast environment where it was actively in use. The chassis and front panel show normal wear consistent with rack-mounted broadcast use. The rear BNC connectors are color-coded and appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ADC
Model:
CV-8-N
MPN:
CV-8-N
Secondary Model:
4-26792-0350
SKU:
38876
Type:
RGB Component Video Patch Bay
Connector Type:
BNC (Coaxial)
Signal Format:
RGB Component (Y, R-Y, B-Y)
Form Factor:
19" Rackmount
Compatible Sources:
A/B Switcher, Beta-B, DVE In-A, DVE In-B
Country/Region of Manufacture:
United States
Date Code:
970314 (March 1997)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from a working broadcast facility. BNC rear connectors, color-coded.
Condition Notes:
ADC CV-8-N RGB component video patch bay. Inspected and in good used condition. Pulled from a working broadcast environment. BNC rear connectors appear intact. Normal cosmetic wear.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
