ADC BJF307-4MKIIHN Broadcast Audio Patch Bay 1U Rackmount TT Bantam Jack

(No reviews yet) Write a Review
SKU:
39658
MPN:
BJF307-4MKIIHN
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
8.00 LBS
Shipping:
Calculated at Checkout

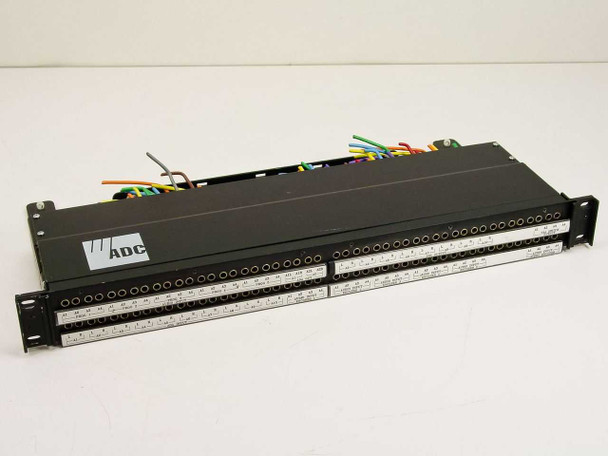

  • ADC BJF307-4MKIIHN 1U rackmount broadcast audio patch bay – front panel with TT bantam jacks and labeled port strips

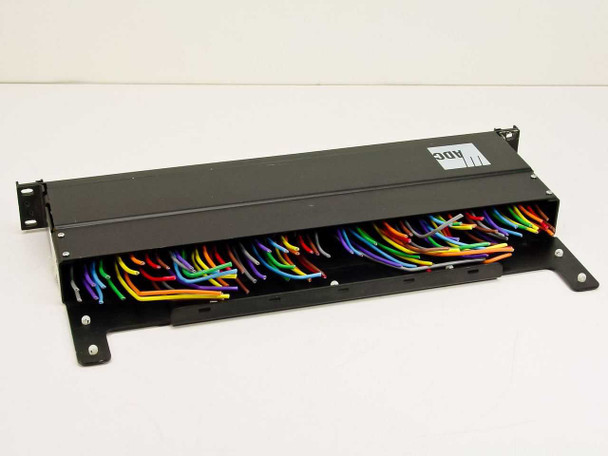

  • ADC BJF307-4MKIIHN patch bay – rear three-quarter view showing dense multicolor pre-wired wire harness

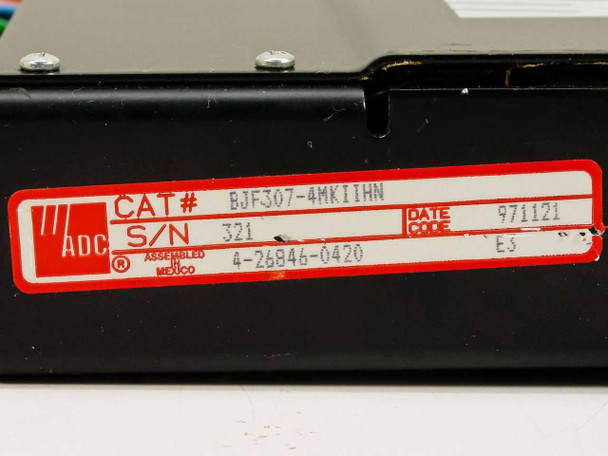

  • ADC BJF307-4MKIIHN label showing CAT# BJF307-4MKIIHN, S/N 321, date code 971121, and part number 4-26846-0420
  • ADC BJF307-4MKIIHN front panel close-up showing TT bantam jack rows labeled PROG 1, PROG 2, PROG 3, AUDIO INPUT, and ADA INPUT

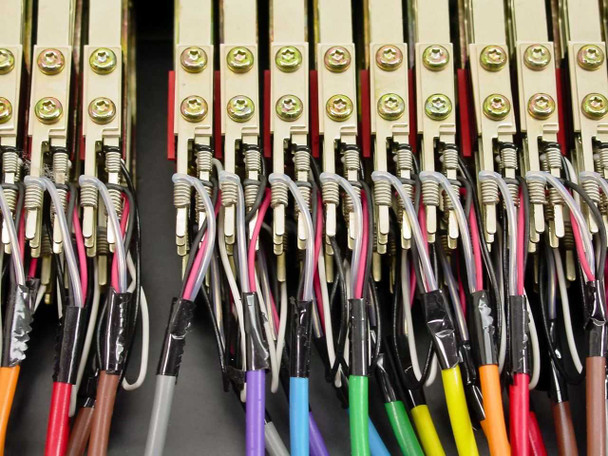

  • ADC BJF307-4MKIIHN rear wiring close-up showing gold terminal strips with multicolor soldered wire terminations
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

ADC BJF307-4MKIIHN Broadcast Audio Patch Bay 1U Rackmount TT Bantam Jack

A 1U rackmount audio patch bay with Bantam TT jack connectors designed for broadcast studio audio routing and signal management. Features two rows of jacks configured for program inputs and ADA audio inputs.

Specifications & What's Included

  • Model: BJF307-4MKIIHN / 4-26846-0420
  • Form Factor: 1U Rackmount
  • Connector Type: TT Bantam Jack
  • Jack Configuration: PROG (1–3) and ADA Audio Inputs, 2 rows
  • Application: Broadcast Studio Audio Routing
  • Includes pre-wired rear wire harness with multicolor wiring intact
  • Manufactured: Mexico (Date Code: 971121)

Applications

Patch bays of this type are used in broadcast studios for audio signal routing and switching. TT Bantam jack systems are common in professional broadcast environments for managing multiple audio feeds between mixing consoles, tape machines, and transmission equipment. These units handle both program audio signals and auxiliary inputs, allowing operators to reconfigure signal paths without rewiring.

Condition: Used
This ADC BJF307-4MKIIHN broadcast audio patch bay has been inspected and appears to be in good condition. The chassis and front panel are intact with no visible cracks or major damage. The TT bantam jack rows and port labeling strips are present and legible. The rear wire harness is fully intact with multicolor wiring terminating on the gold screw-terminal strips. Normal light surface wear consistent with rack use is present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ADC
Model:
BJF307-4MKIIHN
MPN:
BJF307-4MKIIHN
Secondary Model:
4-26846-0420
Type:
Broadcast Audio Patch Bay
SKU:
39658
Form Factor:
1U Rackmount
Connector Type:
TT Bantam Jack
Jack Configuration:
PROG (1–3) and ADA Audio Inputs
Number of Rows:
2
Application:
Broadcast Studio Audio Routing
Condition:
Used – Inspected
Country/Region of Manufacture:
Mexico
Seller Notes:
Unit includes pre-wired rear wire harness with multicolor wiring intact.
Date Code:
971121
Condition Notes:
ADC BJF307-4MKIIHN broadcast audio patch bay. Inspected, in good condition. Chassis and jack rows intact, rear wire harness present and complete. Normal light surface wear from rack use.
